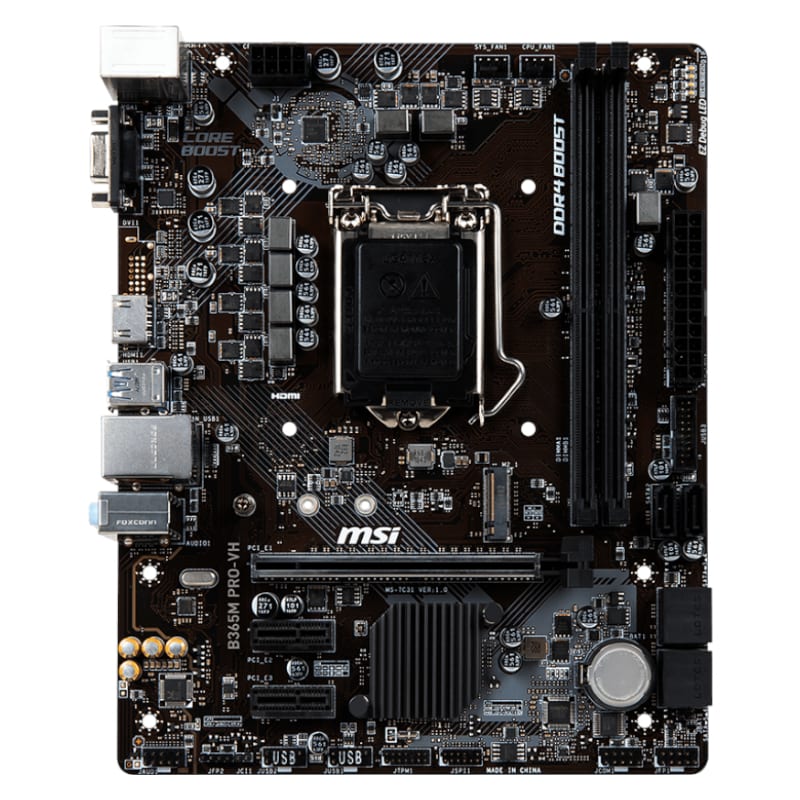

MSI B365M PRO-VH Intel 1151 Micro-ATX Motherboard – Black

MSI motherboards have been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. Each MSI motherboard is built based on the ...specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes. MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience. Features:
– Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
– Supports DDR4 Memory, up to 2666 MHz
– Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
– Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
– Audio Boost: Reward your ears with studio grade sound quality.
– EZ Debug LED: Easiest way to troubleshoot.
– X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device. Specifications:
– Socket: 1151
– CPU (Max Support): i9
– Chipset: Intel® B365 Chipset
– DDR4 Memory: 2666/ 2400/ 2133
– Memory Channel: Dual
– DIMM Slots: 2
– Max Memory (GB): 32
– PCI-E x16: 1
– PCI-E Gen: Gen3
– PCI-E x1: 2
– SATAIII: 6
– M.2 Slot:1
– RAID: 0/1/5/10
– TPM (header): 1
– LAN: 1x Realtek RTL8111H
– USB 3.1 ports (Front): 2(Gen1, Type A)
– USB 3.1 ports (Rear): 4(Gen1, Type A)
– USB 2.0 ports (Front): 4
– USB 2.0 ports (Rear): 2
– Serial ports(Front): 1
– Audio ports (Rear): Realtek® ALC887 Codec
– VGA: 1
– HDMI: 1
– DirectX: 12
– Form Factor: Micro-ATX
– Operating System: Support for Windows® 10 64-bit What’s in the box
1 x MSI B365M PRO-VH Intel 1151 Micro-ATX Motherboard – Black
2 x SATA cables 15cm
1 x Driver CD
1 x IO Shield
1 x Quick Install Guide
