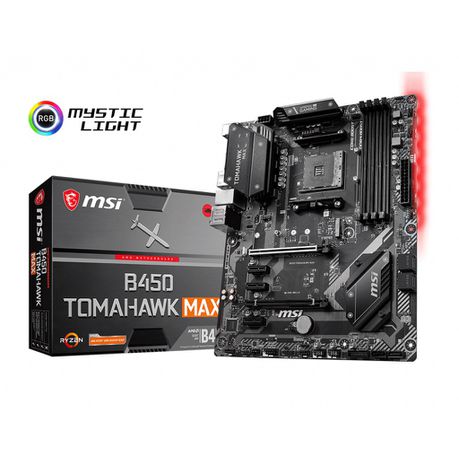

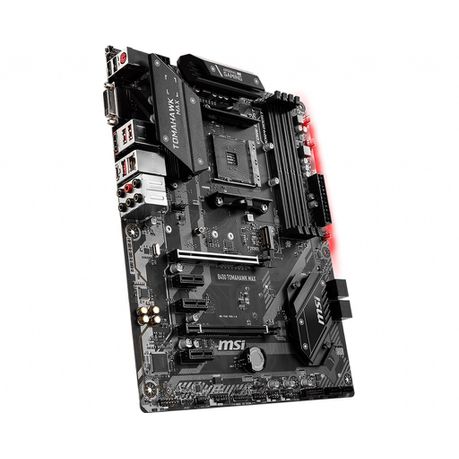

MSI B450 TOMAHAWK MAX

Processor:
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors: for Socket AM4

See supported Processors:

Chipset:
AMD B450 Chipset:

Memory:
– 4 x DDR4 Memory: Slots:, support up to 64GB
– Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
– For AMD Ryzen Gen3 (R5/R7/R9)
– Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)
– For AMD Other CPU
– Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
– Dual channel Memory: architecture
– Supports non-ECC UDIMM Memory:
– Supports ECC UDIMM Memory: (non-ECC mode)

See supported Memory:

Slots:
– 1 x PCIe 3.0 x16 slot (PCIE1)
– 1st, 2nd and 3rd Gen AMD Ryzen Processors: support x16 speed
– Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors: support x8 speed
– 1 x PCIe 2.0 x16 slot (PCIE4, supports x4 mode)1
– 3 x PCIe 2.0 x1 Slots:1
– PCIE4 will run x2 speed when installing devices in PCIE2/ PCI_E3 slot.

ONBOARD GRAPHICS:
– 1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hz1,2
– 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160@30Hz, 2560×1600@60Hz1,2
– Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors:Maximum shared Memory: of 2048 MB

MULTI-GPU:
Supports 2-Way AMD CrossFire Technology

Storage:
AMD CPU
– 2 x SATA 6Gb/s ports1
– 1 x M.2 slot (Key M)1
– Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s
– Supports 2242/ 2260/2280/ 22110 Storage: devices

AMD B450:
– 4 x SATA 6Gb/s ports
– SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

RAID:
AMD B450
– Supports RAID 0, RAID1 and RAID 10 for SATA Storage: devices

USB:
AMD B450
– 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
– 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
– 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
– 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD CPU:
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio:
– Realtek ALC892 Codec
– 7.1-Channel High Definition Audio:

LAN:
1 x Realtek 8111H Gigabit LAN controller

Internal Connections:
– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
– 1 x 4-pin CPU fan connector
– 1 x 4-pin water-pump-fan connector
– 4 x 4-pin system fan connectors
– 1 x TPM module connector
– 1 x Front panel Audio: connector
– 2 x System panel connectors
– 1 x Chassis Intrusion connector
– 1 x Serial Port connector
– 1 x Clear CMOS jumper
– 2 x 5050 RGB LED strip 12V connectors

Back Panel Ports:
– Flash BIOS Button
– PS/2 Combo Port
– USB 3.2 Gen1
– LAN Port
– HD Audio: Connectors
– USB 2.0 Port
– DVI-D Port
– HDMI Port
– USB 3.2 Gen2 Type A+C
– MSI B450 TOMAHAWK MAX Back Panel Ports:

Domensions:
– 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
– ATX Form Factor

Mounting:
9 Mounting: holes

Operating System:
– Support for Windows 10 64-bit
– Support for Windows 7 64-bit
– To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

What’s in the box
B450 Tomohawk Max Motherboard, Sata Cables x 2
Driver disk x1
