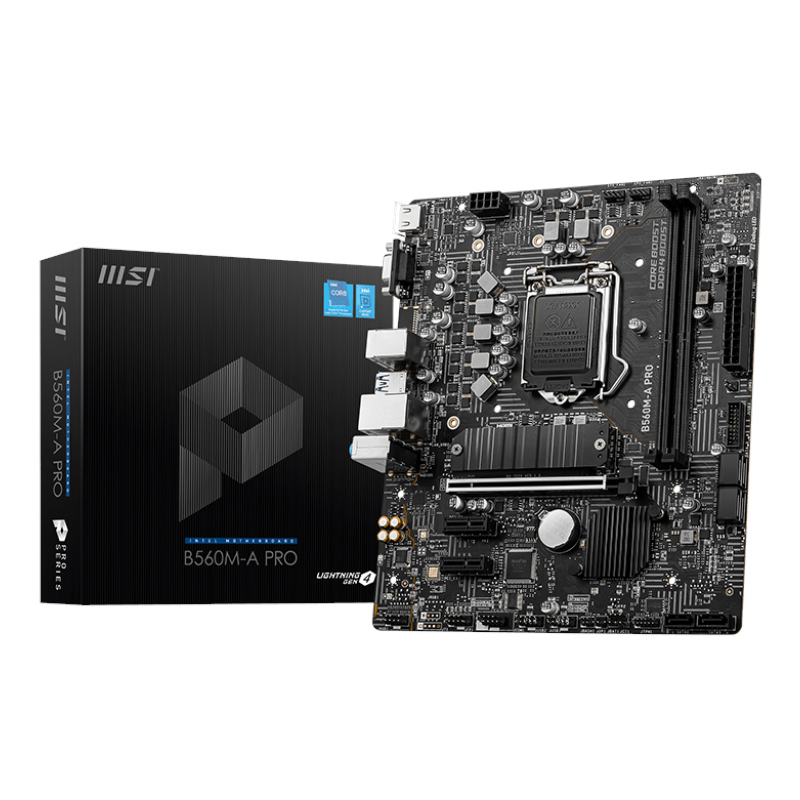

MSI B560M-A PRO Intel 1200 Micro-ATX Motherboard

MSI PRO Series motherboards help users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. The user-friendly design makes it easy to install ...your own motherboard without any issue. MSI PRO Series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy the extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. Features:
– Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
– Supports DDR4 Memory, up to 5200(OC) MHz
– Core Boost: With premium layout and digital power design to support more cores and provide better performance.
– DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
– Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
– 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
– Audio Boost: Reward your ears with studio grade sound quality
– Steel Armour: Protecting VGA cards against bending and EMI for better performance, stability and strength. Specifications:
– Socket: 1200
– CPU (Max Support): i9
– Chipset: Intel® B560 Chipset
– DDR4 Memory: 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & – POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz
– Memory Channel: Dual
– DIMM Slots: 2
– Max Memory (GB): 64
– PCI-E x16: 1
– PCI-E GEN: Gen4
– PCI-E x1: 2
– SATAIII: 6
– M.2 Slot: 1
– TPM (Header): 1
– LAN: 1x Realtek 8125B 2.5Gbps LAN Controller
– USB 3.2 ports (Front): 2(Gen 1, Type A)
– USB 3.2 ports (Rear): 4(Gen 1, Type A)
– USB 2.0 ports (Front): 4
– USB 2.0 ports (Rear): 2
– Audio ports (Rear): Realtek ALC897 Codec
– VGA: 1
– HDMI: 1
– Direct X: 12
– Form Factor: Micro-ATX
– Operating System: Support for Windows® 10 64-bit What’s in the box
1 x MSI B560M-A Pro Intel 1200 Micro-ATX Motherboard – Black
1 x I/O Shield
2 x SATA cables
1 x M.2 Screws/Standoff Sets
1 x Driver DVD
1 x Quick Install Guide
