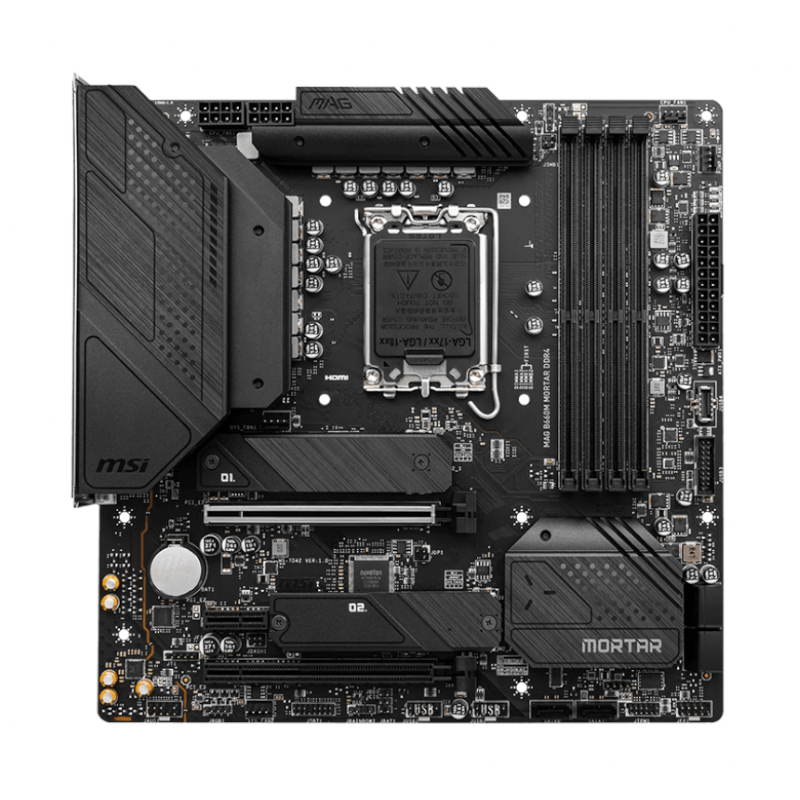

MSI MAG B660M MORTAR Intel 1700 Micro-ATX Motherboard

Utilizing 12th Gen Intel processors, MSI B660 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions.

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Features :

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for a high-performance system and non-stop works
Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
Audio Boost: Reward your ears with studio grade sound quality
Multi-GPU: With Steel Armor PCIe slots. Supports AMD Crossfire™

Specifications :

Socket: 1700
CPU (Max Support): i9
Chipset: Intel® B660 Chipset
DDR4 Memory: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 128
PCI-E x16: 2
PCI-E x1: 1
SATAIII: 6
M.2 Slot: 2
RAID: 0/1/5/10
LAN: 1x Realtek® 8125BG 2.5G LAN
USB 3.2 ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 ports (Rear): 1(Gen 2×2, Type C), 3(Gen 2, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 4
Audio ports (Rear): Realtek® ALC1200 Codec
DisplayPort: 1
HDMI: 1
DirectX: 12
Form Factor: mATX
CrossFire: Yes
Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit

What’s in the box
1 x MSI MAG B660M Mortar Intel 1700 M-ATX Motherboard – Black
2 x SATA cables
1 x Driver DVD
2 x EZ M.2 Clips
1 x Quick Install Guide
