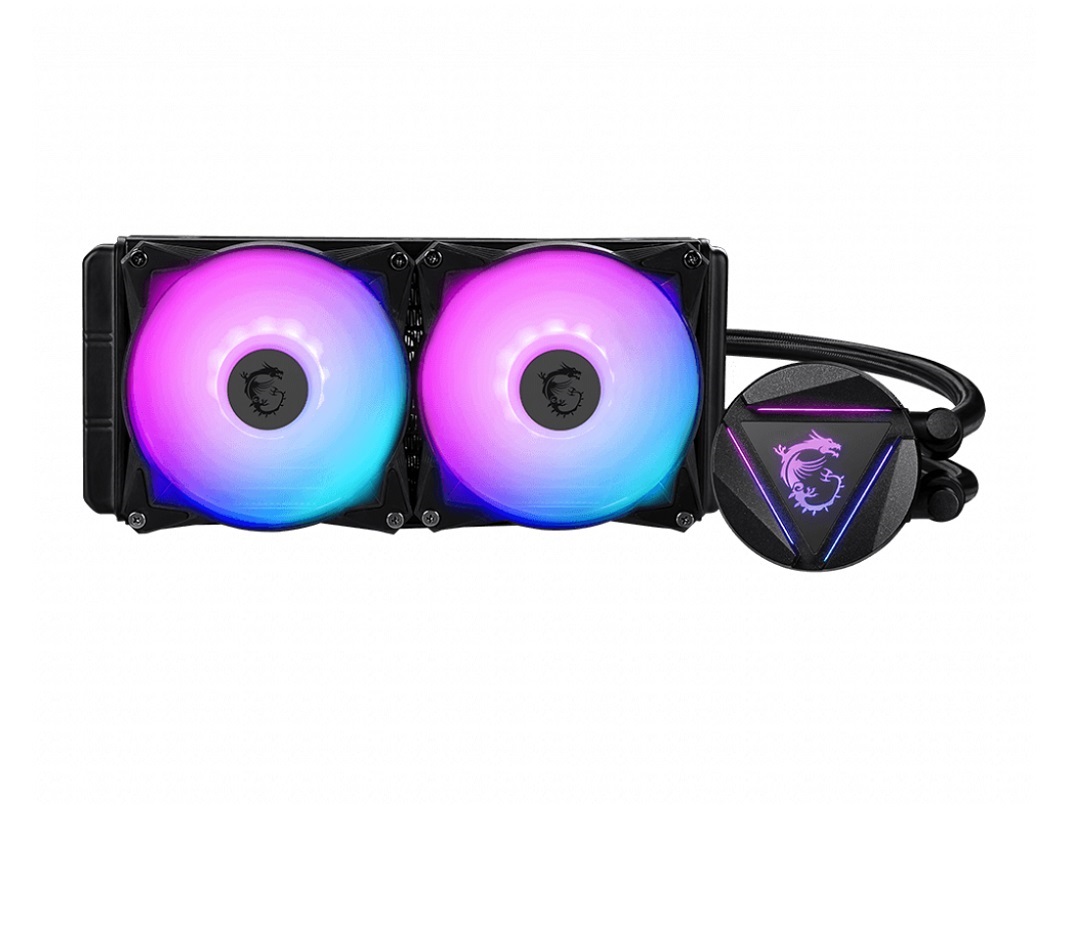

MSI MAG Coreliquid 240R V2 ARGB AIO Liquid CPU Cooler

The newly introduced mag coreliquid has everything you’re looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like Argb lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the mag coreliquid is designed with the end goal in ...mind: to provide effective cooling without any compromise.
Rotatable blockhead
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
Radiator pump design
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.
Pump motor resonance elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
High thermal dissipation.
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
Evaporation vaporation proof tubing.
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
Diy 2.0 – Integrating with the system environment.
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. Specifications:
Number of fans: 2
Fan speed: 500 ~ 2000 Rpm
Fan bearing: Two Ball Bearing
Fan air pressure: 0.23 ~ 2.39 mmH2O
Fan noise level: 14.3 ~ 34.3 dBA
Fan air flow: 21.63 ~ 78.73 CFM
Fan lighting: ARGB
Pwm mode: Yes
Fan cable length (5V Argb / Pwm Cable): 550 / 350mm; 21.65 / 13.78 inches
Radiator dimensions: 274mx 227mm / 10.79 x 4.7 x 1.06 inches
Radiator water cooling pipe length: 400mm / 15.75 inches
Block lighting: ARGB
Pump speed: 4200 RPM
Socket: Lga 1150/1151/1155/1156/1200
Lga 1366/2011/2011-3/2066
Am4/Fm2+/Fm2/Fm1/Am3+/Am3/Am2+/Am2 What’s in the box
Quick installation guide.
radiator
fans
mounting kit
