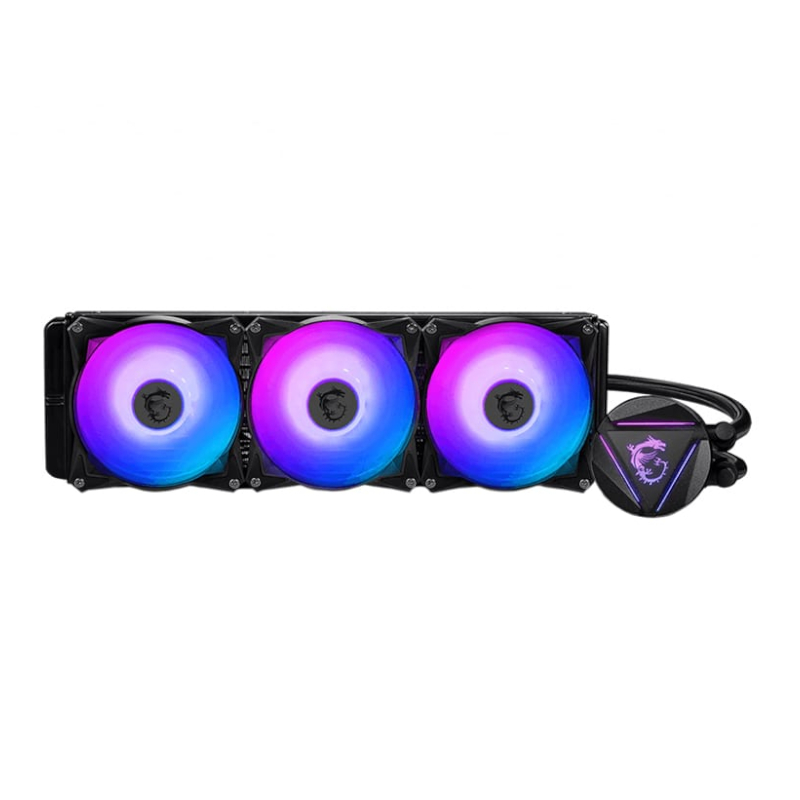

MSI MAG Coreliquid 360R V2 ARGB AIO Liquid CPU Cooler

The MSI MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers. The newly introduced MAG CORELIQUID Series has everything you’re looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely ...effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID Series is designed with the end goal in mind: to provide effective cooling without any compromise. The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source. A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop. Constructed with three layers of netted plastic tubing and a reinforced mesh exterior. Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. Features :
– Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
– The pump has been integrated into the radiator for sound dampening and noise reduction
– Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
– A split liquid pathway through the radiator rapidly dissipates heat. The cooled liquid is then pumped back into the loop
– Intel and AMD CPU Compatible
– LGA1700 socket support
– AMD socket AM5 support Specifications :
– Number of Fans: 3
– Fan Dimensions: 12 x 12 x 2.5 cm
– Fan Speed: 500 ~ 2000 RPM
– Fan Power Consumption: 1.8 W
– Fan Rated Current: 0.15 A
– Fan Rated Voltage: 12V DC
– Fan Bearing: Two Ball Bearing
– Fan Air Pressure: 0.23 ~ 2.39 mm H2O
– Fan Noise Level: 14.3 ~ 34.3 dBA
– Fan Air Flow: 21.63 ~ 78.73 CFM
– Fan Lighting: ARGB
– Fan ARGB Cable Connector: Pin + Socket
– PWM Mode: Yes
– Fan Cable Length (5V ARGB / PWM cable): 55 / 35 cm
– Radiator Material: Aluminum
– Radiator Dimensions: 39.4 x 12 x 2.7 cm
– Radiator Water Cooling Pipe Length: 40 cm
– Block Dimensions: 8 x 6.6 x 4.8 cm
– Block Lighting: ARGB
– Block ARGB 5V Cable Length: 40 cm
– Block ARGB Cable Connector: Pin + Socket
– Pump Load Current: 0.34 A
– Pump Rated Voltage: 12V DC
– Pump Speed: 4200 RP
– Pump Power Consumption: 4.08W
– Intel Socket: LGA 1150/1151/1155/1156/1200/1366/2011/2011-3/2066/1700
– AMD Socket: AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2/SocketTR4/sTRX4/SP3 What’s in the box
1 x MSI MAG Coreliquid 360R V2 ARGB AIO Liquid CPU Cooler – Black
1 x 1 to 3 Fan PWM cable
1 x PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan Cable
1 x Noise Reducer Cable
1 x Quick Installation Guide
