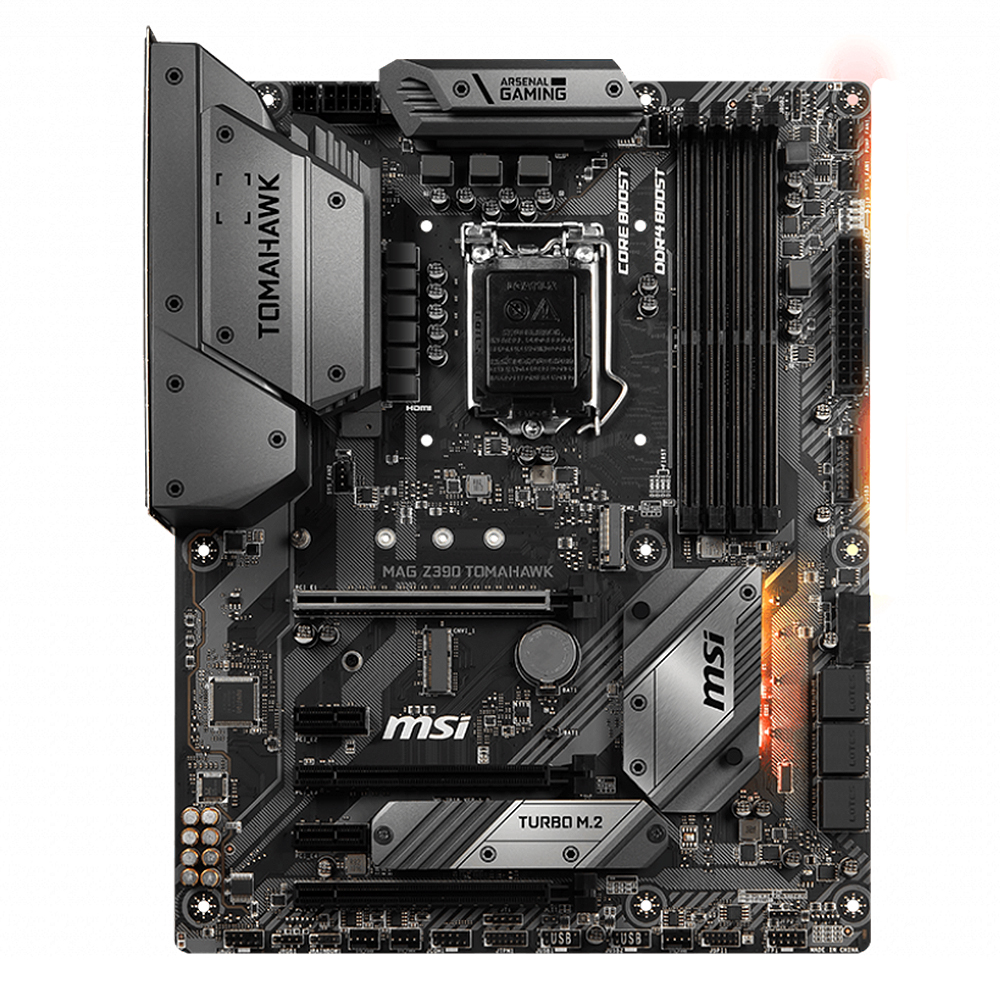

MSI MAG Z390 TOMAHAWK Motherboard

MSI MAG Z390 TOMAHAWK Motherboard Military style with pre-installed IO shielding, extended heatsink design and M.2 Shield Frozr for better thermal solution, plus dual Intel LAN, Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Twin Turbo M.2 and USB 3.1 Gen2 connector. Features:
– Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
– Supports DDR4 Memory, up to 4400(OC) MHz
– Integrated I/O design: Pre-installed I/O Shielding for convenient installation. Extended Heatsink Design ...ensures even high-end processors to run in full speed.
– Premium Network Connection: Dual Intel LAN for both intranet and internet, Intel CNVi Ready
– Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Intel Turbo USB 3.1 GEN2
– Set Core Power Free: Core Boost, 8+4 pin CPU power connector, DDR4 Boost MYSTIC LIGHT:
16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. Inspired by the military concept, MAG Z390 TOMAHAWK is equipped with a holistic integrated I/O cover, pre-installed IO shielding and extended heatsink design for better protection and the best thermal solution. MAG Z390 TOMAHAWK perfectly demonstrates stronger, tougher and heavier sense with durability for gamers to dominate the game. Pre-installed I/O Shielding:
Better EMI protection and more convenience for installation Dual Intel LAN Dual premium network solution for both Intranet and Internet, offering a smooth gaming experience for effective network connection. Intel CNVi Ready:
– Supports Intel: CNVi Wi-Fi, IEEE 802.11 AC wave2. M.2 SHIELD FROZR:
– Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster. Intel Turbo USB 3.1 Gen2:
– Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speeds. Extended Heatsink Design:
– MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed. Core Boost:
– With premium layout and fully digital power design to support more cores and provide better performance. DDR4 Boost:
– Advanced technology to deliver pure data signals for the best gaming performance and stability. LAN Intel:
– I219-V Gigabit LAN + Intel
– I211-AT LAN PS/2 Keyboard/Mouse port:
– 4 x USB 3.1 (Gen2, A+C) + 4 x USB 3.1 (Gen1) + 6 x USB
– 2.0, Gbit LAN, 7.1 audio ports
– Optical S/PDIF out
– Display Port
– HDMI Specifications:
– Model Name MAG Z390 TOMAHAWK
– CPU Support Supports 9th/ 8th Gen Intel
– Core / PentiumGold /Celeronprocessors
– CPU Socket LGA 1151
– Chipset Intel: Z390 Chipset
– Graphics Interface 3 x PCI-E 3.0 x16 slots
– Supports 2-way AMDCrossFire Technology
– 4 x USB 3.1 (Gen2, A+C) + 4 x USB 3.1 (Gen1) + 6 x USB2.0
– Display Interface HDMI, DisplayPort Requires Processor Graphics
– Memory Support 4 DIMMs, Dual Channel DDR4-4400(OC)
– Expansion Slots 2 x PCI-E 3.0 x1 slots, 1 x M.2 supports Intel
– CNVi
– Storage 2 x M.2 slots, support Intel
– Optane Technology
– 6 x SATA 6Gb/s
– USB Ports 4 x USB 3.1 (Gen2, A+C) + 4 x USB 3.1 (Gen1) + 6 x USB2.0
– Audio 8-Channel (7.1) HD Audio with Audio Boost What’s in the box
MSI Z390 Motherboard
User Guide
Quick Install Guide
Driver CD
RGB Cable
SATA Cables
I/O Shield
