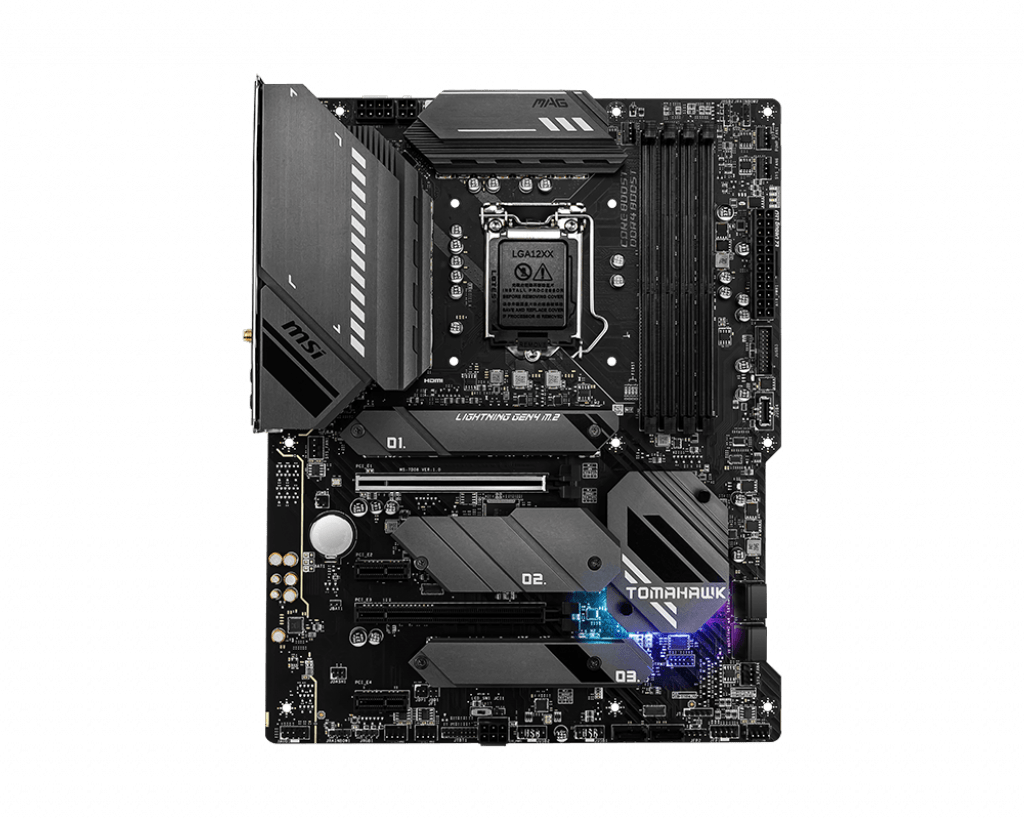

MSI MAG Z590 TOMAHAWK WIFI Intel ATX Motherboard

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with MSI motherboards. High-performance MSI motherboards ...are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersive one. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. FEATURES:
• Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5333(OC) MHz
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for a high-performance system and non-stop works
• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
• Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Multi-GPU: With Steel armour PCIe slots. Supports 2-Way AMD Crossfire™ SPECIFICATIONS:
• CPU (Max Support): i9
• Socket: 1200
• Chipset: Intel® Z590 Chipset
• DDR4 Memory: 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E X16: 2
• PCI-E X1: 2
• SATAIII: 6
• M.2 Slot: 3
• RAID: 0/1/5/10
• LAN: 1x Intel® I225-V 2.5G LAN
• Wi-Fi & Bluetooth: Intel® Wi-Fi 6E AX210
• USB 3.2 Ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)
• USB 3.2 Ports (Rear): 1(Gen 2×2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A)
• USB 2.0 Ports (Front): 4
• USB 2.0 Ports (Rear): 2
• Audio Ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
• DisplayPort: 1
• HDMI: 1
• DirectX: 12
• Form Factor: ATX
• Crossfire: Yes
• Operating System: Support for Windows® 10 64-bit What’s in the box
• MSI MAG Z590 TOMAHAWK WIFI Intel ATX Motherboard x1
• Wi-Fi Antenna x1
• MAG Stickers x1
• Cable Stickers x
• USB Drive x1
• SATA Cables x2
• M.2 Standoff Sets/screws x3
• User Manual x1
• Quick Installation Guide x1
