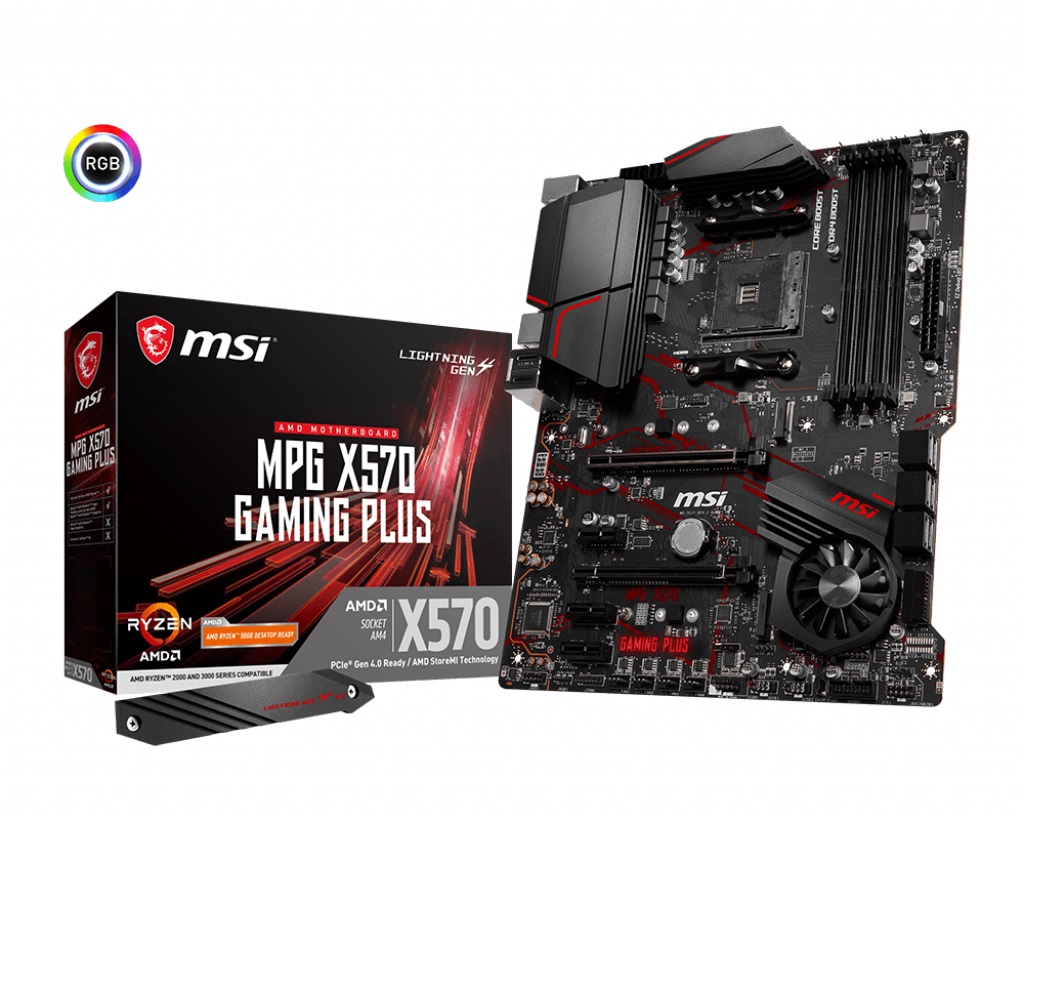

MSI MPG X570 Gaming Plus AMD AM4 ATX Gaming Motherboard

Diy Friendly
MSI motherboards have been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. Stay Cool And Sustain Performance
Cooling is essential for a high performance PC to sustain intense workloads. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan ...headers with full fan speed control lets builders tune their system cooling the way they like it. Larger Heatsink For More Cooling
Heatsinks on top of the power delivery circuits help to dissipate excessive heat. Extended heatsinks have even more surface area for more thermal dissipation. M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR. Prevent SSD throttling with thermal design that includes a heatsink that extends across the motherboard. Control Fans In Bios And Software
Total Fan Control lets you check and manage temperature and fan speeds within an easy-to-use graphical interface. Set up to four CPU temperature targets and the motherboard and fan speeds will be adjusted automatically. Fan Autodetect DC Or PWM Mode
MSI fan headers can automatically detect if a fan needs to run in DC or PWM mode, streamlining the fan tuning experience. Optimized For Water Cooling
A dedicated water pump PIN header provides up to 2A current and can control pump speed. Supports the most popular All-In-One and custom water cooling solutions on the market. Frozr Heatsink Design
Higher performance generates more heat. Thermal solution is very important to X570 chipset which featured latest Gen4 bandwidth. MSI motherboards featured the patented fan design to provide best performance for enthusiast gamers and prosumers. Propeller Blade Technology
Tremendous airflow increases more than 20% and brings better cooling effect. Better Airflow Benefits More Than Chipset Thermal
World’s fastest SSDs can start to lower performance when getting hot. The airflow from Frozr Heatsink Design also benefits M.2 cooling to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. The Perfect Fan Location
MSI X570 motherboards provide the ultimate cooling solution for the enthusiast, the Frozr Heatsink design not only provides maximum airflow, but also maintain the perfect fan location even installed the heavy graphics card, keep your system runs cool without any overheating issue. Nattier Way On Cooling Control
MSI FROZR Heatsink design combines the power of MSI’s exclusive ZERO FROZR and AI tuning technology to auto-adjust fan speed according to the chipset’s temperature. You can also select from one of three modes (Boost / Balance / Silence) depending on your preferences via Dragon center or MSI UEFI BIOS and enjoy the best performance without compromise. Troubleshooting Friendly Design
MSI motherboards have been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup. Easy Bios Recovery With Flash Bios Button
Run into trouble when updating your BIOS? Simply flash the old BIOS version back and continue gaming within minutes with Flash BIOS Button. Flash BIOS Button even works without a CPU, memory or graphics card installed! Troubleshooting Friendly Design
MSI motherboards are designed with both physical and device compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products. Ryzen Processor Support
MSI X570 motherboards support latest generation Ryzen processors from AMD with updated features and capabilities. Ascend to new heights with a platform built for both creators and gamers. Memory Compatibility & Testing
Get stability out of MSI’s extensive and aggressive memory testing and optimization. Working alongside partnered brands like Corsair, Crucial, Kingston, G.SKILL, and many more, MSI has worked hard to get the most out as many memory configurations as possible Lightning Gen 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armour design and server grade PCB, you can enjoy next-gen devices without any compromise. Performance Enhancing Apps
Complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment. MSI App Player
Developed under an exclusive partnership with BlueStacks, the MSI APP Player brings seamless mobile gaming experiences to PCs. Leverage the advantages of mouse and keyboard controls, better graphics, and multi-tasking for mobile gaming supremacy. Dragon Center
MSI Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities. Mystic Light
Create your own colourful masterpiece with ease. Splash any colour you want with just a few clicks! Click Bios 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records! -GAME BOOST – Quickly overclock your CPU ith a single button for more performance.
-A-XMP – Choose from a preset A-XMP profile and automatically overclock compatible DDR memory.
-M-FLASH – Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
-HARDWARE MONITOR – Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
-TOTAL FAN CONTROL – Monitor and manage fan speeds for system and CPU fans.
-SECURE ERASE+ – Wipe an SSD with an optimized formatting algorithm and enjoy an SSD with maxed free space!
-MEMORY TRY IT – Get extreme speed out of your system memory and get more performance.
-M.2 Genie – Quickly and easily set up a RAID 0 array for M.2 and U.2 SSDs with this automated utility.
-SEARCH & FAVORITES – A permanent search & favourite option in the top right corner moves you through the BIOS menus quickly. Enhanced Performance High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. High Power Efficiency
Power on your Ryzen processor with optimized circuit layouts and high-quality power delivery parts for an incredibly stable operation. Core Boost
Core Boost is the latest development in the MSI motherboard CPU power transmission system. The high-quality power delivery component area retained on the optimized circuit design produces an efficient power system that delivers accurate current to the CPU. 1-Second Overclocking!
MSI Game Boost provides easy overclocking, giving you a performance boost from the preset profile. Fast And Future-Ready Storage
Connect any ultra-fast storage device and get into the game sooner. Boost Your Storage Performance
Enabling the Storage Boost tool will automatically check and optimize SSDs, keeping them fast with maximized storage performance. Lightning Gen 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI X570 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. AMD StoreMI
All MSI X570 motherboards are shipped with StoreMI, the new AMD SSD technology to improve storage performance. This tool helps create a virtual SSD by blending capacity storage, treats flash as primary storage and optimizes data access with monitoring continuously. All these functions can enhance read/write speed for active data and provide fast boot times and application start-up. Easy Raid Setup With M.2 Genie
The M.2 Genie utility takes the work out of setting up M.2 SSDs in a RAID 0 array. Drive your data transfer to extreme speeds without the challenge of a tricky setup and configuration. Maximize Your USB Device Performance
Plug in and start moving files lightning fast with high-speed USB, supported by all the latest connectors and boost tools. More Stability With AMD Turbo USB 3.2 Gen2
The latest USB standards and protocols are supported including USB 3.2 GEN2. IN-GAME ADVANTAGE MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one. Sound That Pulls You Into The Game
Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtaking, gaming-changing sound. Isolated Audio Design
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated. Separated Audio Layers for Clean Left & Right Channels
Audio circuits laid on separate layers in the PCB ensure equally pristine sounding audio for both left and right audio channels. Dedicated Headphone Amplifier That Auto-Detects Impedance
A dedicated headphone can drive audiophile headphones up to 600? impedance, delivering studio-grade sound quality from your gaming PC. Audio Boost 4 automatically detects the optimal impedance and adjusts the output for the best sound quality. Exhilarating and Inspiring
Each MSI motherboard is built based on the specific topic in order to match different tastes and flavours. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral colour, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes. Game in Style
Satisfying gamers with what they really need, MPG GAMING PLUS is equipped with all the crucial gaming weapons. A legacy spirit comes back to life with lightning fast performance enabled by an optimized design and high-quality components. Red GAMING DNA lives on! Mystic Light
Illuminate with MSI Mystic Light and bring the motherboard RGB lighting to life. Choose from millions of colours and sync across compatible devices. Built on Everlasting Quality
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high-performance motherboard. Server Grade PCB
MSI X570 motherboards have adopted server grade PCB to fully support the higher bandwidth and faster transfer speeds of PCI-E Gen 4. Fortify Your System with PCI-E Steel Armor
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. Ultimate Motherboard Protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. Certified for Gaming
MSI motherboards has been built and tweaked for hardcore gaming. Feedback from the world’s best esports players and rigorous testing sessions with demanding PC games has resulted in a motherboard that’s both powerful and reliable. Features:
-Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
-Supports DDR4 Memory, up to 4400+(OC) MHz
-Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory, StoreMI, AMD Turbo USB 3.2 GEN2
-Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
-Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost
-MYSTIC LIGHT: 16.8 million colours / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
-AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
-Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface. Specifications:
-Socket: AM4
-CPU (Max Support): Ryzen 9
-Chipset: AMD® X570 Chipset
-DDR4 Memory: 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE
-Memory Channel: Dual
-Dimm Slots: 4
-Max Memory (Gb): 128
-PCI-E X16: 2
-PCI-E X1: 3
-SATAIII: 6
-M.2 Slot: 2
-Raid: 0/1/10
-TPM (Header): 1
-LAN: 1x Realtek® 8111H Gigabit LAN Controller
-USB 3.2 Ports (Front): 4(Gen1, Type A)
-USB 3.2 Ports (Rear): 4(Gen1, Type A), 1(Gen2, Type A), 1(Gen2, Type C)
-USB 2.0 Ports (Front): 4
-USB 2.0 Ports (Rear): 2
-Serial Ports(Front): 1
-Audio Ports (Rear): 5+ Optical S/PDIF (Realtek® ALC1220 Codec)
-HDMI: 1
-DirectX: 12
-Form Factor: ATX
-Crossfire: Y
-Operating System: Support for Windows® 10 64-bit What’s in the box
1 x MSI MPG X570 Gaming Plus Motherboard
1 x User Manual
