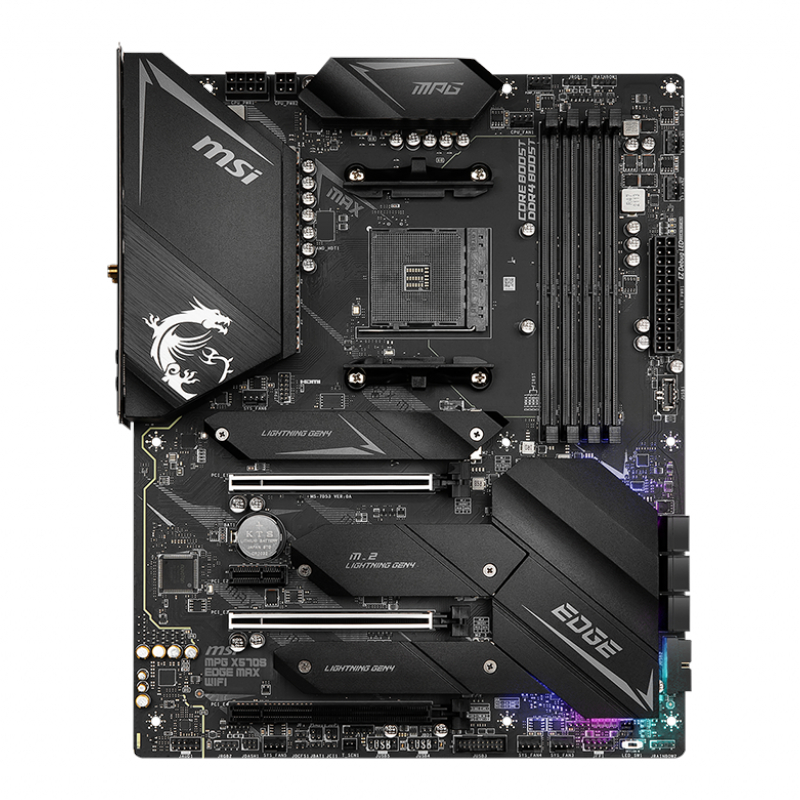

MSI MPG X570S EDGE MAX Wi-Fi AMD AM4 ATX Gaming Motherboard

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards. High-performance MSI ...motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. Features : Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
Supports DDR4 Memory, up to 5300+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
Enhanced Power Design: 12+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Aluminum cover, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high-performance
Mystic Light: 16.8 million colours / 29 effects controlled in one click.
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution
Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade-level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation Specifications Socket: AMD Socket AM4
CPU (Max Support): Ryzen 9
Chipset: AMD® X570 Chipset
DDR4 Memory: 5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) MHz
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 128
PCI-E x16: 3
PCI-E x1: 1
SATAIII: 6
M.2 Slot: 3
RAID: 0/1/10
LAN: 1x Realtek® 8125B 2.5G LAN
WiFi and Bluetooth: Intel® Wi-Fi 6E AX210
USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)
USB 3.2 ports (Rear): 1(Gen 2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 2 (Type-A)
Audio ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
HDMI: 1
DirectX: 12
Form Factor: ATX
Crossfire: Yes
Operating System: Support for Windows® 10 64-bit What’s in the box
1 x MSI MPG X570S EDGE MAX WIFI AM4 ATX Motherboard – Black x1
2 x WiFi Antenna
2 x SATA cables
3 x Standoff Screws/Sets
1 x USB Drive
1 x Cleaning Brush
1 x Thermistor Cable
1 x Rainbow RGB LED Extension Cable
1 x MPG Stickers Pack
1 x Quick Install Guide
1 x User Manual
