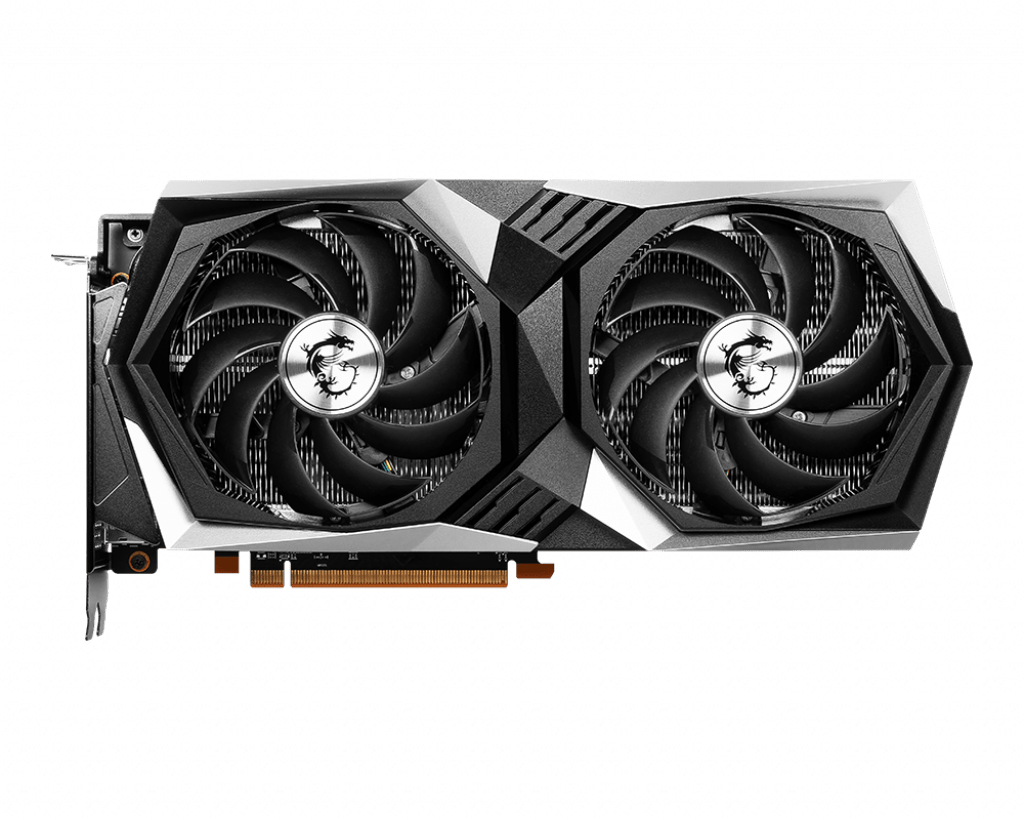

MSI Radeon RX 6600 XT Gaming X 8G 128-Bit GPU Graphics Card

Gear up for incredible 1080p gaming performance. The MSI Radeon™ RX 6600 XT graphics cards, featuring the breakthrough AMD RDNA™ 2 architecture. Engineered to deliver an incredible 1080p gaming experience, the AMD Radeon™ RX 6600 XT powers the next generation of gaming with vivid visuals and elevated experiences. The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games ...with a powerful graphics card that stays cool and silent. Just the way you like it. The TWIN FROZR 8 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions. TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with an outer ring design link that focuses airflow into the updated TWIN FROZR 8 cooling system. DirectX Raytracing (DXR) adds a new level of graphics realism to games through effects like reflections, shadows, and global illumination at real-time frame rates on AMD Radeon™ RX 6000 series graphics, thanks to AMD RDNA™ 2 architecture support for hardware-accelerated raytracing. FEATURES
TWIN FROZR 8
TWIN FROZR 8 offers the perfect balance between cool
temperatures and quiet fans during endless gaming sessions.
TORX FAN 4.0
A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Airflow Control
Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Core Pipe
Precision-machined heat pipes ensure max contact and spread heat along the full length of the heatsink.
Zero Frozr
Zero Frozr is the calm before the storm, keeping fans still and maintaining silence until cooling is needed.
Aluminum Backplate
Thermal pads beneath the sturdy metal backplate provide additional cooling.
Mystic Light
Mystic Light gives you complete control of the RGB lighting for
MSI devices and compatible RGB products.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time. SPECIFICATIONS
Model Name Radeon™ RX 6600 XT GAMING X 8G
Graphics Processing Unit AMD Radeon™ RX 6600 XT
Interface PCI Express® 4.0 x8
Cores 2048 Units
Core Clocks Boost: Up to 2607 MHz
Game: Up to 2428 MHz
Memory Speed 16 Gbps
Memory 8GB GDDR6
Memory Bus 128-bit
Output
DisplayPort x 3 (v1.4)
HDMI x 1 (Supports 4K@120Hz/8K@60Hz and
VRR as specified in HDMI 2.1)
HDCP Support Y
Power consumption 160 W
Power connectors 8-pin x 1
Recommended PSU 500 W or greater
Card Dimension (mm) 277 x 130 x 51 mm
Weight (Card / Package) 886 g / 1473 g
DirectX Version Support 12 API
OpenGL Version Support 4.6
Multi-GPU Technology Y
Afterburner OC Y
Maximum Displays 4
VR Ready Y
Digital Maximum Resolution 7680 x 4320 What’s in the box
1 x MSI Radeon RX6600 XT Gaming X 8G GDDR6 Graphics Card
1 x User manual
