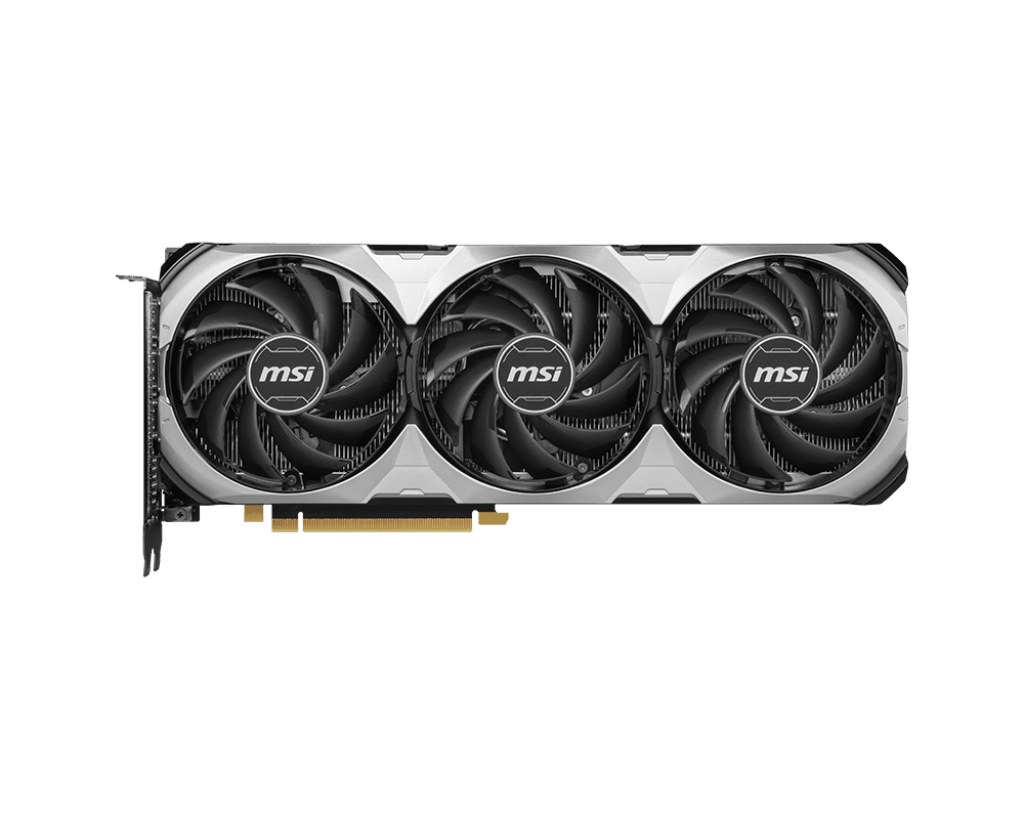

MSI RTX 4060 Ti VENTUS 3X 8G OC Graphics Card

VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.

The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3

Three fans on a huge heatsink ensures a cool and quiet experience.

Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.

Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.

TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.

DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

SPECIFICATIONS

Interface PCI Express Gen 4 x16 (uses x8)
Core Clocks
Extreme Performance: 2550 MHz (MSICenter) Boost: 2535 MHz
CUDA CORES 4352 Units
Memory Speed 18 Gbps
Memory 8GB GDDR6
Memory Bus 128-bit
Output
DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a) HDCP Support Y
Power consumption 160 W
Power connectors 8-pin x 1
Recommended PSU 550 W
Card Dimension (mm) 308 x 120 x 43 mm
Weight (Card / Package) 713 g / 1065 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC technology Y
Digital Maximum Resolution 7680 x 4320

What’s in the box
1 x MSI RTX 4060 Ti VENTUS 3X 8G OC Graphics Card
