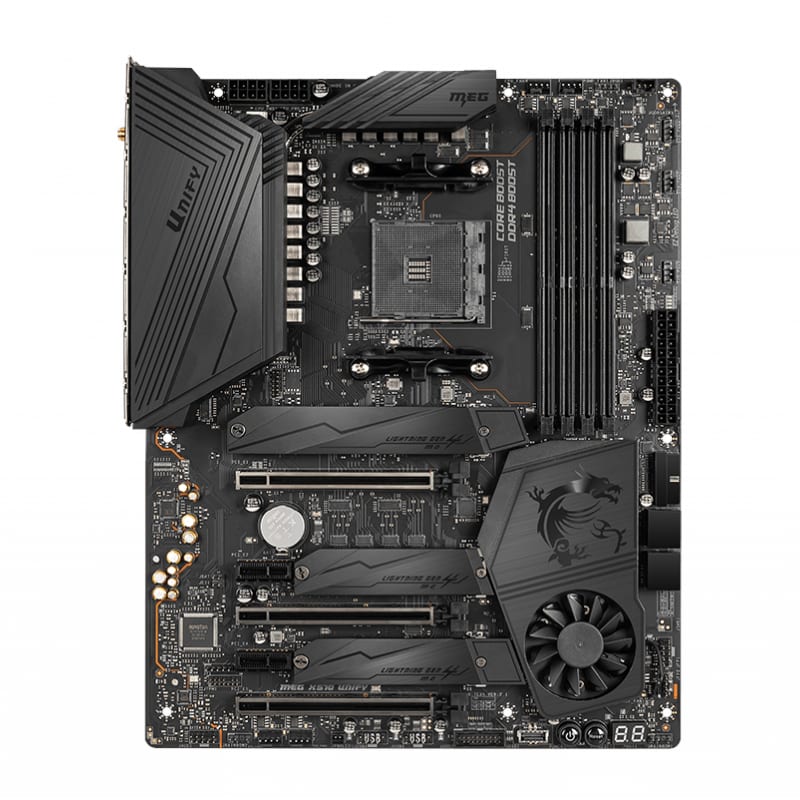

MSI X570 UNIFY AMD AM4 ATX Gaming Motherboard

Unify your power and join the dark side. Win games and set records with 12+2+1 IR digital power, All-Metal Extended Heatsink, Triple Lightning M.2 with Shield Frozr, Audio Boost HD, Game Boost and 2.5G Gaming LAN plus WIFI 6 solution FEATURES:
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
Supports DDR4 Memory, up to 5000+(OC) MHz
Aluminium Cover with Extended Heatsink: All-metal ...extended heatsink cover enlarges the surface of heat dissipation, ensures even high-end processors to run in full speed.
Lightning Fast Game Experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.
2.5G Gaming LAN with Latest Wi-Fi 6 Solution: Onboard 2.5G LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience.
Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
Audio Boost HD: Isolated audio with dedicated processor combining ESS audio DAC with an amplifier, deliver the breathtaking, game-changing sound to create the most exciting gameplay.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation SPECIFICATIONS:
Socket: AM4
CPU (Max Support): RYZEN 9
Chipset: AMD® X570 Chipset
DDR4 Memory: 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /5000+ Mhz by JEDEC and A-XMP OC MODE
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 128
PCI-E X16: 3
PCI-E X1: 2
SATAIII: 4
M.2 Slot: 3
Raid: 36535
TPM (Header): 1
LAN: 1x Realtek® RTL8125 2.5 Gbps LAN controller
USB 3.2 Ports (Front): 1(Gen2, Type C), 4(Gen1, Type A)
USB 3.2 Ports (Rear): 1(Gen2, Type C), 3(Gen2, Type A), 2(Gen1, Type A)
USB 2.0 Ports (Front): 4
USB 2.0 Ports (Rear): 2
Audio Ports (Rear): 5+ Optical S/PDIF (Realtek® ALC1220 Codec)
DirectX: 12
Form Factor: ATX
SLI: Y
Crossfire: Y
Operating System: Support for Windows® 10 64-bit What’s in the box
1 x MSI MEG X570 UNIFY Motherboard
1 x User Manual
