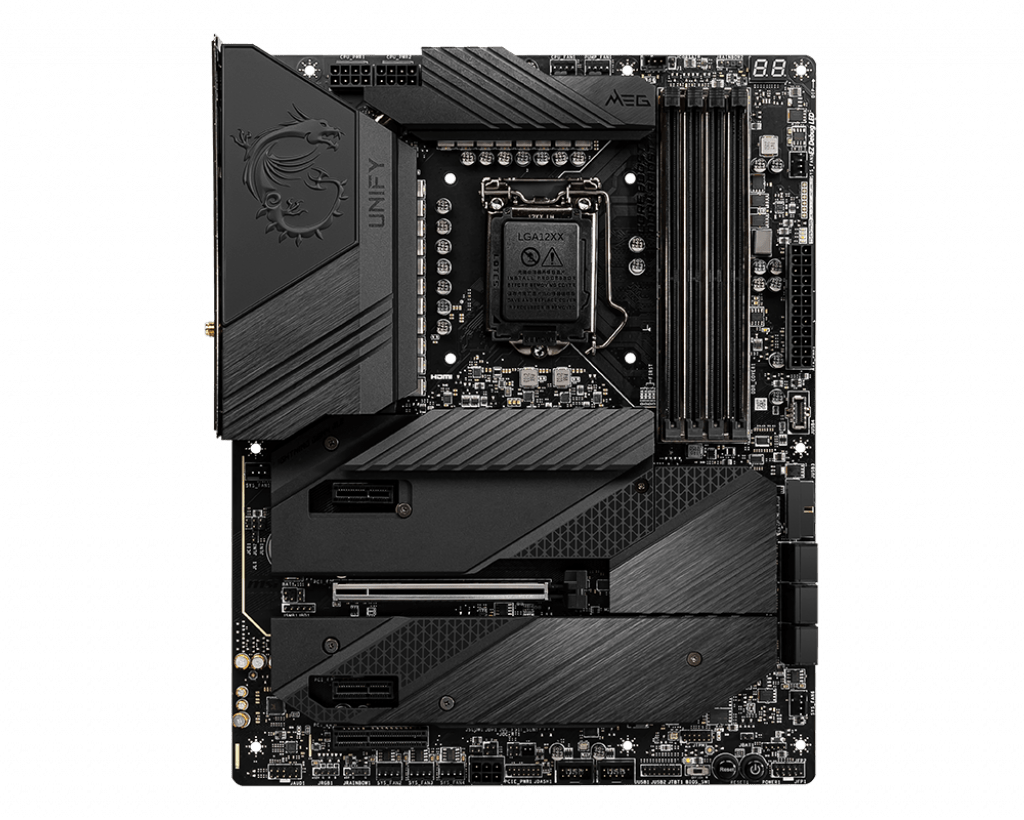

MSI Z590 UNIFY Intel LGA1200 ATX Gaming Motherboard

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with MSI motherboards. High-performance MSI motherboards ...are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersive one. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. FEATURES:
• Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5600(OC) MHz
• Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solutions. Shield Frozr
design keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored
Power Arrangement to unleash the true power of your processors.
• Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the
extreme performance with low temp.
• 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best
online gaming experience.
• Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
• Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
• 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise. SPECIFICATIONS:
• CPU (Max Support): i9
• Socket: 1200
• Chipset: Intel® Z590 Chipset
• DDR4 Memory: 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 1
• PCI-E x4: 1
• PCI-E x1: 2
• SATAIII: 6
• M.2 Slot: 4
• RAID: 0/1/5/10
• LAN: 1x Intel® I225-V 2.5G LAN
• Wi-Fi & Bluetooth: Intel® Wi-Fi 6E AX210
• USB 3.2 Ports (Front): 1(Gen2, Type C), 2(Gen1, Type A)
• USB 3.2 Ports (Rear): 1(Gen2x2, Type C), 1(Gen2, Type A), 8(Gen1, Type A)
• USB 2.0 Ports (Front): 4
• USB 2.0 Ports (Rear): 2
• Audio Ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
• HDMI: 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 10 64-bit What’s in the box
• MSI MEG Z590 UNIFY Intel ATX Motherboard x1
• Wi-Fi Antenna x1
• Cleaning Brush x1
• Screwdrivers x2
• MEG Stickers x1
• Cable Stickers x1
• USB Drive x1
• 1 to 2 RGB LED Extension Y Cable x1
• CorsairRGB LED Extension Cable x1
• Rainbow RGB LED Extension Cable x1
• SATA Cables x4
• M.2 Standoff Sets/screws x4
• User Manual x1
• Quick Installation Guide x1
