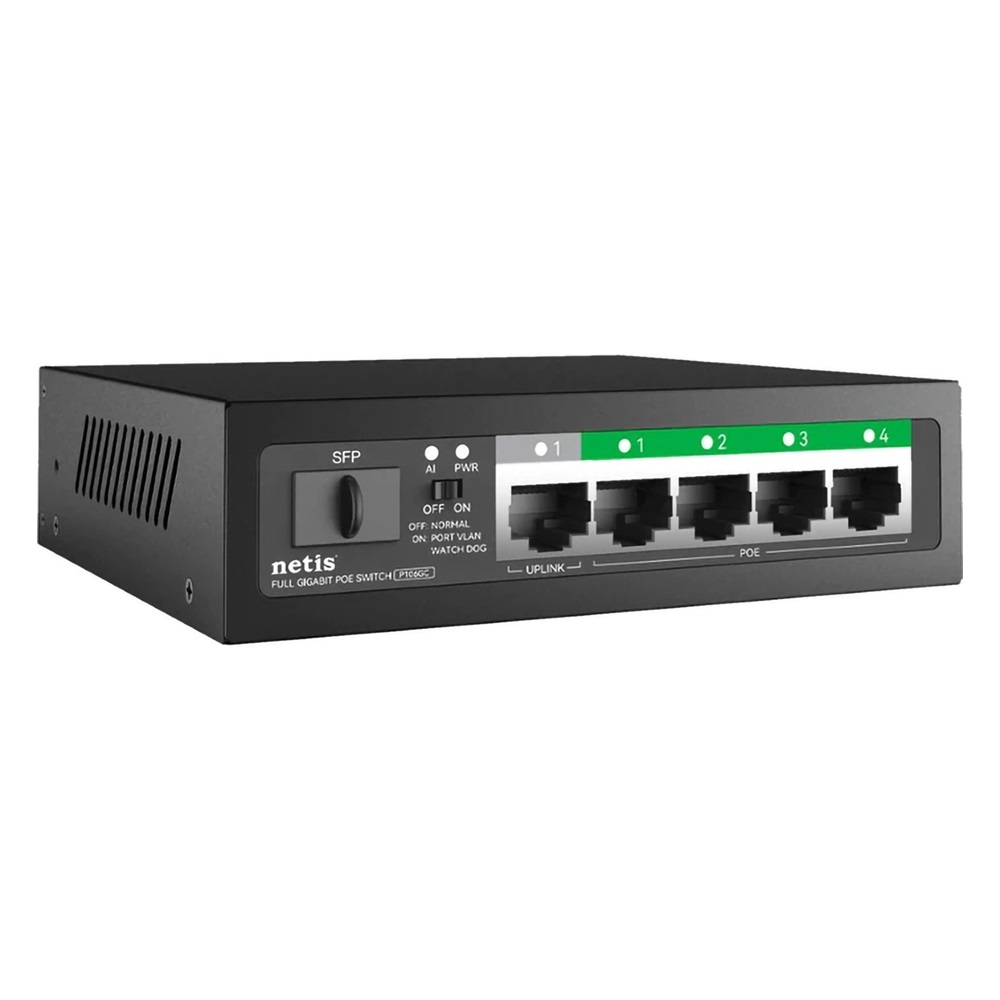

Netis P106GC 6 Port Gigabit PoE Switch

Netis 4GE POE+1GE +1GE SFP Uplink POE Switch P106GC provides a great selection for expanding your home, store or office network. It fully complies with IEEE802.3/802.3u/802.3ab/802.3z Ethernet standards. It provides 4 Gigabit POE RJ45 Ports and 1 Gigabit uplink RJ45 port and 1 Gigabit SFP uplink port.
All POE RJ45 ports support Power over Ethernet function and it can automatically detect and supply power with the IEEE 802.3at/af compliant Powered Devices (PDs).
With the AI ...designed, P106GC will recover unresponsive POE devices automatically, QoS, VLAN will provide smoother network and better using experience. Features: 1x 10 x 10/100/1000Mbps Auto-Negotiation RJ45 ports, 4x 10/100/1000Mbps POE function
Supports PoE power up to 30W for each PoE port,60W for all PoE ports
Supports PoE IEEE 802. 3at/af compliant Powered Device (PD)
IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
12Gbps switching fabric capacity/backplane bandwidth
Supports 2K MAC address table, MAC address auto-learning & auto-aging
Automatically detect and reboot unresponsive POE devices
Support QoS, smoother for video monitoring transmission
Support LAN ports isolation
Steel case, with external power supply Specifications Hardware:
Interface:
4×10/100/1000M POE ports (Data /Power)
1×10/100/1000M uplink RJ45 port (Data)
1×10/100/1000M SFP port Basic function:
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Supports POE IEEE 802. 3af/at compliant Powered Device (PD)
Store-and-forward switching scheme
Support IEEE802.3X full duplex and Backpressure half duplex
MAC address auto-learning & auto-aging Standards:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af/at, Power over Ethernet
IEEE 802.3x Flow Control Mode: Normal switch mode Data Transfer Rate:
Ethernet: 10Mbps (Half-duplex), 20Mbps (Full duplex)
Fast Ethernet: 100Mbps (Half-duplex), 200Mbps (Full duplex)
Gigabit Ethernet :2000Mbps (Full duplex) QoS: Yes VLAN: Yes Switching Capacity: 12G MAC Address Table Size: 2K Jumbo Frame: 2048 byte Environment:
Operation Temperature: 0 C-40 C
Storage Temperature: -40 C-70 C
Operation Humidity: 10%-90% RH Non-condensing
Storage Humidity: 5%-90% RH Non-condensing Power Input POE Standards:
Single port maximum power 30W, whole switch maximum power 60W
Supporting over-current, over-voltage and short-circuit protection.
Supporting Soft Start of High Power PD
Support sequential boot-up
Power Supply Pin:12+/36-
100-240V 1.5A Max(Input)
52V 1.15A Max(Output) Cabling type:
1000Base-TX: Cat 5e or better UTP/STP( 100m)
100Base-TX: Cat 5e or better UTP/STP( 100m)
10Base-TX: Cat 5e or better UTP/STP( 100m) Dimensions (L x W x H): 124mmx115mmx33mm What’s in the box
1x P106GC
1x Power Adapter
1x Quick Guide
