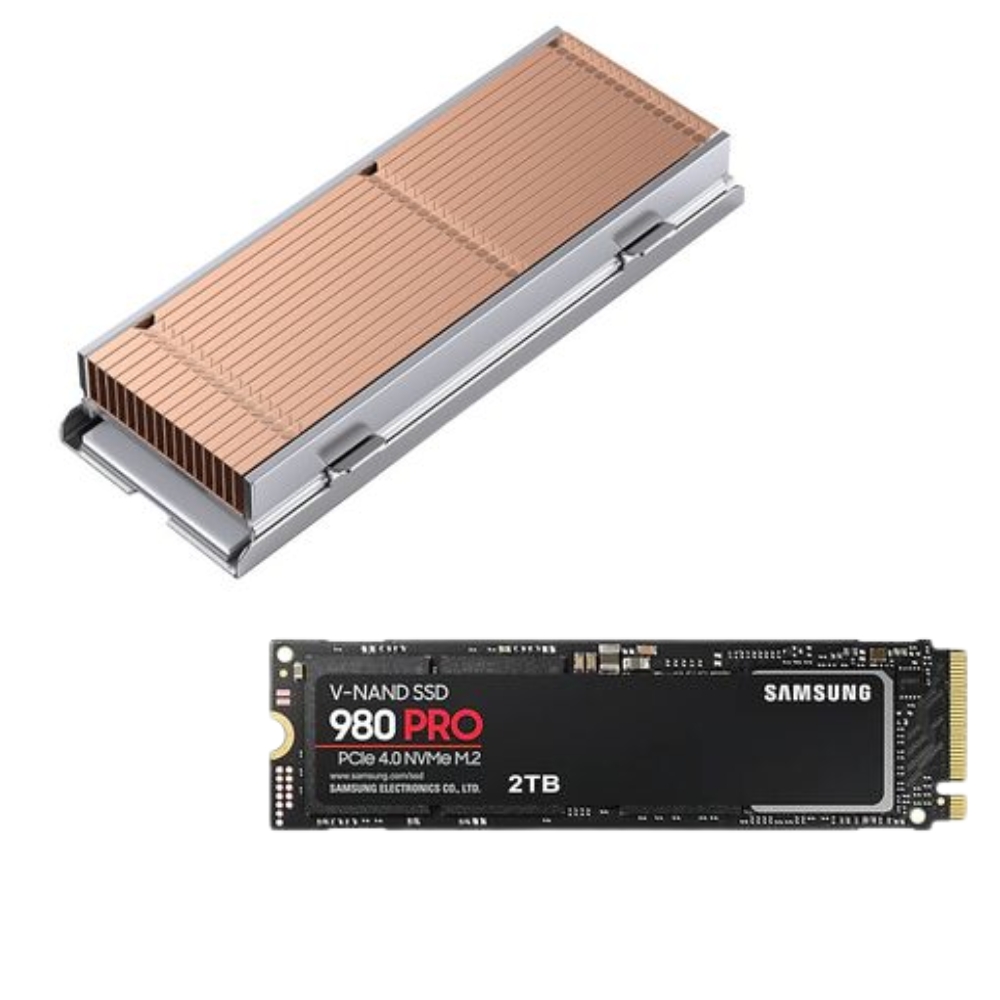

Orico – M.2 SSD Copper Heatsink with Samsung 980 PRO 2TB NVMe M.2 SSD

The Orico M.2 SSD Heatsink has everything you need to keep your M.2 SSD cool while working or playing your favourite games. Its fast cooling and high performance stops your SSD from overheating which in turn can prolong the life of your hardware. Its aluminium and copper construction is durable and offers fast heat dissipation. It also comes with a stainless steel tray and thermal pads to help with this even more and protect the SDD from both sides. The ...copper heat fins absorb the heat coming from the SSD, allowing you to maximize the drives performance. The aluminium heatsink greatly increases the heat dissipation area, improving cooling efficiency. The aluminium grooves and copper fins provide the best heat dissipation efficiency for the SSD. This versatile heatsink is also easy to install and is compatible with desktop PCs and PS5 consoles. Features:
– Aluminium and copper construction
– Cooling groove
– Copper fins
– 2280 M.2 SSD compatible
– Compatible with PC and PS5
– Easy installation Specifications:
– Product Material: Copper sheet + aluminium
– Installation Method: Tool-free snap-in
– Heat Dissipation Process: Innovative fin heat dissipation process, support PS5 game console hard disk heat dissipation
– Compatible: Single/double-sided M.2-NVME/NGFF solid state drives, supporting 22 80 size
– Product Colour: Brass Yellow
– Product Dimensions: 7 x 2.7 x 1 cm Samsung 980 PRO 2TB NVMe M.2 SSD
Samsung MZ-V8P2T0BW Efficient M.2 SSD:
The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops for maximum board design flexibility. The drive is suitable for building high-performance computing systems due to its optimised power efficiency. Smart thermal solution:
Embedded with Samsung’s cutting-edge thermal control algorithm, the 980 PRO manages heat on its own to deliver durable and reliable performance. To minimise performance fluctuations in the long haul, Samsung’s Dynamic Thermal Guard technology maintains the 980 PRO’s temperature at optimal levels. Features:
– Application
– Client PCs
– Capacity: 2TB
Form Factor: M.2 (2280) Interface
PCIe Gen 4.0 x4, NVMe 1.3c Dimension (WxHxD)
80.15 x 22.15 x 2.38 (mm) Weight
Max 9.0 g Weight Storage Memory
Samsung V-NAND 3-bit MLC Controller
Samsung Elpis Controller Cache Memory
Samsung 2GB Low Power DDR4 SDRAM Special Feature
TRIM Support
Supported S.M.A.R.T Support
Supported GC (Garbage Collection)
Auto Garbage Collection Algorithm Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) WWN Support
Not supported Device Sleep Mode Support
Yes
Performance
Sequential Read
Up to 7000 MB/s Sequential Write
Up to 5,000 MB/s Random Read (4KB, QD32)
Up to 1,000,000 IOPS Random Write (4KB, QD32)
Up to 1,000,000 IOPS Random Read (4KB, QD1)
Up to 22,000 IOPS Random Write (4KB, QD1)
Up to 60,000 IOPS Environment
– Average Power Consumption (system level)
– Average: 6.1 W xMaximum: 7.2 W (Burst mode) Power consumption (Idle)
– Max. 35 mW Allowable Voltage
– 3.3 V 5 % Allowable voltage Reliability (MTBF)
– 1.5 Million Hours Reliability (MTBF) Operating Temperature
– 0 – 70 ? Operating Temperature Shock
– 1,500 G & 0.5 ms (Half sine) What’s in the box
1 x Orico M.2 SSD Copper Heatsink – Brass Yellow
1 x Stainless Steel Tray
3 x Thermal Pads
1 x User Manual
1 x SSD
