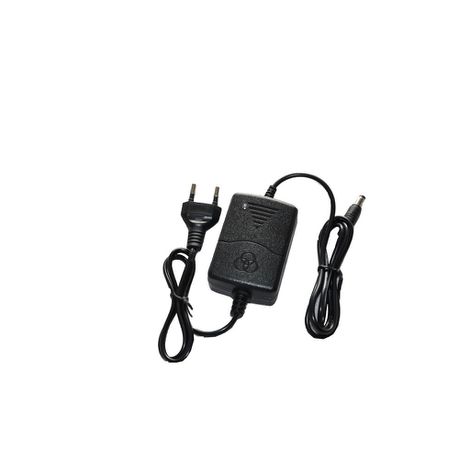

12V 1A Desktop Adapter
Features:
– Universal AC input/Full range
– Protections: Short circuit/Overload
– 100% full load burn-in test
– Cooling by free air convection
– High efficiency up to 80%
– Low cost, high reliability
Specification:
Output:
– DC Voltage: 12V
– Rated Current: 1A
– Current Range: 0-1A
– Rated Power: 12W
– Ripple Noise (max.): 300mVP-P
– Voltage Tolerance: +/- 0.5%
– Line regulation: +/- 0.5%
– Load regulation: +/- 0.5%
– Setup, Rise time: 2ms, 40ms/115...VAC at full load
– Hold up time (Typ.): 5ms/115VAC at full load Input:
– Voltage Range: 100 – 245VAC
– Frequency Range: 50 – 60Hz
– Efficiency (Typ.): 80%
– AC Current (Typ.): 3A/240VAC
– Inrush Current (Typ.): Cold start 30A/240VAC
– Leakage Current: <3mA / 240VAC
– Protection
– Overload: 105 – 135% rated output power
– Protection type: Hiccup mode, recovers automatically after fault condition is removed
– Over voltage: 13.8 – 16.2V
– Protection type: Shut down o/p voltage, re-power on to recover
– Environment
– Working temperature: 0 – +40 (Refer to “Derating Curve”)
– Working humidity: 20 – 90% RH non-condensing
– Storage temp: Humidity: -25 – +85Degree f,10 – +95% RH Safety:
– Safety standards: CE approved
– Withstand voltage: Dielectric strength 1500VAC/5mA/60s Dimension: 90 x 50 x 30mm (L x W x H)
– DC jack: 5.5 x 2.1/2.5mm
– AC cable length: 120cm
– DC cable length: 100cm
– 24 month warranty
What’s in the box– DC Voltage: 12V
– Rated Current: 1A
– Current Range: 0-1A
– Rated Power: 12W
– Ripple Noise (max.): 300mVP-P
– Voltage Tolerance: +/- 0.5%
– Line regulation: +/- 0.5%
– Load regulation: +/- 0.5%
– Setup, Rise time: 2ms, 40ms/115...VAC at full load
– Hold up time (Typ.): 5ms/115VAC at full load Input:
– Voltage Range: 100 – 245VAC
– Frequency Range: 50 – 60Hz
– Efficiency (Typ.): 80%
– AC Current (Typ.): 3A/240VAC
– Inrush Current (Typ.): Cold start 30A/240VAC
– Leakage Current: <3mA / 240VAC
– Protection
– Overload: 105 – 135% rated output power
– Protection type: Hiccup mode, recovers automatically after fault condition is removed
– Over voltage: 13.8 – 16.2V
– Protection type: Shut down o/p voltage, re-power on to recover
– Environment
– Working temperature: 0 – +40 (Refer to “Derating Curve”)
– Working humidity: 20 – 90% RH non-condensing
– Storage temp: Humidity: -25 – +85Degree f,10 – +95% RH Safety:
– Safety standards: CE approved
– Withstand voltage: Dielectric strength 1500VAC/5mA/60s Dimension: 90 x 50 x 30mm (L x W x H)
– DC jack: 5.5 x 2.1/2.5mm
– AC cable length: 120cm
– DC cable length: 100cm
– 24 month warranty

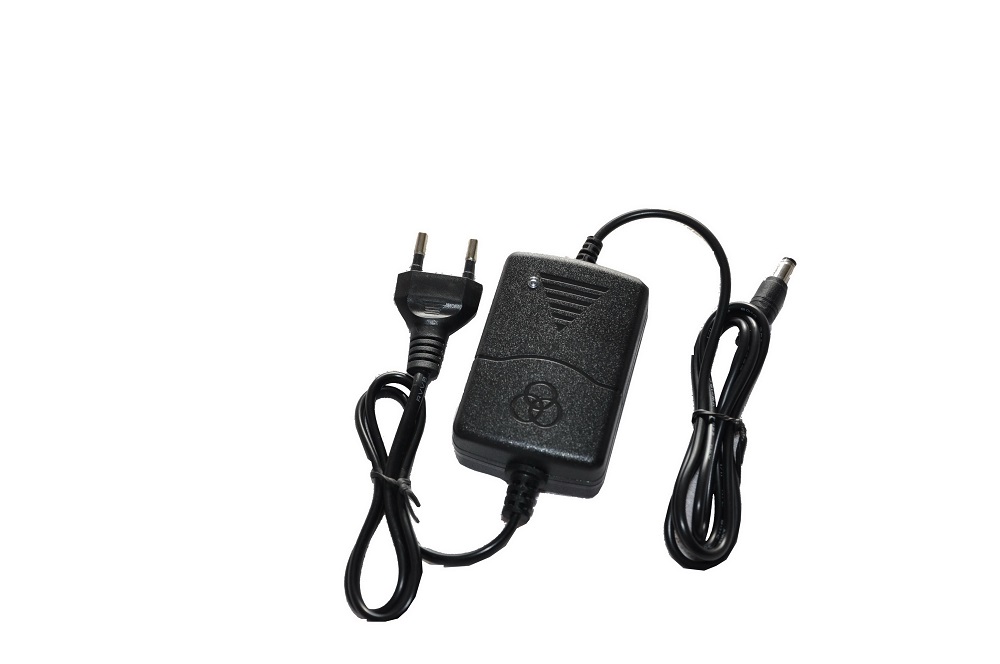

1x PD Power 12V 1A Desktop Adapter
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 8 × 6 cm |
| Brand | PD Powers |
| Model | PDA-12-12 |
|---|
