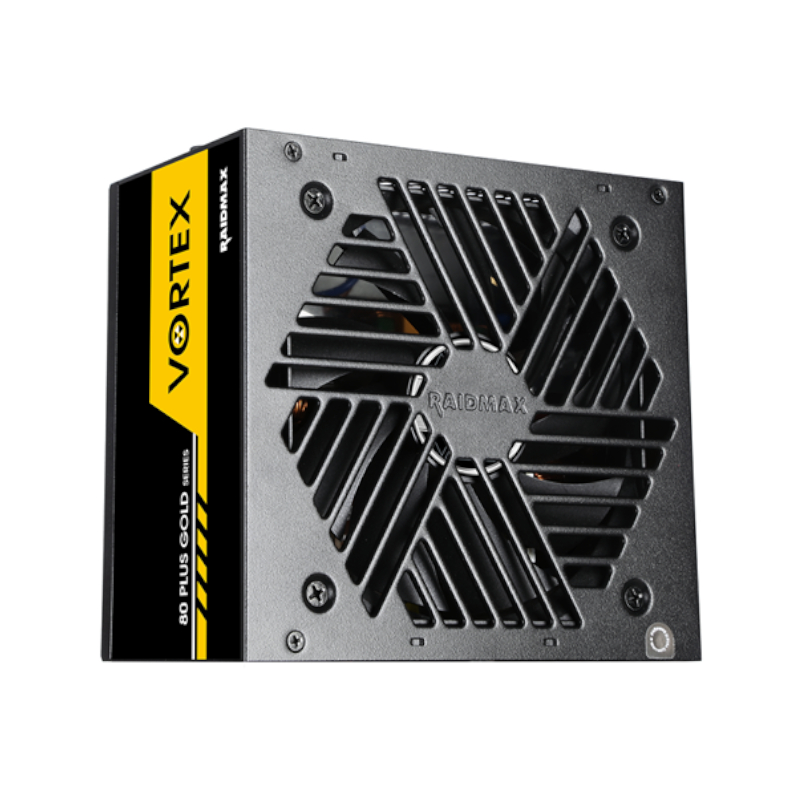

Raidmax Vortex 800W 80 PLUS Gold Non-Modular PSU

Power up your rig with the powerful and stable Raidmax Vortex 800W 80 PLUS Gold Non-Modular PSU. It utilises a single +12V rail output for enhanced stability and further possibilities. This power supply is designed with heavy-duty protective technologies, namely Over Voltage Protection (OVP), Over Power Protection (OPP) and Short Circuit Protection (SCP). The Raidmax Vortex PSU supports Multi-GPU technologies, offering 6-pin and 8-pin PCIe connectors. It is ideal for Dual-, Quad- and Multi-Core CPUs and is designed with a silent 120...mm fan that automatically adjusts speeds based on thermal status. Features :
– Powerful single +12V rail output helps ensure a stable reliable supply to other PC components and also supports higher power usage.
– 80 PLUS GOLD Certified for energy saving.
– Cosmic black coating design is a perfect match for any kind of PC chassis.
– Vortex Series power supply s ideal for Dual-, Quad- and Multi-Core CPUs.
– Enhanced +12V current capability broadens utilization possibilities.
– Designed with Multi-GPU technologies supported, which 6-pin and 8-pin PCIE connectors support all GPU platforms.
– Equipped with a 120mm black silent automatically thermal fan to help guarantee superior cooling performance.
– Heavy-duty protections, including Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP)
– Universal AC input by Active PFC (99% RF Typical)
– Vortex GOLD Series power supplies come with DC to DC Converter design for tight voltage regulation. Specifications :
– Total Power: 800W
– AC Input: 115/230VAC, 12A/6A, 47/63Hz
– DC Output Voltage:
+3.3V: 20A – 100W
+5V: 20A – 100w
+12V: 66A – 792W
-12V: 0.3A – 3.6W
+5VSB: 2.5A – 12.5W
– Connectors:
M/B 20+4 PINS: 1
CPU 4+4 PINS: 1
PCI-E 6+2 PINS: 4
SATA: 7
Molex 4 PINS: 4
– Protective Features: OVP, OPP, SCP
– Dimensions: 15 x 14 x 8.6 cm What’s in the box
1 x Raidmax Vortex 800W 80 PLUS Gold Non-Modular PSU
