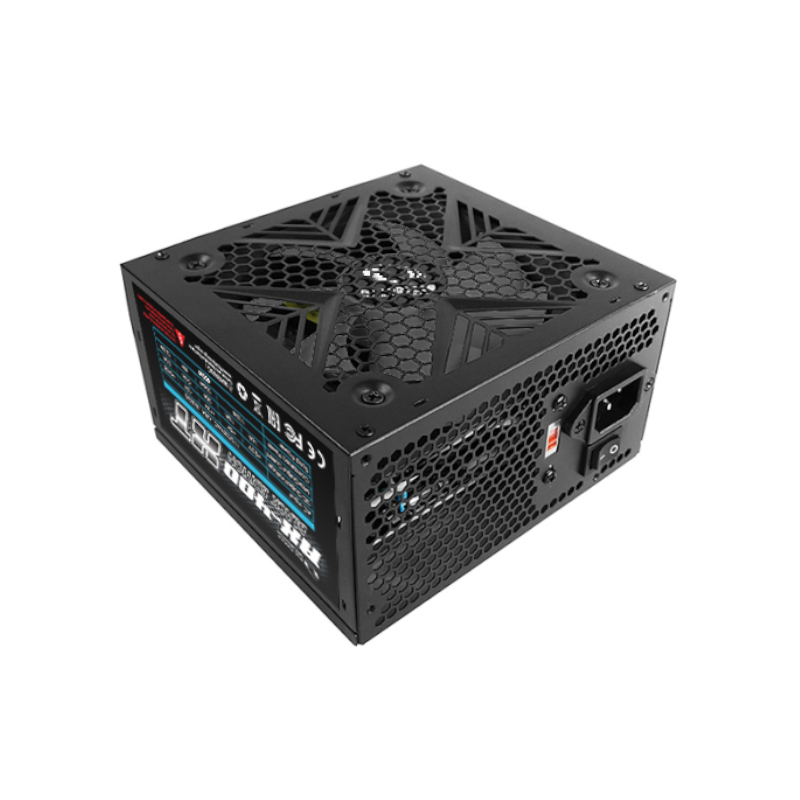

Raidmax XT-Series 550W Non-Modular PSU

The Raidmax XT-Series 550W Non-Modular PSU is a great entry-level power supply. It utilises a single +12V rail output for enhanced stability. This power supply is designed with heavy-duty protective technologies, namely Over Voltage Protection (OVP), Over Power Protection (OPP) and Short Circuit Protection (SCP). Raidmax has designed the XT-Series with optimal heat dissipation via a honeycomb ventilation grid and a silent 120mm fan that automatically adjusts speeds based on thermal status. Features : Single +12V rail output for higher power ...usage
C6/C7 power-saving mode on Intel Haswell CPU
Supports Intel ATX12V V2.3
Up to four SATA connectors for multiple HDDs/SSDs
Over Voltage Protection (OVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Honeycomb ventilation design for optimal heat dissipation
Superior cooling performance with a Raidmax silent 120mm fan Specifications : Total Power: 550W
AC Input: 115/230VAC, 4/8A, 50/60Hz
DC Output Voltage:
+3.3V: 18A – 110W
+5V: 17A – 110w
+12V: 38A – 456W
-12V: 0.5A – 6W
+5VSB: 2.5A – 12.5W
Connectors:
M/B 20+4 PINS: 1
CPU 4+4 PINS: 1
PCI-E 6+2 PINS: 1
PCI-E 6 PINS: 1
SATA: 4
Molex 4 PINS: 2
Protective Features: OVP, OPP, SCP
Dimensions: 15 x 14 x 8.6 cm What’s in the box
Raidmax XT-Series 550W Non-Modular PSU
