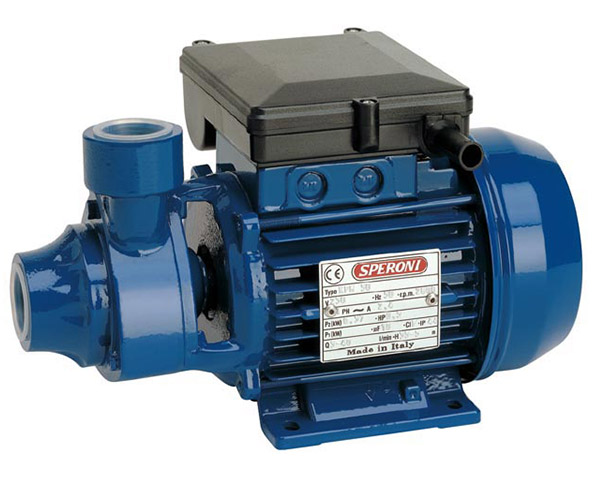

Speroni Peripheral Turbine Pump – 230V 25x25mm 0.37Kw

Specifications:
– Turbine Pump
– Brand: Speroni
– Type: Peripheral
– Size: 25 x 25 mm
– Voltage: 230V
– Power: 0.37KW Volumetric water pumps able to offer high pressures in relation to comparatively low power and has particularly steady operating curves. They are used in domestic situations to increase water system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units. For the correct functioning of the pump, use clean water, pr non aggressive liquids ...only, without sand or other solid impurities. Flow rates:
Height (meters) and m /h (cubic meter of liquid per hour)
34m – 0.3 m /h
30m – 0.6 m /h
25m – 0.9 m /h
22m – 1.2 m /h
17m – 1.5 m /h
13m – 1.8 m /h
10m – 2.1 m /h Operating conditions:
– Liquid temperature up to 60 C
– Ambient temperature up to 40 C
– Total suction lift up to 7m
– Continuous duty Motor:
– Two pole induction motor
– Insulation class F
– Protection IP44 Materials:
– Cast iron pump body
– Cast iron motor support
– Brass impellers
– Stainless steel AISI 304 shaft with rotor
– Ceramic/Graphite/NBR mechanical seal What’s in the box
1 x Speroni Peripheral Turbine Pump
