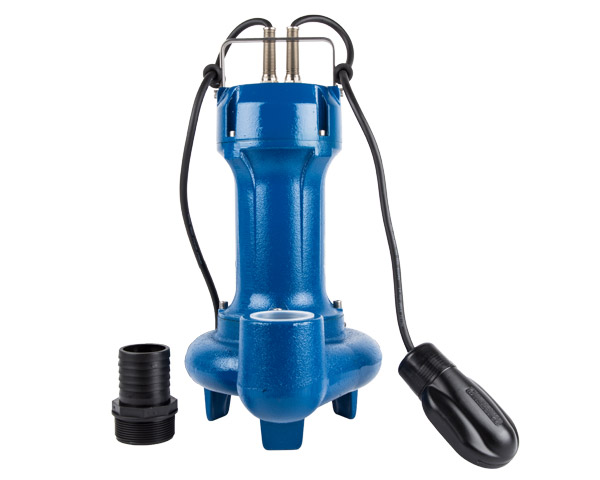

Speroni Submersible Vortex Pump – 230V 40mm 0.56KW

Specifications:
– Submersible Pump
– Brand: Speroni
– Type: Drainage
– Size: 40mm
– Voltage: 230V
– Power: 0.56Kw This submersible drainage pump with plunged open impeller with grid is suitable for clean water, even with small suspended solids, for drainage of lowing and collection of rain water. Flow rates:
Height (meters) and m³/h (cubic meter of liquid per hour)
10m – 3 m³/h
9.5m – 6 m³/h
9m – 9 m³/h
8m – 12 m³/h
7m – 15 ...m³/h
6m – 18 m³/h
5m – 21 m³/h Operating conditions:
– Liquid temperature up to 35 °C
– Maximum immersion depth of 20 m (with a cable of the appropriate length)
– Grain size inlet 10mm
– Min. suction level 100mm Motor:
– insulation class F
– Protection IP 68
– Thermic protection (only single-phase) Materials:
– Cast iron motor body
– Cast iron pump body
– Cast iron impeller
– Stainless steel AISI 304 shaft with rotor
– Stainless steel AISI 304 suction strainer
– Silicon/Silicon/NBR mechanical seal with oil chamber
