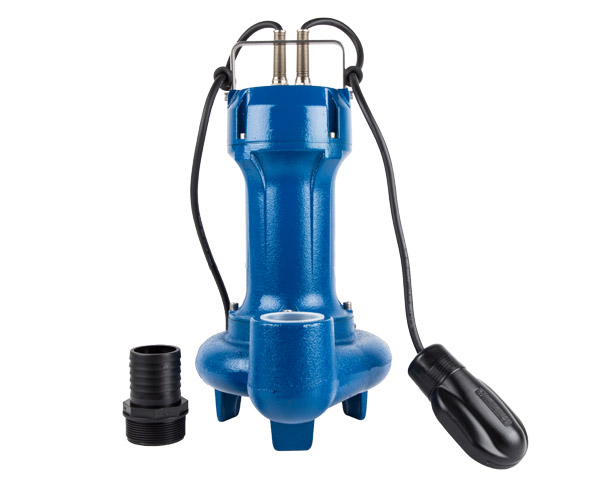

Speroni Submersible Vortex Pump – 230V 50mm 0.56KW

Specifications:
– Submersible Pump
– Brand: Speroni
– Type: Vortex
– Size: 50mm
– Voltage: 230V
– Power: 0.56Kw This submersible drainage pump with plunged back impeller Vortex type. Suitable in civil an industrial water systems, for cesspool drainage with slightly dirty or foamy liquids, for oily water cleaned by grid. Flow rates:
Height (meters) and m³/h (cubic meter of liquid per hour)
8.5 m – 3 m³/h
8 m – 6 m³/h
7 m – 9 m³/h
5.5 m – 12 m³/...h
4 m – 15 m³/h
3 m – 18 m³/h Operating conditions:
– Liquid temperature up to 35 °C
– Maximum immersion depth of 20 m (with a cable of the appropriate length)
– Grain size inlet 30mm
– Min. suction level 100mm
– Continuous duty Motor:
– insulation class F
– Protection IP 68
– Thermic protection (only single-phase) Materials:
– Cast iron motor body
– Cast iron pump body
– Cast iron impeller
– Stainless steel AISI 304 shaft with rotor
– Silicon/Silicon/NBR mechanical seal with oil chamber
