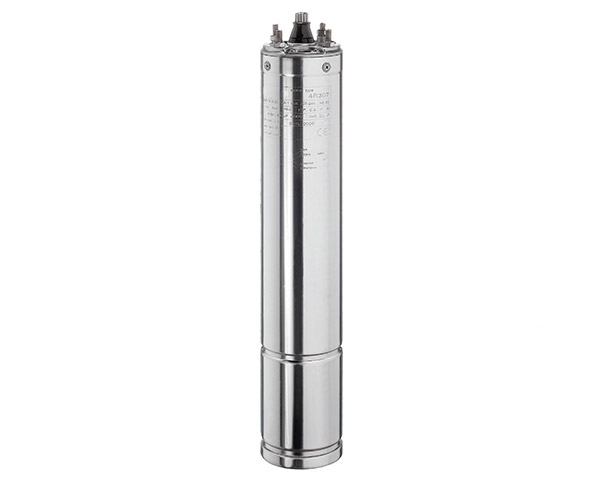

Stairs-Pumps Submersible Motor – 0.56KW 230V

Specifications:
– Submersible Motor
– Brand: Stairs
– Type: Submersible
– Voltage: 230V
– Power: 0.56Kw 100 mm rewindable submersible motor for standard applications with maintenance free lubricated bearings and approved non-toxic vegetable oil. Dimensions and flange according to NEMA4 standards. Matching Stairs control boxes must be installed or a USB control box. Motor can be installed in a horizontal or vertical position. Motor fitted with a removable lead-out cable. 0.37 kW to 4 kW. Kw – 0.55
HP – 0.75
Voltage (V) – 230
IN (...A)- 5.0
Istart (A) – 15
Efficiency (%) – 62 %
PF (COS ?) – 0.90
Nn RPM – 2840
Thrust load (N)- 2000
Cable – 1.5 mm – 1.7 m General specifications:
– Mountain flange: 4 NEMA standard
– Insulation class F
– Single phase motors: 0.37 kW up to 4.0 kW
– Three phase motors: 0.37 kW up to 7.5 kW
– Standard voltages: 1 ~ 230 V (50 Hz), 3 ~ 230 v or 400 v (50 Hz)
– Cable length: 1.7 m – 0.37 kW up to 1.5 kW, 2.5 m – 2.2 kW up to 7.5 kW Operating parameters:
– Max temperature: 35 C (92 F)
– Max immersion depth: 200 m
– Motor cooling flow rate: 0.2 m / sec
– Axial thrust: 2000N – 0.37 kW – 1.5 kW, 3000N – 2.2 kW, 5000N – 3 kW – 7.5 kW Matching Stairs control boxes must be installed or a USB Control Box. What’s in the box
1 x Stairs-Pumps Submersible Motor
