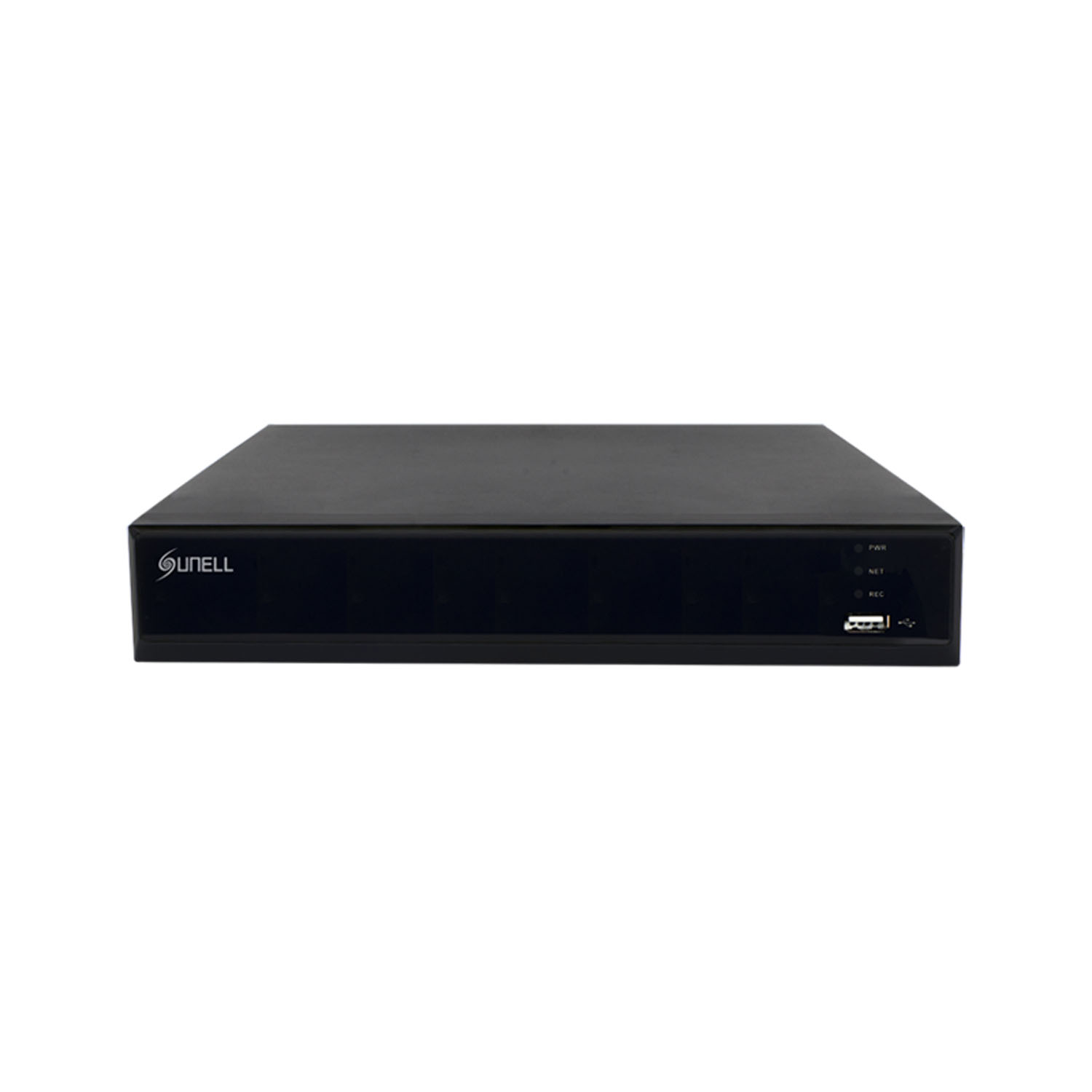

Sunell NVR 8-Channel, 1 Bay, 1x LAN, 8x PoE, H.265

System:
– Main Processor Dual-core embedded processor
– Operating System Embedded LINUX Audio and Video:
– IP Camera Input 8 Channel
– Two-way Talk Yes
– Intelligent Video Face Recognition, Attendance Face Recognition:
– Performance Max 20 face pictures /sec processing
– 8ch picture stream face recognition
– Stranger Mode Detect strangers’ faces (not in device’s face database)
– Similarity threshold can be set manually
– AI Search Search for image by image
– Search image by properties
– Database Management ...Up to 16 face databases with 10,000 face images in total
– Database Application Every data can be applied to any channel
– Trigger Events Buzzer, Alarm Out, compare the result simultaneously, etc. Display:
– Interface 1 HDMI, 1 VGA
– Resolution HDMI: 3840 x 2160,1920 x 1080,1440 x 900, 1280 x 1024
– VGA: 1920×1080, 1280×1024, 1280×720
– Decoding Capacity 1ch 12MP/4ch 5MP/8ch 1080Pat30fps
– Multi-screen Display 1/4/9 Recording:
– Compression H.265+/H.265/H.264
– Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/ D1 etc.
– Record Rate 80Mbps
– Bit Rate 128Kbps ~ 8192Kbps Per Channel
– Record Mode Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in
– Record Interval Post-record: 30 – 60 sec Video Detection and Alarm:
– Trigger Events Recording, Buzzer, Push message, Pop up message.
– Video Detection Motion Detection, Video Loss, Camera Tamper
– Alarm In/Out 8/1 Playback and Backup:
– Sync Playback 9/4/1
– Search Mode Time /Date, Alarm, Picture grid, Event
– Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next
– Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
– Backup Mode USB Device Network:
– Interface 1 RJ-45 port (10M/100Mbps)
– PoE Interface 8ch 100Mbps, IEEE802.3af
– PoE Max Power 80W
– Network Function HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
– Max. User Access 10 users
– Smart Phone iPhone, iPad, Android
– Interoperability ONVIF, SDK, CGI Storage:
– Internal HDD 1 SATA Ports, up to 12TB for each HDD
– Mounting Mode Embedded Interface
– USB 2 ports (USB 2.0 x1, USB3.0 x1)
– Audio I/O 1ch MIC in, 1ch Audio line out Specifications:
– Power Supply DC48V/2.5A
– Power Consumption 5W (without HDD)
– Operating Conditions -10 degree celsius – 50 degree celsius (14 F – 122 F)
– Storage Conditions Less than 90% RH
– Certifications CE/FCC
– Dimensions 255 x 235 x 47.5mm
– Net Weight 1kg What’s in the box
1xSunell NVR 8-Channel, 1 Bay, 1x LAN, 8x PoE, H.265
