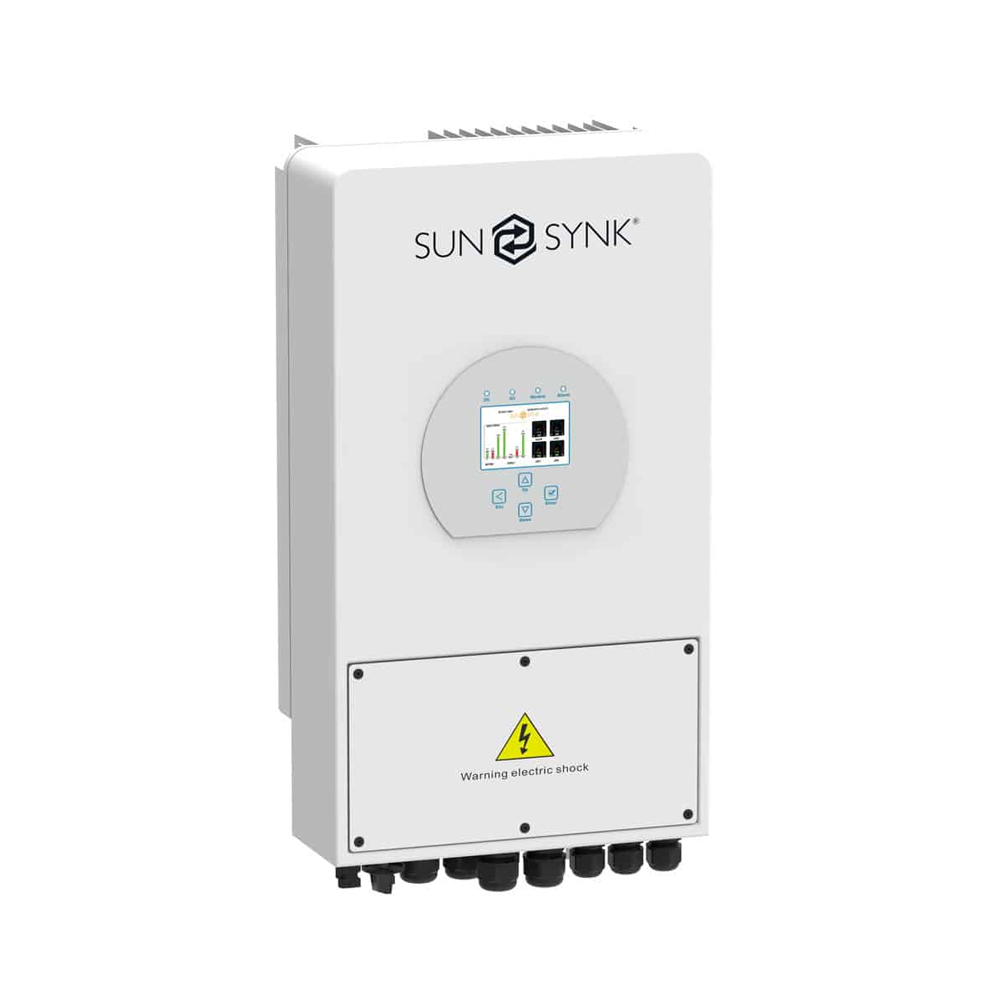

Sunsynk Inverter 5kW 1P Hybrid PV 48v C/W Wifi Dongle IP65

The Sunsynk Hybrid Parity Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power coming from multiple sources such as solar, mains grid and generator and then effectively storing and releasing electric power as the utilities require.

The Sunsynk Hybrid Inverter has many uses and is recommended for the following applications.

Marine (vessel power management)
Power shedding (home / office / factory)
UPS (fuel saving systems)
Remote locations with solar and wind generators
Building sites
Military locations
Telecommunication sites

Features:

220V single phase, pure sine wave inverter
Self-consumption & feed-in to the grid
Auto re-start while AC is recovering
Programmable supply priority for battery or grid
Programmable multiple operation modes; on-grid / off-grid & UPS
Configurable battery charging – current/voltage based on applications by LCD setting
Configurable AC / solar / generator charger priority by LCD setting
Compatible with mains voltage or generator power
Overload / over-temperature / short-circuit protection
Smart battery charger designer optimised battery protection
Limit-function installed to prevent excess power overflow into the grid
Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers
Smart settable 3-stage MPPT charging for optimised battery performance
Time of use function
Smart load function

Weight: 20.5kg
Size: 580 x 330 x 217mm

Type: Lead-acid or Li-Ion
Max Charging Current: 125 Amps

PV Input Data:

Max DC Input Power: 6000W
Max DC Input Voltage: 500V
Max Input Current: 11A + 11A

AC Output Data

Rated AC Output & UPS: 5000W
Peak Power Off-Grid: 10 000W (2xRated)
Max AC Current: 25 Amps
Output Frequency: 50/60Hz

Efficiency:

Max: 97.6%

Noise: < 30db
Operating Temp: -25C to 60C

What’s in the box
1 x Sunsynk Inverter
1 x Wifi Dongle
