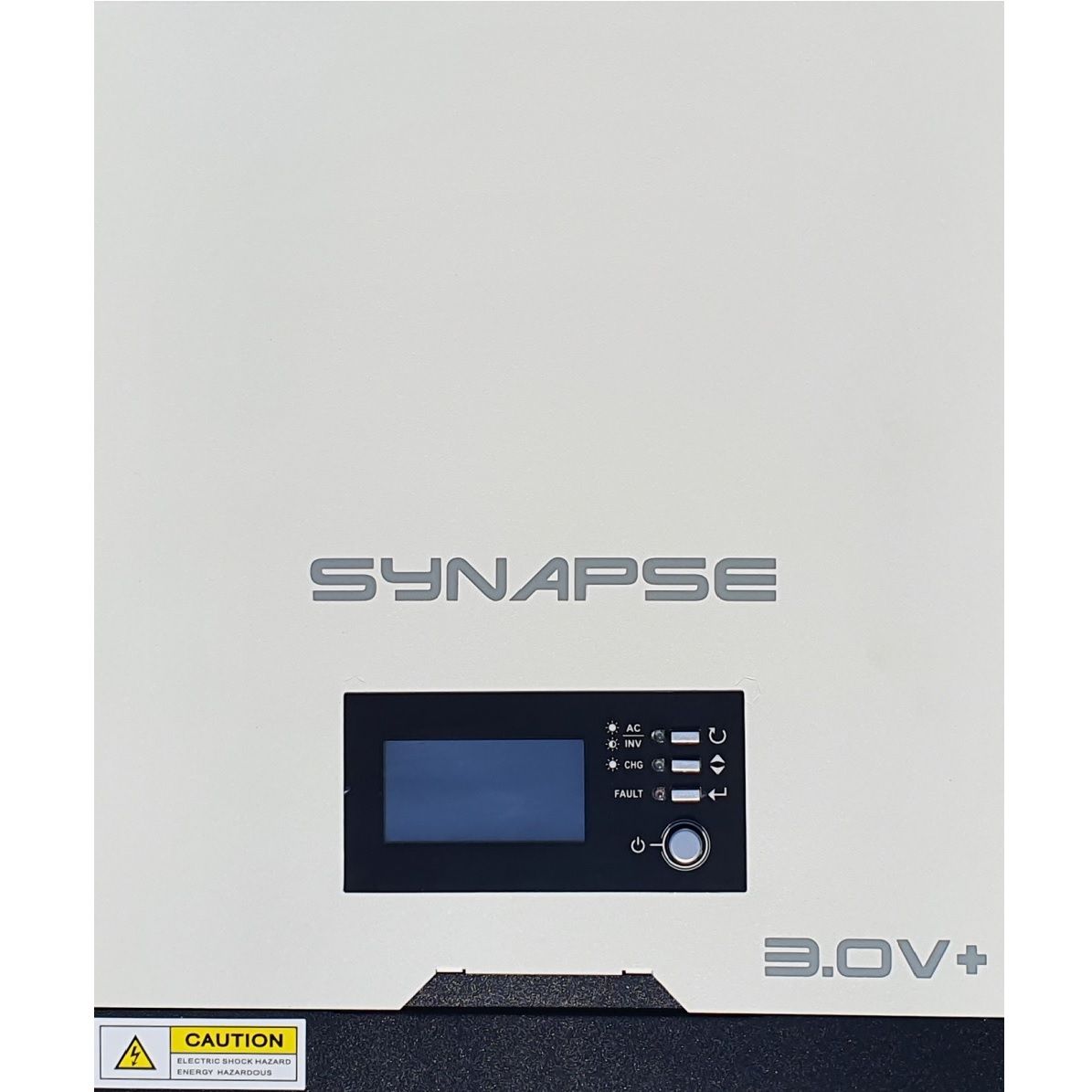

SYNAPSE 3000VA/2400W (V+) 24V Off-GRID Inverter

Please note: This inverter requires 2 x 12V batteries or a single 24V Lithium battery (Sold separately) Pure sine wave solar inverter
Wide DC input range
Inverter running without battery
Built-in 40A MPPT solar charger
Battery equalization function to optimize battery
performance and extend the lifecycle
SYNAPSE 3.0+ Technical Specifications Product Code: SYNAPSE 3.0+
Rated Power: 3000VA/2400W Input:
Voltage: 230V AC
Selectable Voltage Range: 170 -280V AC (For Personal Computers): 90 -280V AC| (...For Home Appliances)
Frequency Range: 50Hz / 60Hz (Auto-sensing) Output:
AC Voltage Regulation (Battery Mode): 230V AC 5%
Surge Power: 6000VA
Efficiency (Peak) 90% – 93%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform Pure sine wave Battery
Battery Voltage 24V DC
Floating Charge Voltage: 27V DC
Overcharge Protection: 32V DC
Overcharge Protection: 32V DC Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage 102V DC
Maximum PV Array Power: 1000W
MPP Range @ Operating Voltage: 30 – 80V DC
Maximum Solar Charge Current: 40A
Maximum AC Charge Current: 25A
Maximum Charge Current: 60A Physical
Dimension (D x W x H): 88 x 225 x 320
Net Weight: 6.0kgs
Communication Interface: USB RS232 What’s in the box
1 x Inverter
