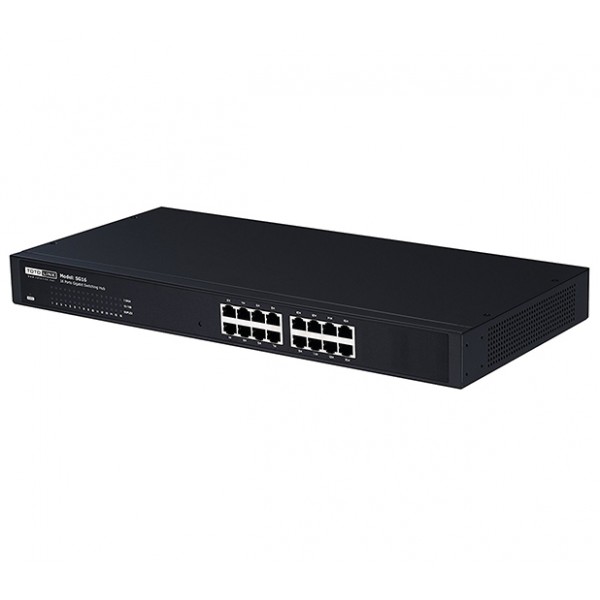

Totolink 16-Port Unmanaged Gigabit Switch

Totolink 16-Port Unmanaged Gigabit Switch SG16 is a 16-port unmanaged switch. It is a smart high performance gigabit switch that provides an ideal solution for workgroup or department Gigabit applications. With 16 10/100/1000BASE-T (AUTO-MDIX) Gigabit Ethernet ports, this switch can provide full bandwidth up to 2000Mbps in full duplex mode. Also it supports easy-to-view LED indicators for cable installation and normal operational diagnostics. It can be installed on desktop or in rack-mount. Features:
– Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, ...IEEE 802.3x standards.
– 16 10/100/1000Mbps auto-negotiation ports.
– Supports flow control for each port.
– Supports store and forward switching scheme capability.
– Supports NWay auto-negotiation for all ports.
– Supports auto MDI/MDIX for each port.
– Supports per-port bandwidth control.
– Supports PHY register read/write access. Specifications:
– Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
– Interface: 16 X 10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
– Power Supply: 100V to 240VAC, 50/60Hz
– Dimensions: 440mm x 160mm x 44.6mm (L x W x H)
– LED: Power, Link/Activity
– MAC Address Learning: Auto-learning, auto update
– MAC Address Table: 8K Network Media:
– 10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)
– EIA/TIA-568 100 STP (100m max.)
– 100Base-Tx: UTP Cat 5, 5e cable (100m, max.)
– EIA/TIA-568 100 STP (100m max.)
– 1000Base-T: UTP Cat 5, 5e cable (100m, max.) Frame Filtering:
– 10Mbps: 14,880pps
– 100Mbps: 148,800pps
– 1000Mbps: 1,488,000pps – Backup Bandwidth: 32Gbps
– Transmission Method: Store-and-forward Environment:
– Operating Temperature: 0 to 40 (32 to 104)
– Storage Temperature: -40 to 70 (-40 to 158)
– Operating Humidity: 10 Percent to 90 Percent non-condensing
– Storage Humidity: 5 Percent to 95 Percent non-condensing Box Content:
– Totolink 16-Port Unmanaged Gigabit Switch What’s in the box
Totolink 16-Port Unmanaged Gigabit Switch
