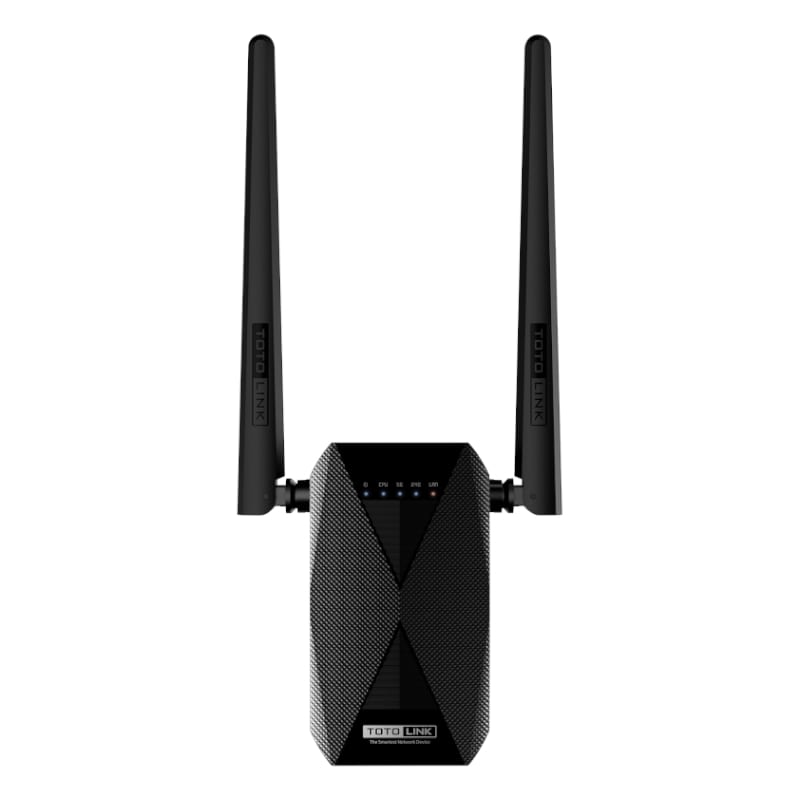

Totolink EX1200T 5GHz Dual-Band Wi-Fi Range Extender

The Totolink EX1200T 5GHz Dual-Band Wi-Fi Range Extender adopts the next-generation 802.11ac technology and delivers fast speeds of dual-band Wi-Fi up to 1167Mbps, optimized for internet activities requiring high bandwidth, such as HD videos and online gaming. The support of dual-band helps extend your existing 2.4GHz or 5GHz Wi-Fi signal with high speed to further distances, turning your single-band Wi-Fi to dual-band and reducing Wi-Fi dead spots. The Totolink EX1200T supports Phone UI design for Smartphones, simply connect ...your phone to the extender’s SSID, the user settings page will pop-up automatically, with no more than three steps to finish the Wi-Fi extension. Simply press the WPS button on both the EX1200T and your wireless router to extend the coverage of your existing WLAN network. Two external dual-band high-performance antennas with MIMO technology ensure stable wireless connection and data transmission for multiple Wi-Fi devices simultaneously. Two signal strength LED indicators are provided to show you how the Wi-Fi signal from the original WLAN is so that you could place the extender into an optimum position to get the best Wi-Fi. Once connected with an existing router, you can take the EX1200T to any ideal place in your home with no more further configurations needed. Features:
– Complies with 802.11ac/a/b/g/n standards.
– Turns your single-band Wi-Fi to dual-band Wi-Fi.
– Delivers up to 300Mbps on 2.4G band or 867Mbps on 5G band.
– Two external antennas enhance the throughput’s stability.
– Supports easy and quick setup by smartphones.
– Supports WPS (Wi-Fi Protected Setup) with the one-click button.
– Two signal strength LED indicators to help you get the optimum position for the extender.
– Supports two working modes: AP Mode and Extender Mode.
– Wall-plug design saves your space. Specifications:
– Interface: 1 x 10/100Mbps Ethernet port
– Power Supply: AC 100V~240V / 50~60Hz 0.1A
– Button: 1 x 5GHz WPS, 1 x 2.4GHz WPS, 1 x RST
– LED Indicator: 1 x Power,  1 x CPU, 1 x 5G EXT, 1 x 2.4G EXT, 1 x LAN
– Antenna: 2 x 5dBi fixed dual-band antennas
– Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
– RF Frequency: 2.4GHz/5GHz
– Data Rate 2.4GHz: Up to 300Mbps
– Data Rate 5GHz: Up to 867Mbps
– EIRP: 2.4GHz < 20dBm, 5GHz < 20dBm
– Reception Sensitivity 2.4GHz: 11b 11M: -81dBm @ 8?PER, 11g 54M: -68dBm @ 10?PER, 11n HT20 MCS7: -65dBm @ 10?PER, 11n HT40 MCS7: -62dBm @ 10?PER
– Reception Sensitivity 5GHz: 11a 54M: -68dBm @ 10?PER, 11n HT20 MCS7: -65dBm @ 10?PER, 11n HT40 MCS7: -62dBm @ 10?PER, 11ac VHT80 MCS9: -51dBm @ 10?PER
– Advanced Features: Easy Wi-Fi Extension by Smart Phone
– Dimensions: 11.7 x 7.2 x 6.6 cm What’s in the box
1 x Totolink EX1200T 5GHz Dual-Band Wi-Fi Range Extender
1 x Quick Installation Guide
