Tp-Link 10/100/1000 MBPS Rj45 to 1000mbps Sm Converter

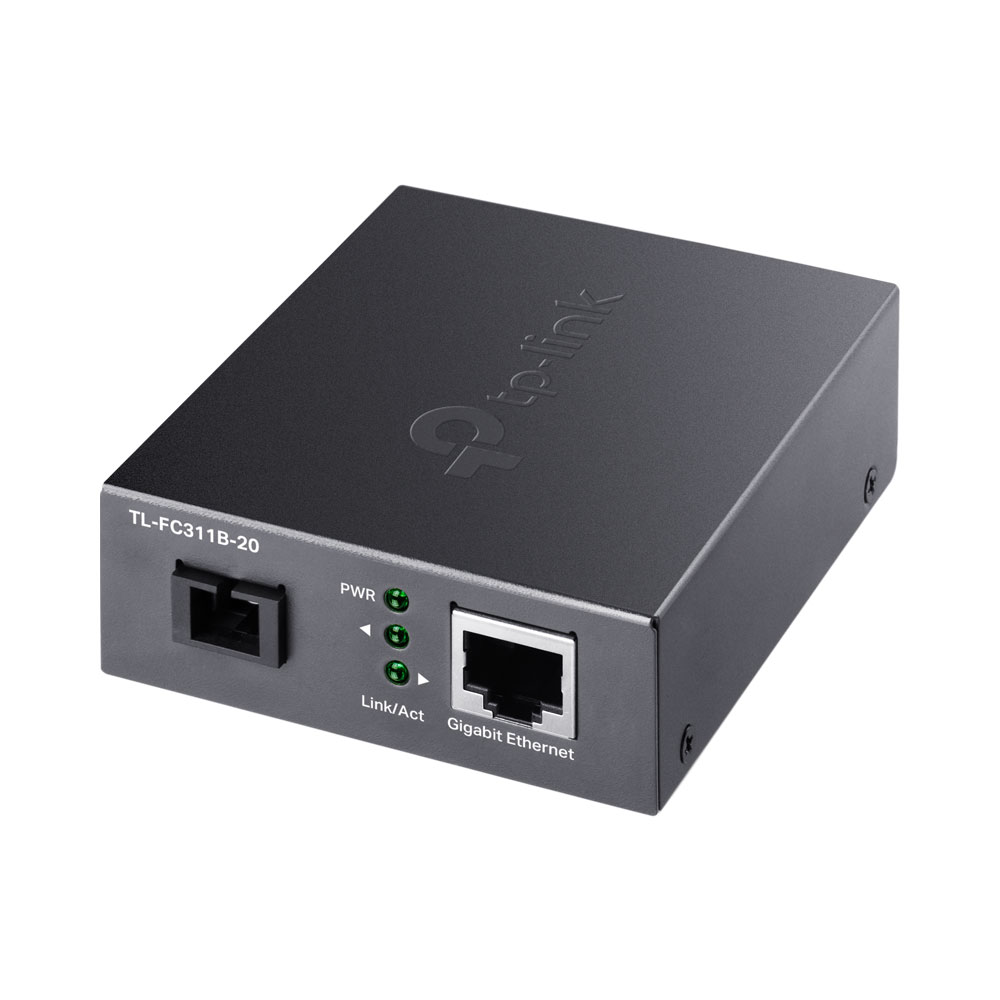

TP-LINK 10/100/1000 MBPS RJ45 TO 1000MBPS SM CONVERTER TL-FC311B-20 is a gigabit media converter, providing a gigabit RJ45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. Features: -1x 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
-Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
-Adopts WDM technology, transmitting and receiving data on ...one single fibre
-Extends fibre distance up to 20km Specifications: NETWORK
Standards and Protocols IEEE 802.3i, 802.3u, 802.3ab, 802.3z
ENVIRONMENT
Operating Temperature 0 C to 50 C (32 F to 122 F)
Storage Temperature -40 C to 70 C (-40 F to 158 F)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
HARDWARE FEATURES
Interface 1 Gigabit SC Fibre Port
1 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media Single-mode Fibre
UTP category 5, 5e cable (maximum 100m)
Power Supply External Power Adapter: 5 V/0.6 A
LED PWR, Link/Act
Dimensions ( W x D x H ) 94.5 73.0 27.0 mm
Wave Length 1310 nm TX
1550 nm RX
MEDIA CONVERTER & MODULE
Fiber Type 9/125 m single-mode fibre What’s in the box
1x 0/100/1000 MBPS RJ45 TO 1000MBPS SM CONVERTER
