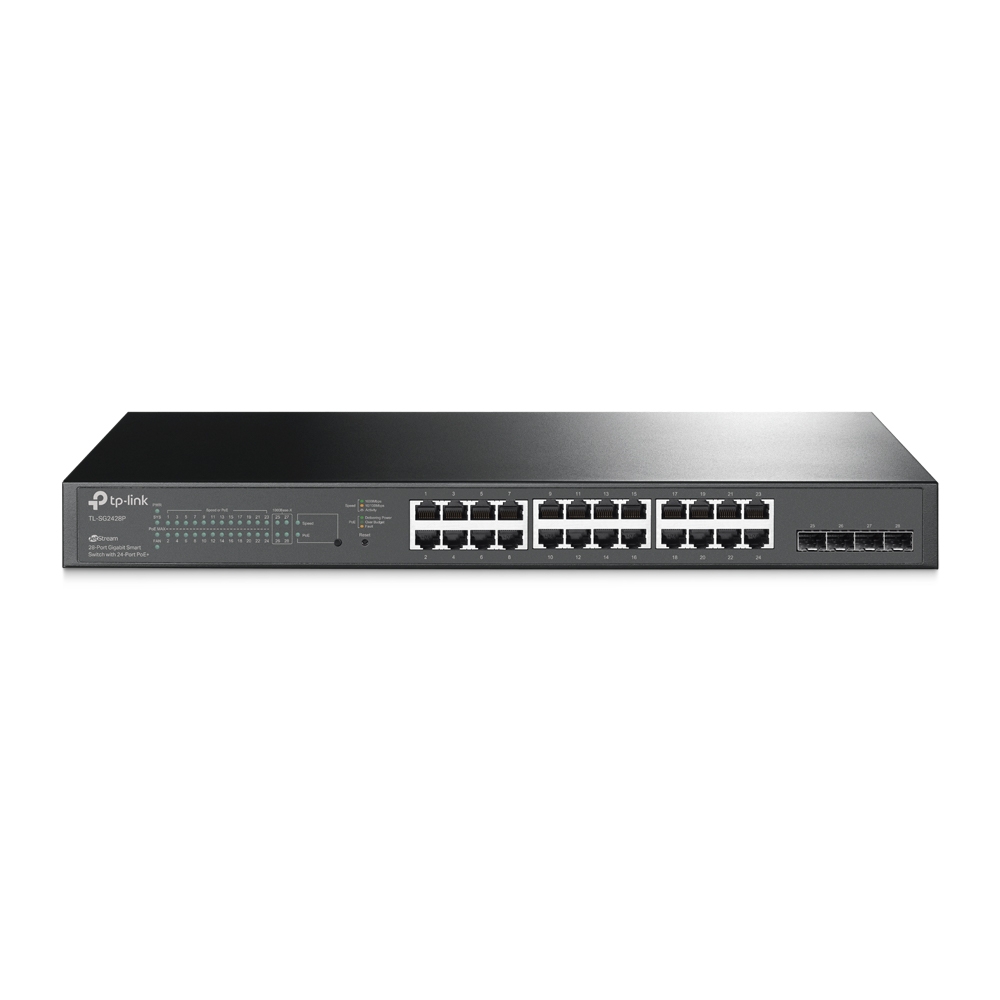

TP-LINK 28 Port POE GBE Smart Switch

TL-SG2428P
JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+ 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W.
Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network ...resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery. Realize More Possibilities with Omada
JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+ Centralized Cloud Management – Omada SDN Platform Integration
Advanced L2+ Features -L2/L3/L4 QoS, ACL, Static Routing and More
Abundant Security Strategies – LAN Area Investment Protection
PoE+ Output – 24 PoE+ Ports with Total 250 W Power Budget Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Specifications
Hardware Features
Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface : 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 4× Gigabit SFP Slots
Network Media : 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity : 2
PoE+ Ports(RJ45) : Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Dimensions ( W x D x H ) : 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting : Rack Mountable
Max Power Consumption : 32.1 W (110 V/ 60 Hz with no PD connected)
308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation : 109.53 BTU/h (with no PD connected)
1052.94 BTU/h (with 250 W PD connected) Performance
Bandwidth/Backplane : 56 Gbps
Packet Forwarding Rate : 41.7 Mpps
MAC Address Table : 8K
Packet Buffer Memory : 4.1 Mbit
Jumbo Frame : 9KB Software Features
Quality of Service
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS
Voice VLAN L2 and L2+ Features
Static Routing
DHCP Relay
DHCP Server
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED VLAN
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN Access Control List
L2–L4 package filtering
MAC ACL
IP ACL
Combined ACL
IPv6 ACL Security
AAA
Port Security
DHCP Snooping
IP-MAC-Port Binding
IPv6-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1.2
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend IPv6
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6 IPv6 Applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP Management
Omada App : Yes Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Management Features
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
EEE Others
Certification : CE, FCC, RoHS
System Requirements : Microsoft Windows XP, Vista or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux. Environment :
Operating Temperature: 0–50 ? (32–122 ?);
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing What’s in the box
TL-SG2428P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
