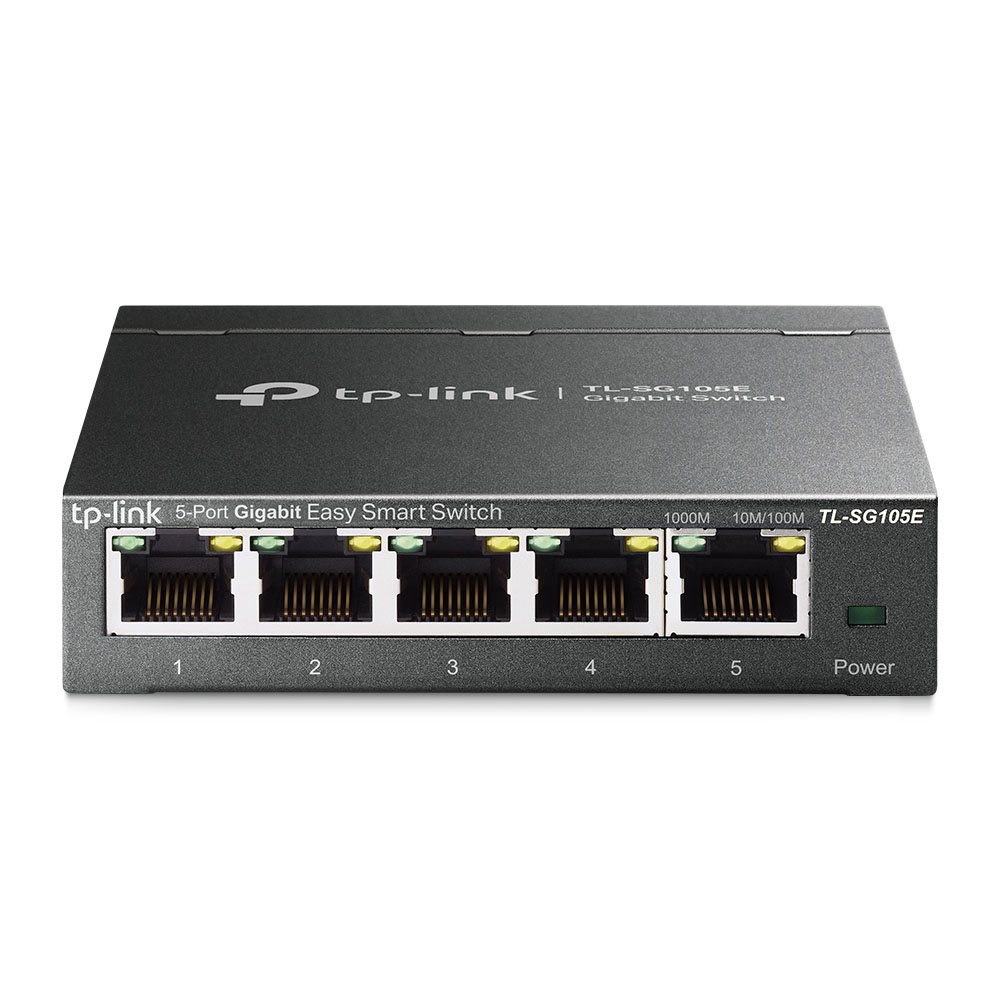

TP-LINK 5-Port Gigabit Easy Smart Switch

• 5 10/100/1000Mbps RJ45 ports
• Plug and play, with no configuration required
• Durable metal casing of superior quality and professional appearance
• Intelligent management via a web user interface and downloadable utility
• Green technology reduces power consumption

HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface 5 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) ...EIA/TIA-568 100 STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 5 VDC/ 0.6 A) Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm) Max. Power Consumption 2.82 W (220 V/ 50 Hz) Max Heat Dissipation 9.62 BTU/h PERFORMANCE Packet Forwarding Rate 7.4 Mpps MAC Address Table 2 K Packet Buffer Memory 1 Mb Jumbo Frame 16 KB SOFTWARE FEATURES Quality of Service Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Content TL-SG105E Power Adapter Installation Guide Rubber Feet System Requirements Microsoft Windows for running Utility Environment Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing What’s in the box
1x TL-SG105E
1x Power Adapter
1x Installation Guide
1x Rubber Feet
