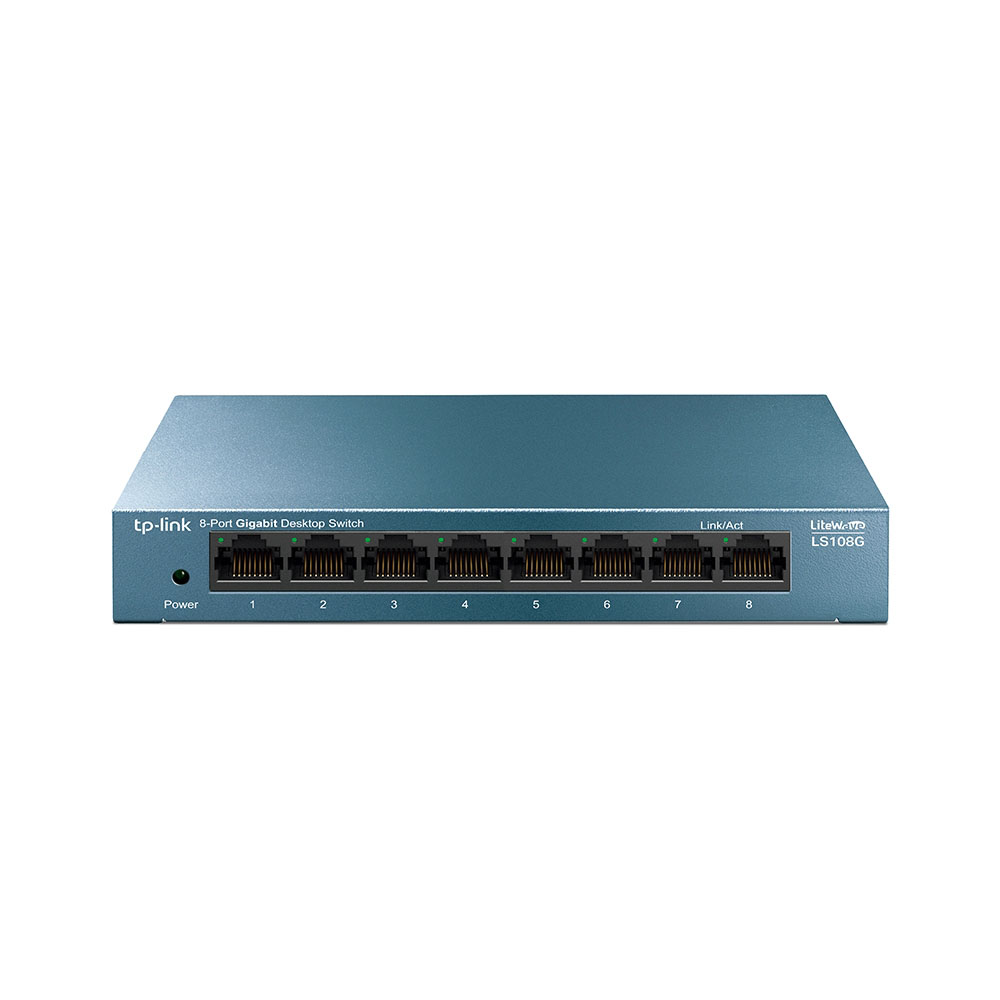

TP-LINK 8-Port Gigabit Desktop Switch (LS108G)

• 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Green Ethernet technology saves power
• IEEE 802.3X flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS function
• Plug and play, no configuration needed

HARDWARE FEATURES Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p Interface 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports Fan Quantity Fanless External Power Supply External Power Adapter (Output: 9VDC / 0.6...A) LED System Power Link/Act indicators per port built into each RJ-45 port Dimensions ( W x D x H ) 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm) Max. Power Consumption 3.7W(220V/50Hz) Max Heat Dissipation 12.617 Btu/hr PERFORMANCE Packet Forwarding Rate 11.9 Mpps MAC Address Table 4K Packet Buffer Memory 1.5 Mb Jumbo Frame 16 KB SOFTWARE FEATURES Advanced Features Green Technology 802.3X Flow Control 802.1P/DSCP QoS Transmission Method Store and Forward OTHERS Certification CE, FCC, RoHS Package Content 8-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Environment Operating Temperature: 0 C~40 C (32 F~104 F) Storage Temperature: -40 C~70 C (-40 F~158 F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing What’s in the box
1x 8-Port 10/100/1000Mbps Desktop Switch
1x Power Adapter
1x Installation Guide
