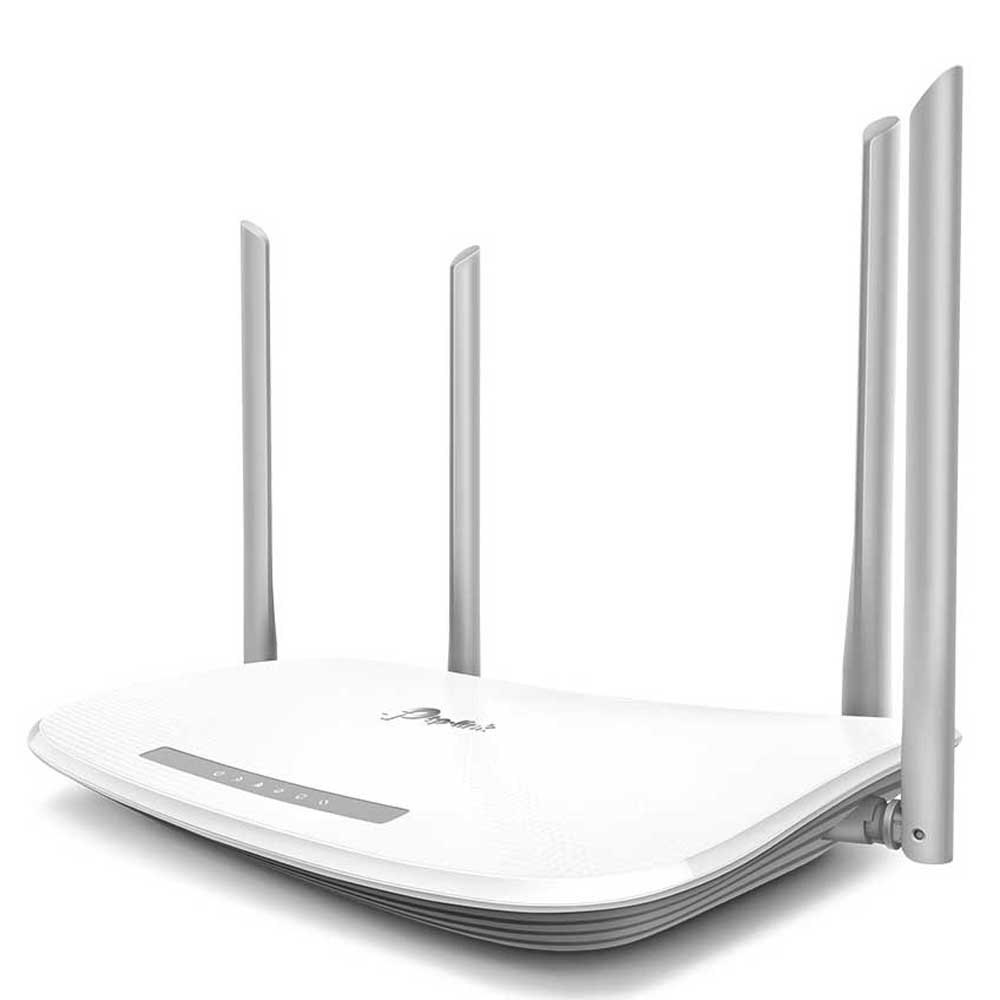

TP-Link – AC1200 Wireless Dual Band Gigabit Router

High-Speed Dual Band WiFi for Better Connectivity Dual Band WiFi up to 1.2 Gbps
EC220-G5 allows you to connect more devices and stream simultaneously with its dual 2.4 GHz and 5 GHz bands. The 5 GHz band delivers speeds up to 867 Mbps, great for bandwidth-intensive applications like video streaming and online gaming. The 2.4 GHz band provides reliable connections for sending emails, web browsing, and other simple tasks. Connect More Devices Simultaneously
Thanks to MU-MIMO technology, EC220-G5 lets your devices achieve ...optimal performance by making communication more efficient. With two simultaneous data streams, every connected device can achieve faster speeds than with standard AC routers. Stream data to multiple devices simultaneously. Extensive WiFi Coverage
Beamforming technology and four high-gain antennas combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device. Create Smart Mesh WiFi with Great Flexibility
Create a unified mesh WiFi network with several EC220-G5s working together or with other EasyMesh-compatible devices for seamless whole home coverage. Robust Network Protection
Higher password safety and enhanced protection against brute-force attacks.
Block inappropriate content and restrict time spent online.
Create separate networks for your visitors or different applications, while keeping your main network secure. Gigabit Broadband Internet Access
The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast and reliable wired connections. Easy Setup and Use
You can set up your device in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet. Remote Management for ISPs
ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Sever) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols. Aginet Solution: End-to-End Management System for ISPs
The Aginet Solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, remote firmware upgrading, and troubleshooting. Specifications HARDWARE FEATURES External Power Supply
12V/1.0A Interface
1 10/100/1000 Mbps WAN Port
3 10/100/1000 Mbps LAN Ports Antenna
4 External Antennas Dimensions ( W x D x H )
9.1 × 5.7 × 1.5 in (230.0 × 144.0 × 37.0 mm) WIRELESS FEATURES Frequency
2.4 GHz and 5 GHz Signal Rate
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps* Transmit Power
CE: <20 dBm(2.4 GHz), <23 dBm (5 GHz) Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Schedule, Wireless Statistics, Access Point mode Wireless Security
WPA/WPA2/WPA3 encryptions Wireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11 k/v Mesh Technology
EasyMesh compatible and supports 802.11 k/v SOFTWARE FEATURES WAN Type
Dynamic IP, Static IP, PPPoE, PPTP, L2TP DHCP
Server, Client, DHCP Client List, Address Reservation Port Forwarding
Vritual Server, Port Triggering, DMZ, UPnP Quality of Service
WMM, Bandwidth Control
VPN Pass-Through PPTP, L2TP, IPSec Access Control
Parental Controls, Local Management Control, Host List, White List, Black List Firewall Security
DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding Management
Local management: WebGUI, Aginet app
Remote management: TR-069, TR-181, TR-111, TR-143, Aginet ACS Protocols
Supports IPv4 and IPv6 OTHERS Environment
Operating Temperature: 0?–40? (32?–104?)
Storage Temperature: -40?–60? (-40?–140?)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing Certifications
CE, RoHS Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Java-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) What’s in the box
1x AC1200 Wireless Dual Band Gigabit Router EC220-G5
1x Power Supply Unit
1x RJ45 Ethernet Cable
1x Quick Installation Guide
