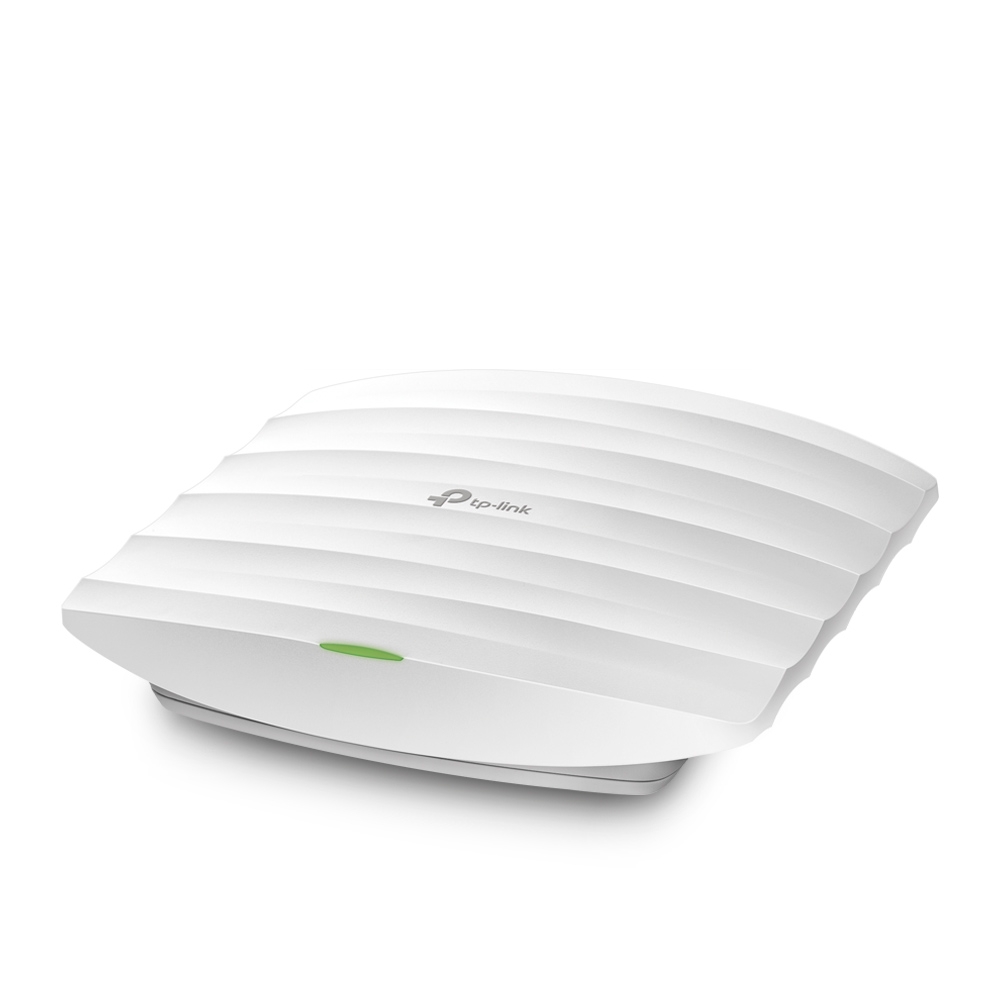

TP-Link AC1750 Wireless MU-MIMO Gigabit Access Point

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.†
High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously.
Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
...PoE Support: Supports both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies. HARDWARE FEATURES
Interface 2 × Gigabit Ethernet (RJ-45) Port
(One port supports IEEE802.3af/at PoE and Passive PoE)
Physical Security Lock Yes
Button Reset
Power Supply
802.3af/at PoE
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 12.3 W
Dimensions ( W x D x H ): (206 × 182 × 37 mm) Antenna Type Internal Omni
2.4 GHz: 3× 3.5 dBi
5 GHz: 3× 4 dBi
Mounting Ceiling /Wall Mounting (Kits included) WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate
5 GHz: Up to 1300 Mbps
2.4 GHz: Up to 450 Mbps
Wireless Functions
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power 2.4GHz: 24 dBm max.
5GHz: 24 dBm max. What’s in the box
AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP265 HD
Gigabit Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
