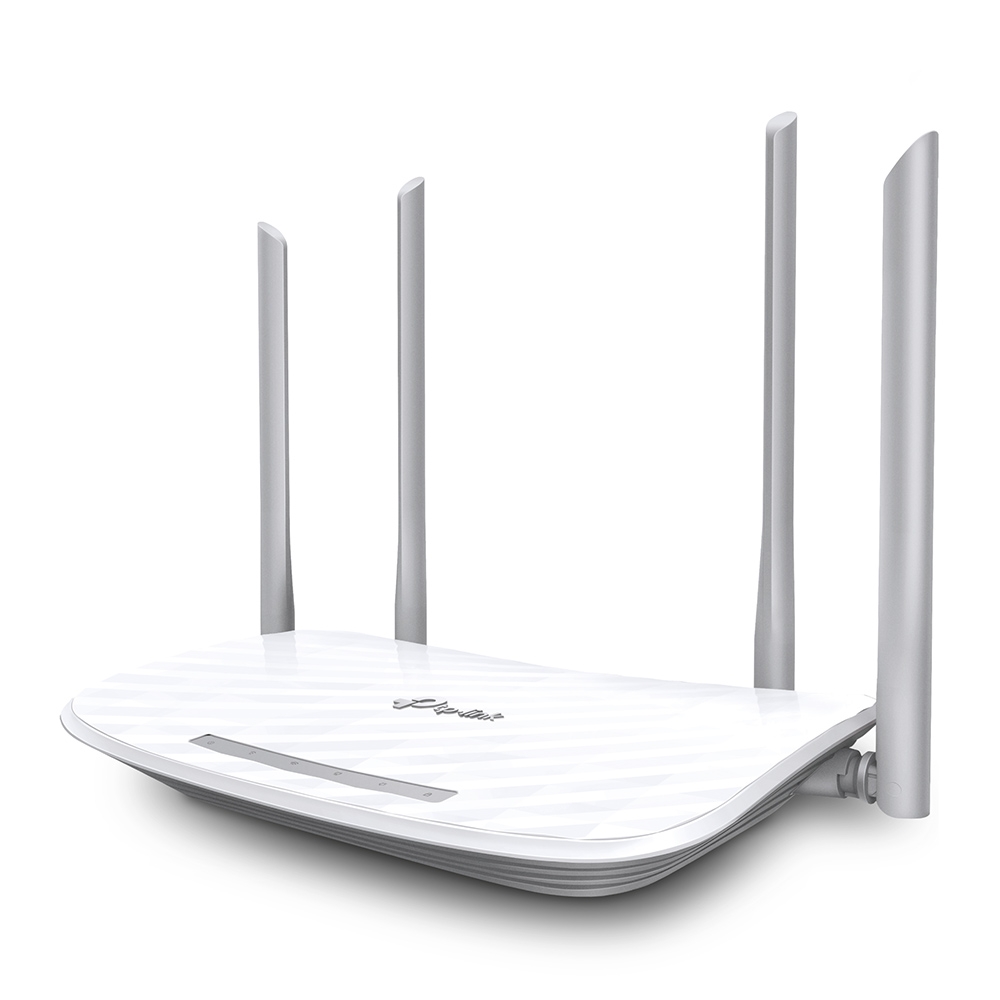

TP-Link Archer C50 AC1200 Dual Band WiFi Router

TP-Link Archer C50 AC1200 Dual Band WiFi Router Interface:
– 4x 10/100Mbps LAN Ports
– 1x 10/100Mbps WAN Port
– USB 2.0 Port Button:
– WPS/Reset Button
– Wireless On/Off Button
– Power On/Off Button External Power Supply:
– 12VDC / 1.5A Dimensions (W x D x H):
– 7.2 x 4.9 x 1.3 in. (182.95 x 123.5 x 32.1 mm) Antenna Type:
– 2x Dual Band External Antennas WIRELESS FEATURES Wireless Standards:
– IEEE 802.11n/g/b 2.4GHz
– IEEE 802.11ac/n/a 5GHz ...Frequency:
– 2.4GHz and 5GHz Signal Rate:
– 2.4GHz: Up to 300Mbps
– 5GHz: Up to 867Mbps Reception Sensitivity
5GHz:
– 11a 54M: -76dBm
– 11ac VHT20 MCS8: -70dBm
– 11ac VHT40 MCS9: -65.5dBm
– 11ac VHT80 MCS9: -61.5dBm 2.4GHz:
– 11g 54M: -76dBm
– 11n HT20 MCS7: -74dBm
– 11n HT40 MCS7: -71d Transmit Power CE:
– less than 20dBm(2.4GHz)
– less than 23dBm(5GHz) FCC:
– less than 30dBm Wireless Functions:
– Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security:
– 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption SOFTWARE FEATURES Quality of Service:
– WMM, Bandwidth Control WAN Type:
– Dynamic IP/Static IP/PPPoE/
– BigPond/ /L2TP(Dual Access) /PPTP(Dual Access) Management:
– Access Control
– Local Management
– Remote Management DHCP:
– Server, Client, DHCP Client List,
– Address Reservation Port Forwarding:
– Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS:
– DynDns, Comexe, NO-IP VPN Pass-Through:
– PPTP, L2TP, IPSec Access Control:
– Parental Control, Local Management Control, Host List, Access Schedule, Rule Management Firewall Security:
– DoS, SPI Firewall
– IP Address Filter/MAC Address Filter/Domain Filter
– IP and MAC Address Binding Protocols Supports:
– IPv4 and IPv6 USB Sharing:
– Support Samba(Storage)/FTP Server/Media Server/Printer Server Guest Network:
– 2.4GHz guest network x 1
– 5GHz guest network x 1 OTHERS Certification:
– CE, FCC, RoHS Package Contents:
– AC1200 Wireless Dual Band Router Archer C50
– Power supply unit
– Resource CD
– Ethernet Cable
– Quick Installation Guide System Requirements:
– Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8/8.1/10, MAC OS, NetWare, UNIX or Linux Environment:
– Operating Temperature: 0 degrees C – 40 degrees C (32 degrees F – 104 degrees F)
– Storage Temperature: -40 degrees C – 70 degrees C (-40 degrees F – 158 degrees F)
– Operating Humidity: 10 percent – 90 percent non-condensing
– Storage Humidity: 5 percent – 90 percent non-condensing What’s in the box
1 x TP-Link AC1200 Wireless Dual Band Ethernet Router
