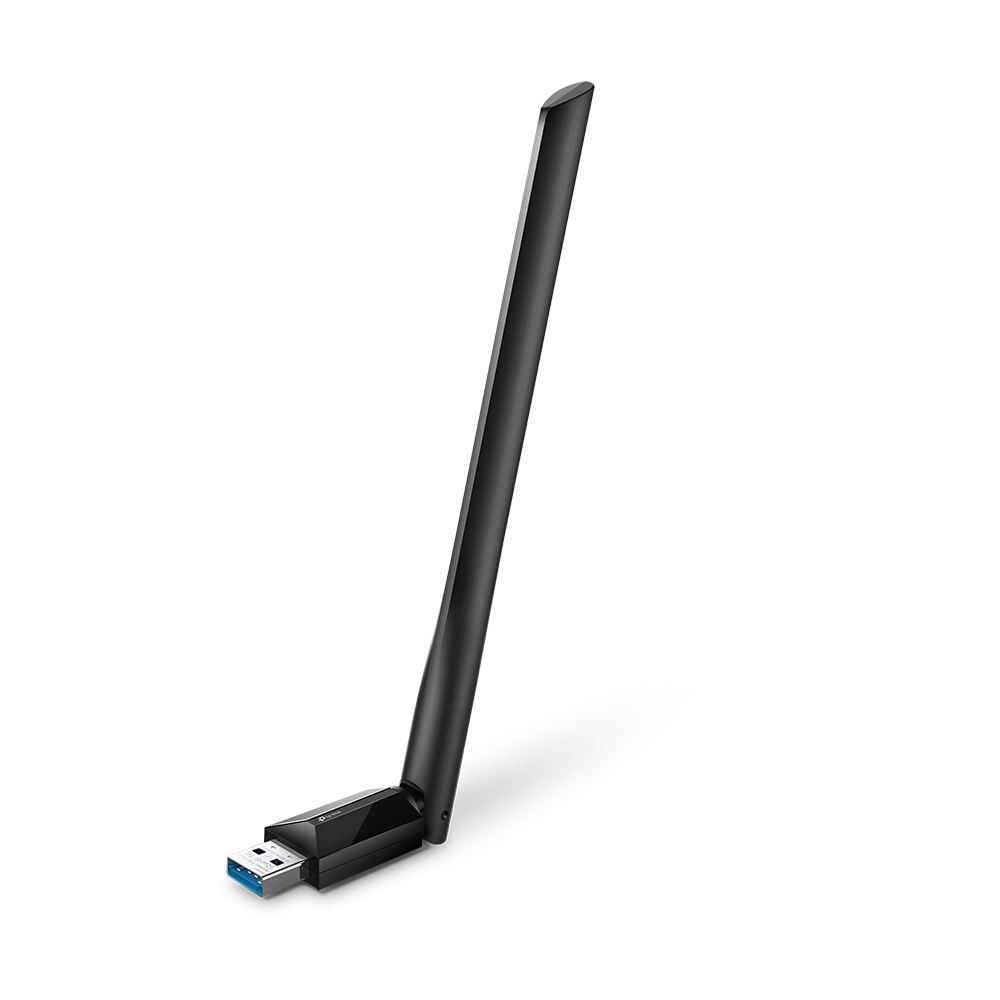

TP-LINK Archer T3U Plus – AC1300 High Gain WI-FI Dual Band USB Adapter

AC1300 High Gain Wireless Dual Band USB Adapter AC1300 Lightning-Fast Speed — AC1300 (867 Mbps on the 5 GHz band or 400 Mbps on the 2.4 GHz band) dual-band Wi-Fi to ensure all your devices run at full speed
MU-MIMO Technology — Improves the throughput and efficiency of the whole network with MU-MIMO technology
Dual-Band Wireless — The 2.4 GHz and 5 GHz bands provide flexible connectivity, giving your devices access to the latest dual-band Wi-Fi router for faster speed and extended range
High-Gain Antennas — Advanced ...external high-gain antennas greatly enhance the reception and transmission signal strength of the USB adapter
Supports the Latest Operating Systems — Fully compatible with Windows 10/8.1/8/7/XP and macOS Powerful High-Gain Wi-Fi Enhance Wherever You Are
AC1300 High Gain Wireless Dual Band USB Adapter – Archer T3U Plus Higher Speeds, Better Connections
The Archer T3U Plus receives Wi-Fi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for up to 400 Mbps of surfing, emailing, and social media, or switch to 5 GHz for up to 867 Mbps of gaming, HD streaming, and large file downloads. Distinguished Antennas Architecture
With an advanced serial high-gain antenna structure, the Archer T3U Plus is able to maximize data transmission and reception efficiency, greatly increase reception range and provide a stable Wi-Fi connection throughout your home. Boosted Throughput with MU-MIMO
MU-MIMO technology provides two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router. Adjustable, Multi-Directional Antenna
Rotate and adjust the multi-directional antenna to improve user experience and performance in different environments. Easy Setup – A friendly user interface ensures simple installation.
Advanced Security – WPA/WPA2 encryption standards keep your wireless connection safe from intruders.
Operating System – Supports operating systems including Windows 10/8.1/8/7 and macOS. Specifications
Hardware Features
Interface : USB 3.0
LED : Status
Dimensions : 2.28 × 0.71 × 6.83 in (57.8 × 18 × 173.4 mm)
Antenna : 1 External High Gain Antenna Wireless Features
Wireless Standards : IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz Signal Rate :
5 GHz:
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic) Reception Sensitivity :
5 GHz:
11ac VHT80: -62dBm
11ac VHT40: -64dBm
11ac VHT20: -68dBm
11n HT40: -71dBm
11n HT20: -73dBm
11a 54Mbps: -77dBm
2.4 GHz:
11n HT40: -70dBm
11n HT20: -71dBm
11g 54Mbps: -73dBm
11b 11Mbps: -87dBm Transmit Power :5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP)
2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP)
Wireless Modes : Infrastructure mode
Wireless Security : WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Others
Certification : FCC, CE, RoHS
System Requirements : Windows 10/8.1/8/7 (32/64 bit)
Environment :
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing What’s in the box
AC1300 High Gain Wireless Dual Band USB Adapter
Quick Installation Guide
Resource CD
