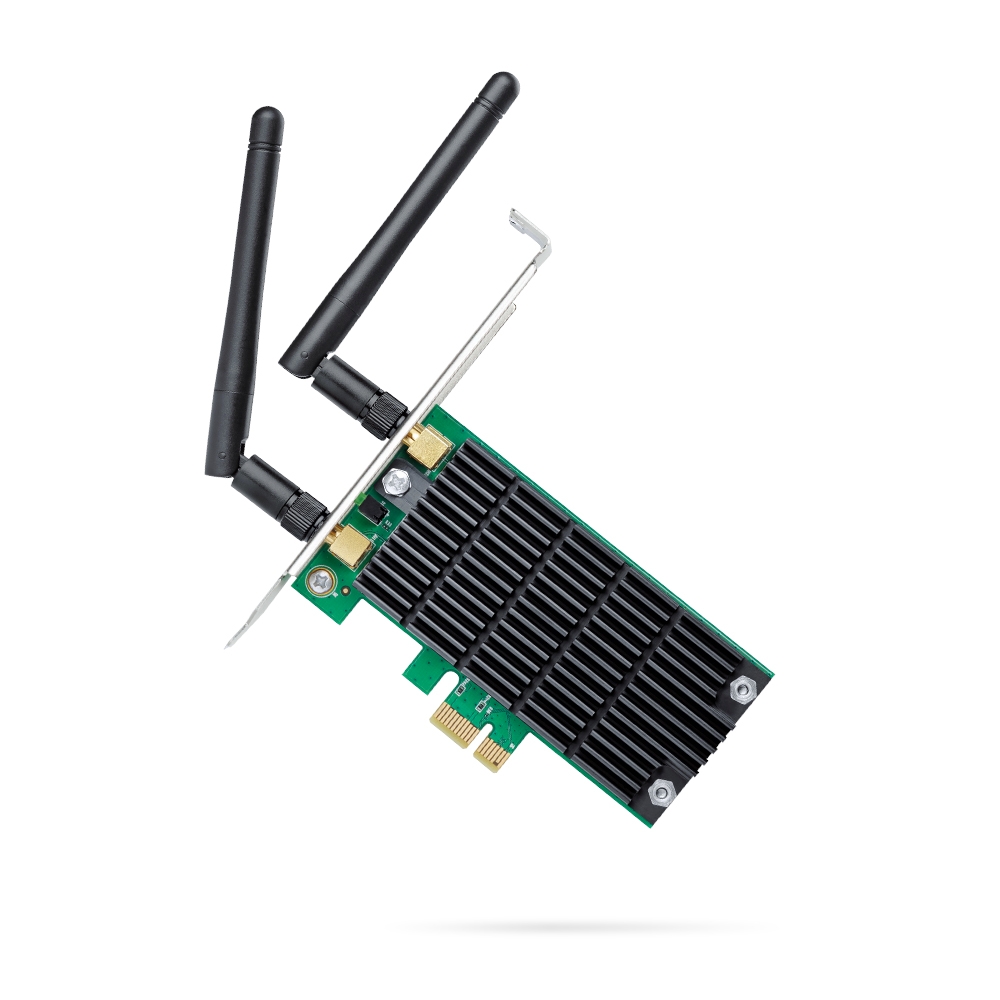

TP-LINK Archer T4E – AC1200 Wireless Dual Band PCI Express Adapter Card

AC1200 Wireless Dual Band PCI Express Adapter
Archer T4E Key Features
Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
High Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)
802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
Beamforming – Wi-Fi signals are strengthened towards certain direction where client exists
Multiple-Size Brackets – Low profile and full ...heigh brackets are both provided, suitable for all PCs
2×2 MIMO – Users can easily access to high-speed wireless connection
Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability AC1200
Wireless Dual Band
PCI Express Adapter
Archer T4E 802.11ac – Dual Band Wi-Fi for Faster Connections
TP-LINK’s Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications. Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range. Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan. External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage. Easy Setup
Simple software installation with the intuitive Utility on the provided CD Advanced Security
WAP,WPA/WPA2,WPA-PSK/WPA2-PSK encryption standards ensure your data is safe from intruders Operating System
Supports Windows 10/8.1/8/7/XP(32/64 bit) Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases Specifications
Hardware Features
Interface : PCI Express
Dimensions ( W x D x H ) : 4.8 x 4.5 x 0.85 in (120.8115.221.5 mm)
Antenna Type : 2 Dual Band Detachable Antennas Wireless Features
Wireless Standards : IEEE 802.11ac/n/a 5 GHz , IEEE 802.11n/g/b 2.4 GHz Signal Rate
5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic) 2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic) Reception Sensitivity
5 GHz :
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm 2.4GHz :
11n HT40: -67.5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86.5 dBm Transmit Power : 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP), 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
Wireless Modes : Infrastructure mode
Wireless Security : Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology : DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM Others
Certification : CE, FCC, RoHS
System Requirements : Windows 10/8.1/8/7/XP (32/64bit)
Environment : Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing What’s in the box
AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD
