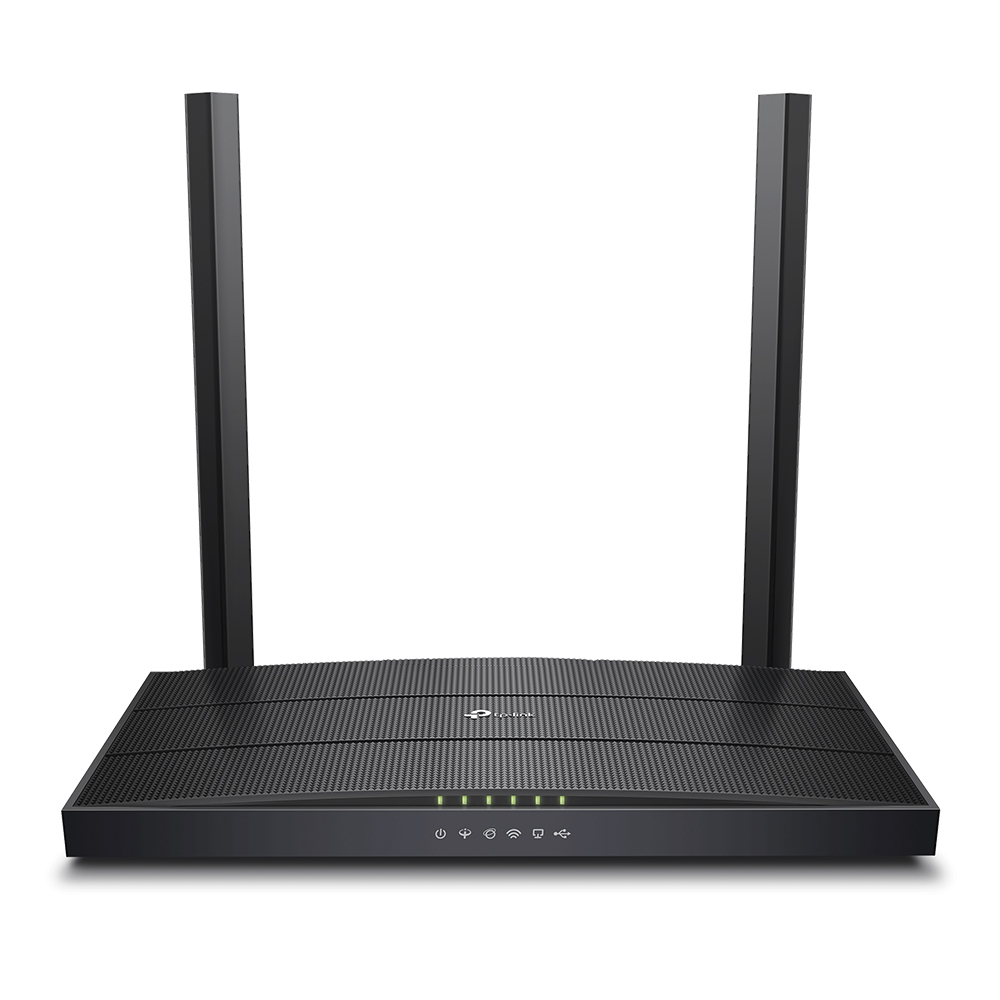

TP-Link Archer VR400 AC1200 Wireless MU-MIMO VDSL/Fibre Modem Router

TP-Link ARCHER VR400 V3 AC1200 Wireless MU-MIMO VDSL/Fibre Modem Router Speedy WiFi – Experience superb wireless connections with 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) dual-band WiFi
Superior Range – Two fixed omnidirectional antennas with Beamforming technology provide stable wireless connections and optimal coverage
Versatile Connectivity – Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, as well as fibre, cable, and 3G/4G internet services
Whole-Home Coverage with OneMeshTM – Works alongside TP-Link OneMeshTM products to create a flexible Mesh network
MU-MIMO ...Technology – Simultaneously transfers data to multiple devices, reducing wait times
Full Gigabit Ports – Take full advantage of broadband speeds up to 1 Gbps
Tether App– TP-Link Tether provides the easiest way to access and manage your router on your iOS and Android devices
Superfast WiFi Up to 1.2 Gbps Archer VR400 unlocks the full potential of your internet connection by providing combined dual band WiFi speeds of up to 1.2 Gbps, including 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, eliminating lag and buffering from your online activities.
Two dedicated WiFi networks support more devices and reduce wireless interference to create stable connections. High-Speed VDSL Modem Routerv Advanced VDSL2 technology allows Archer VR400 to deliver impressive VDSL broadband speeds of up to 100 Mbps—nearly 4× faster than ADSL2+. Archer VR400 serves as a DSL modem and wireless router, combining two devices in one.
*The integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, and ADSL. Versatile Backup Connectivity With multiple ports, Archer VR400 provides you with a variety of options when connecting to the internet. As a backup, the LAN/WAN port allows Archer VR400 to accept connections from cable and fiber modems via an Ethernet cable. Additionally, the USB port supports 3G/4G dongle connections. Flexibly Create a Whole Home WiFi OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMeshTM range extender to a OneMesh™ router. No more searching around for a stable connection. Superior Range and Stability Two high-performance external antennas help Archer VR400 create an expansive home network. Advanced Beamforming technology automatically locates wireless devices and forms targeted, highly efficient wireless connections. MU-MIMO for Higher Efficiency MU-MIMO technology serves multiple devices at once, reducing wait time, increasing WiFi throughput for every device, and making each stream more efficient Blazing Fast Wired Performance To help your wired devices achieve peak performance, the router’s Gigabit Ethernet ports operate 10× faster than standard Ethernet. Full Gigabit ports provide rapid, reliable wired connections to computers, TVs, and game consoles. HARDWARE FEATURES
Interface 3× 10/100/1000Mbps RJ45 LAN Ports,
1× 10/100/1000Mbps RJ45 WAN/LAN Port,
1× RJ11 Port,
1× USB 2.0 Port
Button WPS Button, Wi-Fi On/Off Button, Reset Button
External Power Supply 12V/1A
IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab
VDSL2 Standards ITU G.993.2, Up to 17a profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
ADSL Standards Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ADSL2 Standards ITU-T G.992.3 (G.DMT.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 8.5 × 4.9 × 1.2 in (215.6 × 124.6 × 31.6 mm)
Antenna Type 2× fixed Omini-Directional antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 867Mbps at 5 GHz, 300Mbps at 2.4 GHz
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power <20dBm (2.4 GHz), <23dBm (5 GHz)
Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule
SOFTWARE FEATURES
Security NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Operating Modes VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router
Management Web-Based Configuration (HTTP / HTTPS ), Remote management,
Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS DynDns, NO-IP, TP-Link
VPN OpenVPN, PPTP VPN, IPSec VPN
Protocols Supports IPv4 and IPv6
ATM/PPP Protocols ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Advanced Features Parental Controls, Network Address Translation(NAT), Port Mapping
(Grouping), Static Routing, DDNS, IGMP V1/V2/V3
Guest Network 2.4GHz Guest Network, 5GHz Guest Network
OTHERS
Certification CE, RCM, RoHS
Package Contents AC1200 Wireless MU-MIMO VDSL/ADSL Modem Router Archer VR400
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, macOS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing What’s in the box
1 x TP-Link Router
1 x Power Cord
1 x Lan Cable
1 x Product Manual
