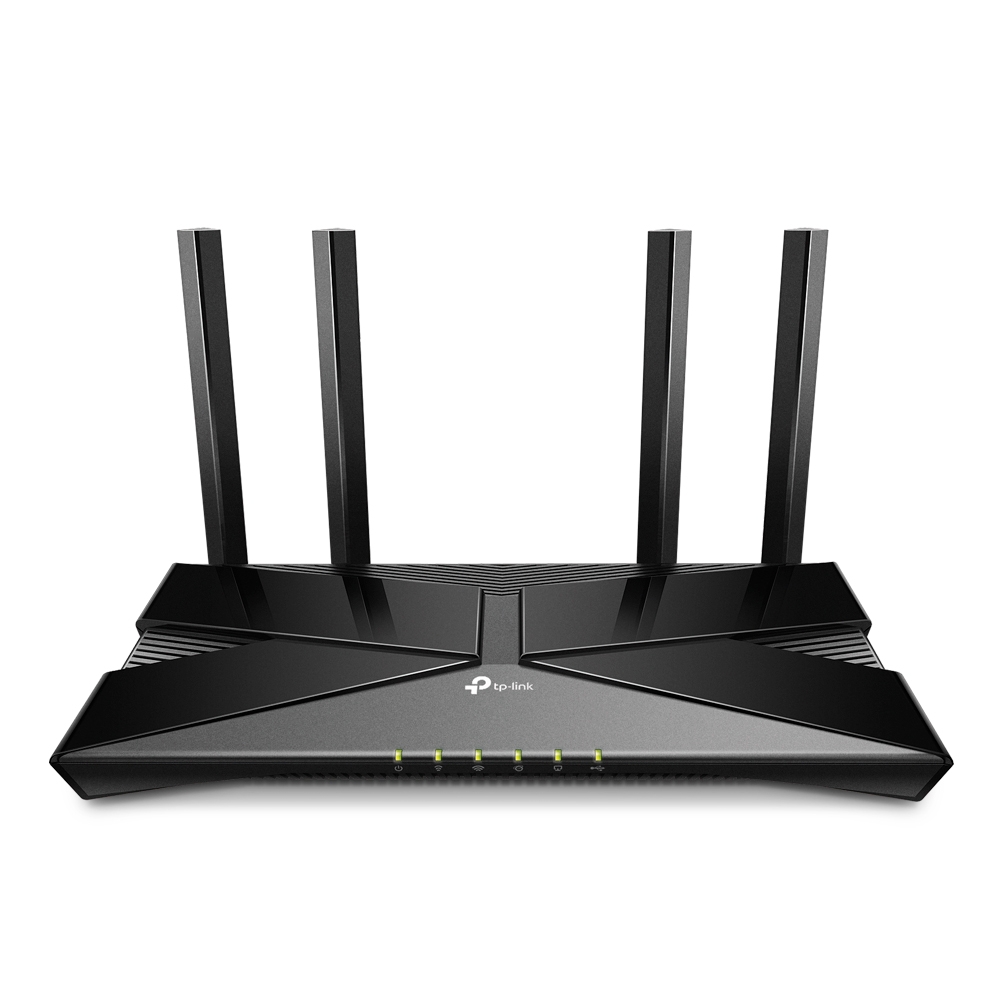

TP-Link ARCHERAX20 – AX1800 Dual Band Gigabit Router, New WI-FI 6 Tech

AX1800 Dual-Band Wi-Fi 6 Router
Archer AX20 Dual-Band Wi-Fi 6: Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8 Gbps.
Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.
Quad-Core Processing: The 1.5 GHz quad-core CPU ensures communications between your router and all connected devices are ...smooth.
Extensive Coverage: Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away.
Increased Battery Life: Target Wake Time technology reduces your devices’ power consumption to extend their battery life.
USB Easy Sharing: A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage.
Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
Backward Compatible: Supports all previous 802.11 standards and all Wi-Fi devices. Explore the New Era of Wi-Fi – AX1800 Dual-Band Wi-Fi 6 Router – Archer AX20 Faster Speeds. More Connected Devices.
Powerful Processing.
Dual-Band Wi-Fi 6
Up to 1.8 Gbps Speeds
Connect More, Stay Fast
Quad-Core CPU
Reduced Power Consumption
Refined Password Security Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. Dual-Band Wi-Fi 6 Up to 1.8 Gbps
Every application feels more fluid with drastically improved Wi-Fi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading. Wi-Fi 4, 2.4 GHz
40 MHz, 2×2 300 Mbps
Wi-Fi 6, 2.4 GHz
40 MHz, 2×2 574 Mbps
90% Faster Wi-Fi 5, 5 GHz
80 MHz, 2×2 867 Mbps
Wi-Fi 6, 5 GHz
80 MHz, 2 ×2 1201 Mbps
40% Faster Extensive Wi-Fi Coverage with Advanced Technologies
Beamforming technology, independent Front-End Module, and four high-gain antennas combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.
Beamforming – Independent FEM – 4× Antennas Connect More, Stay Fast
Easily handle dozens of devices streaming and gaming at the same time—OFDMA future-proofs your home networks by providing greater capacity to connect more devices.
OFDMA
OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency. 1.5 GHz Quad-Core CPU
Powerful Processing for Minimal Latency
A powerful 1.5 GHz quad-core CPU generates minimal latency within your network even under heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
Archer AX20 – 1.5 GHz – Quad-Core CPU Versatile Connectivity
Easy File Sharing – Share music, movies, and documents easily on every device across your home network.
Full Gigabit Ports – Connect to your devices using a wired network for robust stability. WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi. Easily Setup and Manage Wi-Fi with the Tether App
Setup your Wi-Fi through the TP-Link Tether app in 1 minute. Manage network with versatile tools provided by TP-Link HomeCare Pro including QoS, online time limits, antivirus, and more. Specifications
Hardware Features
Processor : 1.5 GHz Quad-Core CPU
Interface : 1× 1000/100/10 Mbps WAN Port
4× 1000/100/10 Mbps LAN Ports
1× USB 2.0 Port
Button : WPS/Wi-Fi On/Off Button
Reset : Button
Power On/Off Button
LED On/Off Button
External Power Supply : 12 V / 1.5 A
Dimensions ( W x D x H ) : 10.2 × 5.3 ×1.5 in. (260.2 × 135.0 × 38.6 mm)
Antenna : 4× Fixed Omni-Directional Antennas Wireless Features
Wireless Standards :
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz Frequency :
5 GHz
2.4 GHz
Signal Rate :
1201 Mbps (5 GHz)
574 Mbps (2.4 GHz)
Compatible with 802.11a/b/g/n/ac Wi-Fi standards Transmit Power : CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
Wireless Functions : Enable/Disable Wireless Radio, DFS(JP Version Only), Guest Network, MU-MIMO, OFDMA
Wireless Security : WPA, WPA2, WPA3 Software Features
WAN Type : Dynamic IP/Static IP/PPPoE
Management : Parental Control, Guest Network
DHCP : Server, DHCP Client List, Address Reservation
Dynamic DNS ; DynDns, NO-IP, TP-Link
Guest Network : 2.4 GHz guest network × 1, 5 GHz guest network × 1
NAT : Port Forwarding, Port Triggering, UPnP, DMZ Others
Certification : FCC, CE, RoHS
System Requirements :
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access) Meet the 6th Generation of WiFi
Wi-Fi 6 is designed to improve speed, increase efficiency and reduce congestion in heavy bandwidth usage scenarios What is Wi-Fi 6? (as known as AX WiFi)
Wi-Fi 6 is the next generation standard in WiFi technology. Wi-Fi 6 also known as “AX WiFi” or “802.11ax WiFi” builds and improves on the current 802.11ac WiFi standard. Wi-Fi 6 was originally built in response to the growing number of devices in the world. If you own a VR device, multiple smart home devices, or simply have a large number of devices in your household, then a Wi-Fi 6 router might just be the best WiFi router for you. In this guide, we’ll go over Wi-Fi 6 routers and break down how they’re faster, increase efficiency, and are better at transferring data than previous generations. Explosively Fast WiFi up to 9.6 Gbps – Ultra-Smooth Streaming
Wi-Fi 6 uses both 1024-QAM to provide a signal packed with more data (giving you more efficiency) and a 160 MHz Channel to provide a wider channel to make your WiFi faster. Experience stutter-free VR or enjoy stunningly vivid 4K and even 8K streaming. 4x More Capacity for More Devices – Ideal for Crowded Networks
Wi-Fi 6 uses 8×8 uplink/downlink, MU-MIMO, OFDMA, and BSS Color to provide up to 4x larger capacity and to handle more devices. Come home to a virtually flawless smart home experience or throw house parties with a network built to handle all your guests and their devices. Pack More Data ­- with 1024-QAM
25% faster than 256-QAM
With 1024-QAM, each symbol carries 10 bits rather than 8 bits, improving raw speeds by 25% compared to 802.11ac 256-QAM. Watch Netflix at home or live stream Twitch Broadcasts from your home computer – with 1024-QAM, streaming just got that much better. More Speed and Greater Stability
4x Longer OFDM Symbol
OFDM is a symbol that transmits data. It divides its data among smaller sub carriers for more stability and wider coverage. AX WiFi uses a 4x longer OFDM symbol to create 4x more sub carriers. Because of this, Wi-Fi 6’s longer OFDM symbol provides increased coverage and makes it 11% faster. Enjoy rock solid coverage from your garage to the second story and get ultra-fast connections for all your smart home, mobile, gaming and desktop devices in between. More Bandwidth on a Wider Channel
160 MHz Channel Width
Wi-Fi 6 expands the WiFi band from 80 MHz to 160 MHz, doubling the channel width and creating a faster connection from your router to the device. With Wi-Fi 6, you can enjoy 8K movies, large file downloads and uploads, and responsive smart home devices – all without buffering. Increased Efficiency with OFDMA
Make Latency A Thing of The Past
The Wi-Fi 6 standard uses OFDMA for increased efficiency. Imagine your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac WiFi, each delivery truck or “packet” could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both uploads and downloads. Connect to More Devices Simultaneously
With 8 x 8 MU-MIMO
With traditional MU-MIMO, multiple users can access the router simultaneously without any noticeable decreases in bandwidth quality– up to a point. However, with 8 x 8 MU-MIMO, more than 8 streams are available for users to choose from. And whereas 802.11ac MU-MIMO only works for downloads, 8 x 8 MU-MIMO works with both uploads and downloads. This means that whether you’re streaming, downloading, torrenting, playing VR/AR, MMO’s or RPG’s; with Wi-Fi 6’s 8 streams, there’s more than enough bandwidth for everyone. Minimize WiFi Conflicts with Your Neighbor
With Wi-Fi 6’s BSS Color
Interference from your neighbors’ wireless networks can cause issues with your wireless signal. BSS (Base Service Station) Color, marks frames from neighboring networks so that your router can ignore them. If you’ve ever lived in an apartment or close to your neighbors, this means that your router just became that much more efficient – no extra work required. Reduce Power Consumption
With Target Wake Time
Target Wake Time (TWT) allows devices to negotiate when and how often they will wake up to send or receive data, increasing device sleep time and substantially improving battery life for mobile and IoT devices. What’s in the box
Wireless Router Archer AX20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
