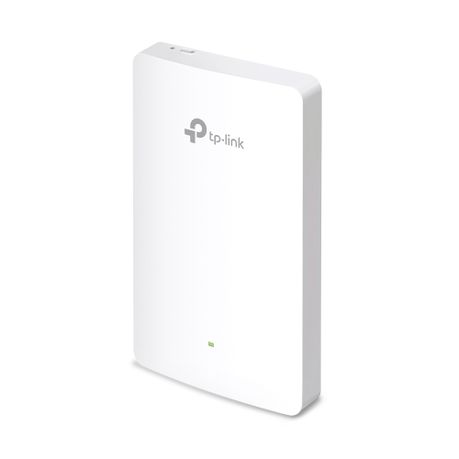

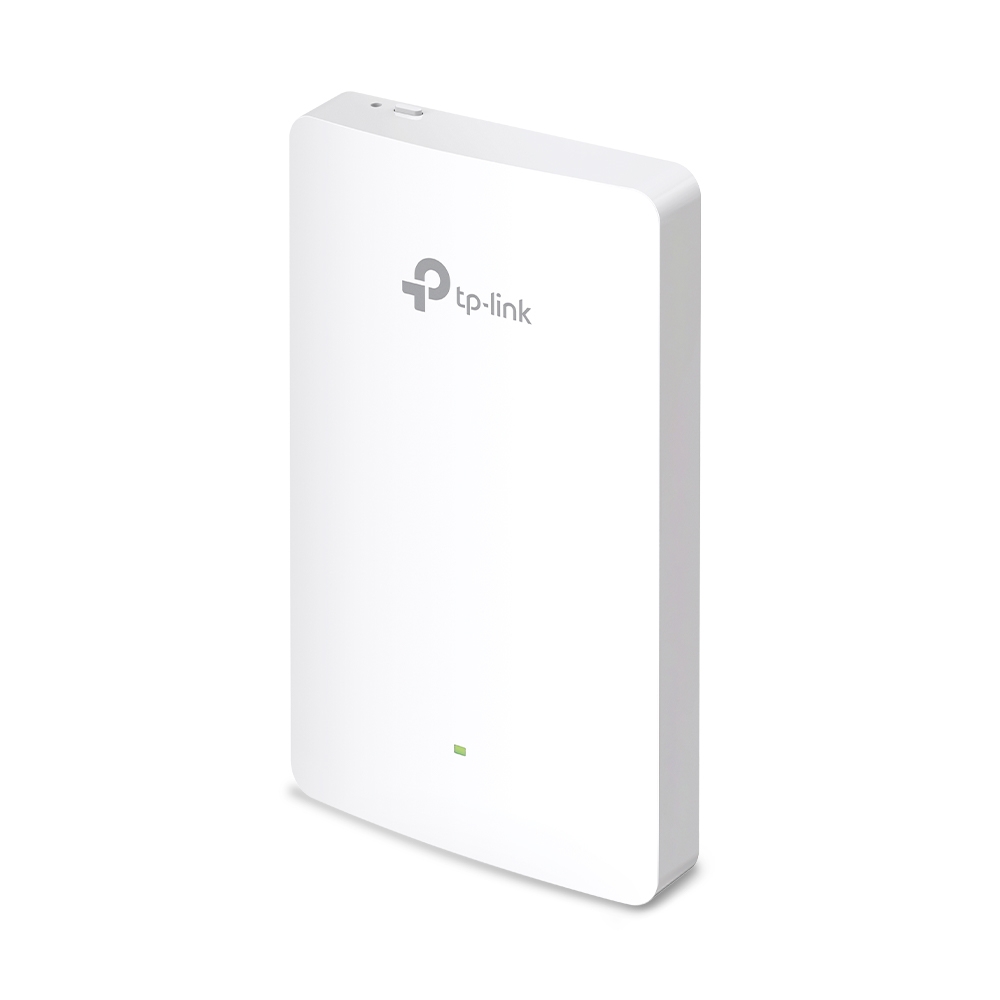

TP-Link AX1800 Wall Plate WiFi 6 Access Point – TL-EAP615 Wall

Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

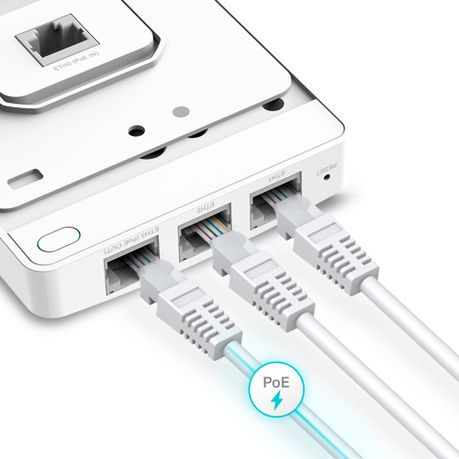

Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
Centralized Management: Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.†
...Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support. Superior WiFi 6 Speeds
Meet the demands for smoother online activities and more device connections. The latest 802.11ax technologies* such as 1024 QAM and Long OFDM Symbol allows the EAP to boost overall speeds up to 1775 Mbps**. High-Performance Connectivity for
Better User Experience

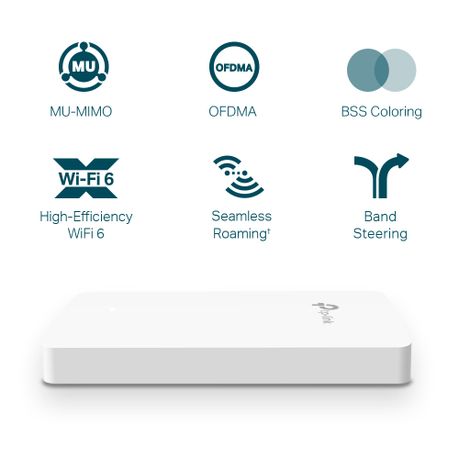

The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency*. MU-MIMO
OFDMA
BSS Coloring
High-Efficiency
WiFi 6
Seamless
Roaming†
Band
Steering Seamless Integrated into Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. More than Speed, Security Matters
Safeguard your network and data against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks. Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management. Guest Network with Facebook Wi-Fi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher)† and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page. WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides strengthened data security for previously unsecured and open WiFi hotspots. Hardware features:
Interface
• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
Power Consumption EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)

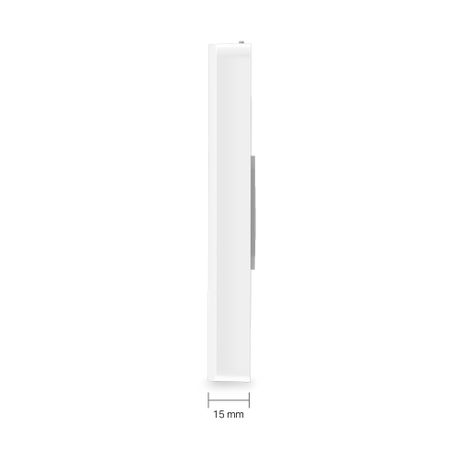

Dimensions ( W x D x H ) 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz Signal Rate
• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps Wireless Functions
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming†
• Beamforming
• MU-MIMO
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP Wireless Security • Captive Portal Authentication†
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, EIRP) • FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)
MANAGEMENT
Omada App Yes Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS Package Contents • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
• Installation Guide
• Mounting Kits System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Environment • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing What’s in the box
1 x TP-LINK EAP-615
1 x Product Info
