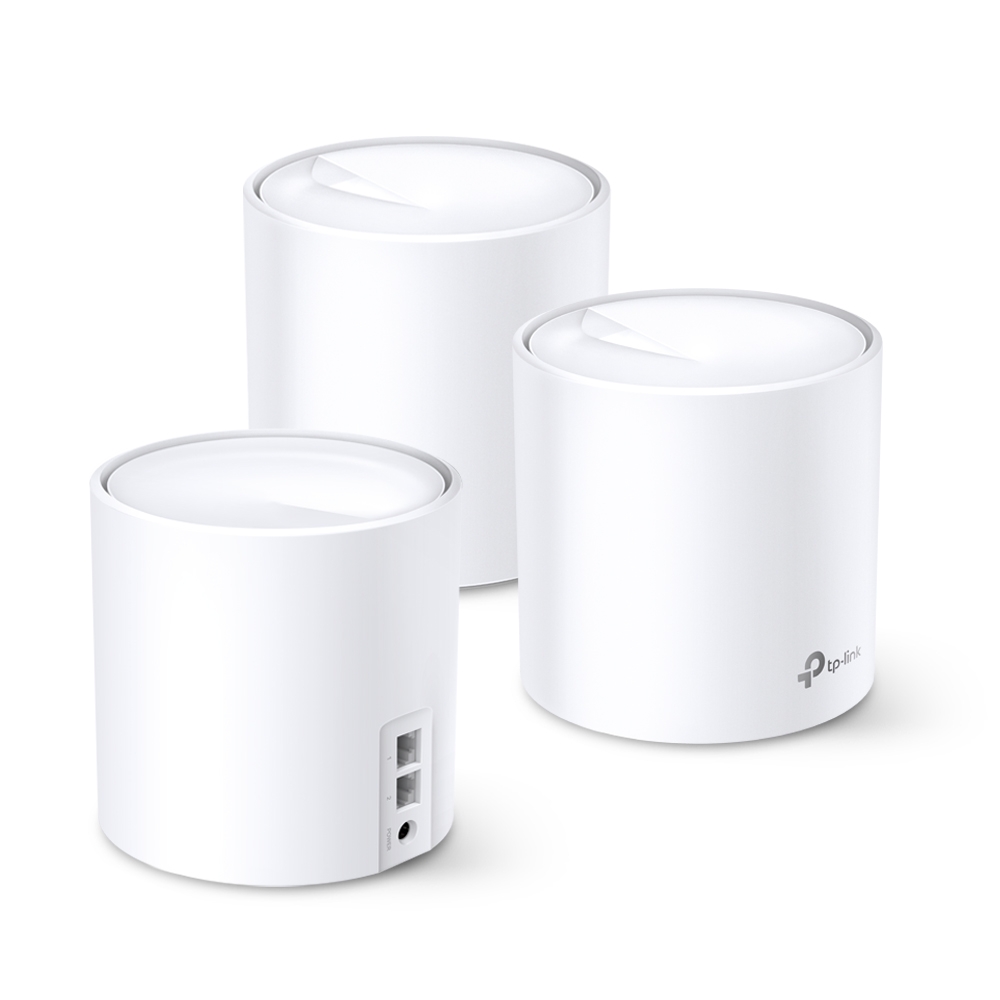

TP-LINK AX1800 Whole Home Mesh Wi-Fi System – 3 Pack

Faster Connections: Wi-Fi 6 speeds up to 1,800 Mbps—1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.
Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6.
Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting.
One Unified Network: Multiple units form a whole-home network that auto-selects the best ...connection as you move around your home.
Total Security: WPA3 encryption and TP-Link HomeCareTM provide personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS) to ensure a safer online experience.
Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step. WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4-6 Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity High
Dual-Band
Distribute devices to different bands for optimal performance MU-MIMO
Silmultaneously communicates with multiple MU-MIMO clients OFDMA
Silmultaneously communicates with multiple WiFi 6 clients 4 Streams
More than enough bandwidth for connected devices
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor 1 GHz Quad-Core CPU
Ethernet Ports 2× Gigabit Ports *Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
Power 12 V ? 1.2 A
SECURITY
WiFi Encryption WPA
WPA2
WPA3
Network Security SPI Firewall
Access Control HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeCare™
Learn More>
Parental Controls HomeCare™ Parental Controls
Custom Profiles
Content Filtering
URL FIltering
Time Limit
Time Schedule (Bed Time)
Log Insight
Usage Monitor
Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service HomeCare™ QoS
QoS by Device
QoS by Application
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App PHYSICAL
Dimensions (W×D×H)
(110 × 110 × 114 mm) OTHERS
System Requirements Android 4.4 or later
iOS 9.0 or later
Certifications CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz) What’s in the box
1 Deco X20 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide
