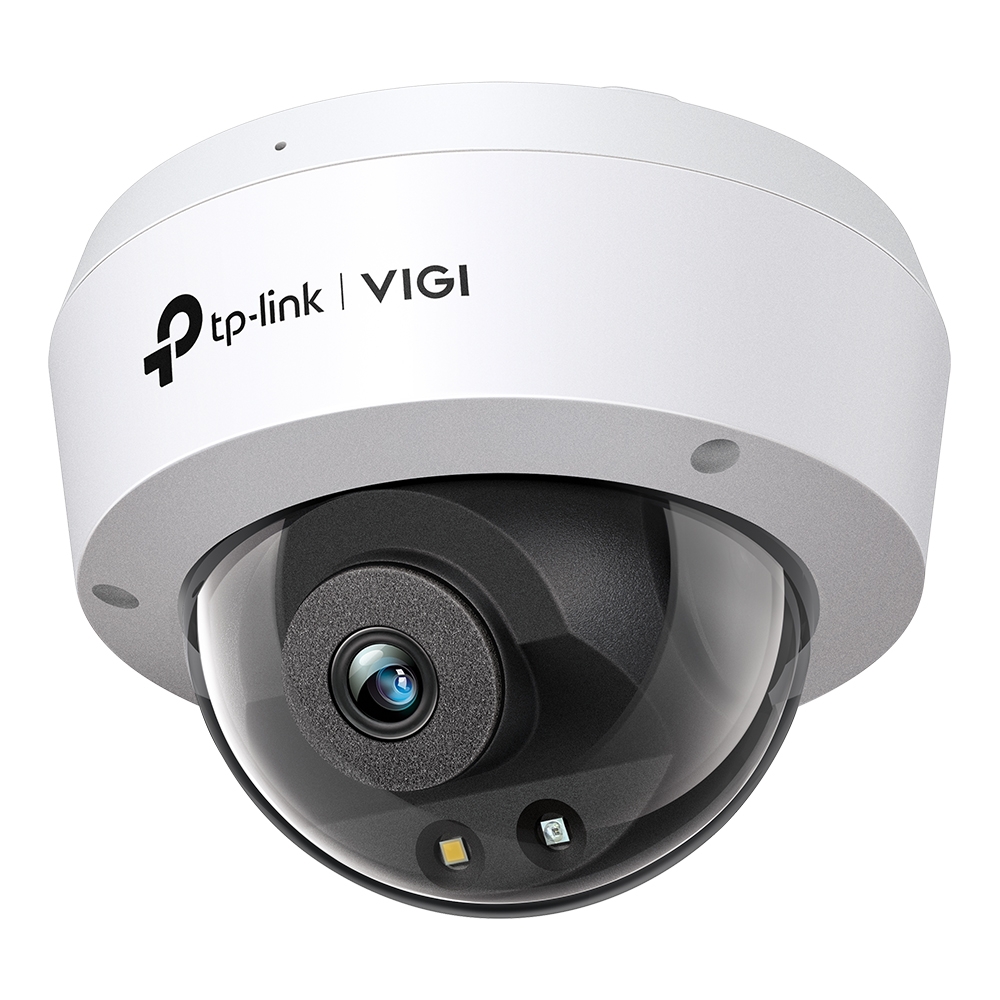

TP-Link C230-2.8 VIGI 3MP Full-Color Dome Network Camera (2.8mm Lens)

C230-2.8
– 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
– 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
– Human and Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
– Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area ...you’ve set, obstructs the camera, or removes/abandons objects.
– Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
– IK10 Vandal-Proof and IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
– H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
– Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
– PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
– Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. All The Colors, All The Time
3MP Full-Color Dome Network Camera
VIGI C230-2.8 Features:
Clarity and Colors, All in One:
– Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human and Vehicle Classification:
– Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business. Smart Detection:
– Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
1/ Motion Detection
2/ Intrusion Detection
3/ Object Removal Detection
4/ Line-Crossing
5/ Camera Tampering
6/ Object Abandoned Detection
No more silent surveillance. Built-In Microphone:
– The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
IK10 Vandal-Proof and IP67 Waterproof:
– With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
More compression. More savings. Same quality:
– Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
(Please note that calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.)
Never miss a detail. SmartVid-Smart Video Enhancement:
– VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Discover the best way to power your camera. PoE/12V DC:
– Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Flexible Management:
– Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
Flexible Installation Gives You More Convenience:
– Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.
One system. Full security. Run your business with peace of mind:
– The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound. Specifications:
CAMERA
– Image Sensor: 1/2.8” Progressive Scan CMOS
– Lens: 2.8mm
– Aperture (2.8mm): F1.6
– Lens Mount: M12
– Viewing Angle (2.8mm):
a) Horizontal FOV: 107.5 degree
b) Vertical FOV: 57.2 degree
c) Diagonal FOV: 128.7 degree
– Day/Night Mechanism: IR Cut Filter
– Minimum Illumination: Color: 0.005 Lux ; 0 Lux with IR/White Light
– Pan/Tilt Range:
a) Pan: 0 degree to 360 degree
b) Tilt: 0 degree to 85 degree
c) Rotate: 0 degree to 360 degree
– Weatherproof Rating: IP67
– Digital Noise Reduction: 3D DNR
– WDR: DWDR
NETWORK
– Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
– Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
– API: ONVIF
– Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
– Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
GENERAL
– Operating Temperature: -30 Degree Celsius – 60 Degree Celsius
– Certifications : CE/BSMI/VCCI/ONVIF
– Material: Plastic
– General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
– Power Supply:
a) 12V DC +/- 5%, 5.5mm Coaxial Power Plug
b) PoE (802.3af/at, class 0)
– Power Consumption:
a) 12V DC: Max 4.7W
b) PoE: Class 0
– Vandal Resistant: IK10
ILLUMINATOR
– IR LED:
1/ Quantity: 1
2/ Range: 30m
3/ Wavelength: 850nm
– White LED:
1/ Quantity: 1
2/ Range: 30m
VIDEO/IMAGE
– Video Compression:
a) Main Stream: H.265+/H.265/H.264+/H.264
b) Sub-Stream: H.265/H.264
– Frame Rate and Resolutions:
1/ Main Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720
2/ Sub-Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 704×576, 640×480, 352×288, 320×240
– Max. Resolution: 3MP (2304 × 1296)
– Video Streaming: Main Stream, Sub-Stream
– Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90 degree/270 degree)
– Image Enhancement: BLC/3D DNR/HLC/SmartIR
– Video Bit Rate: 64Kbps to 4Mbps
– Day/Night Switch: Day/Night/Auto/Schedule
SMART FEATURE-SET
– Smart Event: Human and Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
– Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
– Linkage Method: Trigger Notification: ONVIF, HTTPS
– Region of Interest: 1 Region
INTERFACES
– Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port
– Button: –
– Video Output: –
– On-board Storage: –
– Built-in Microphone: Yes What’s in the box
1 x VIGI C230-2.8 Network Camera
1 x Waterproof Cable Attachments set
1 x Mounting Accessories set
1 x Quick Start Guide
