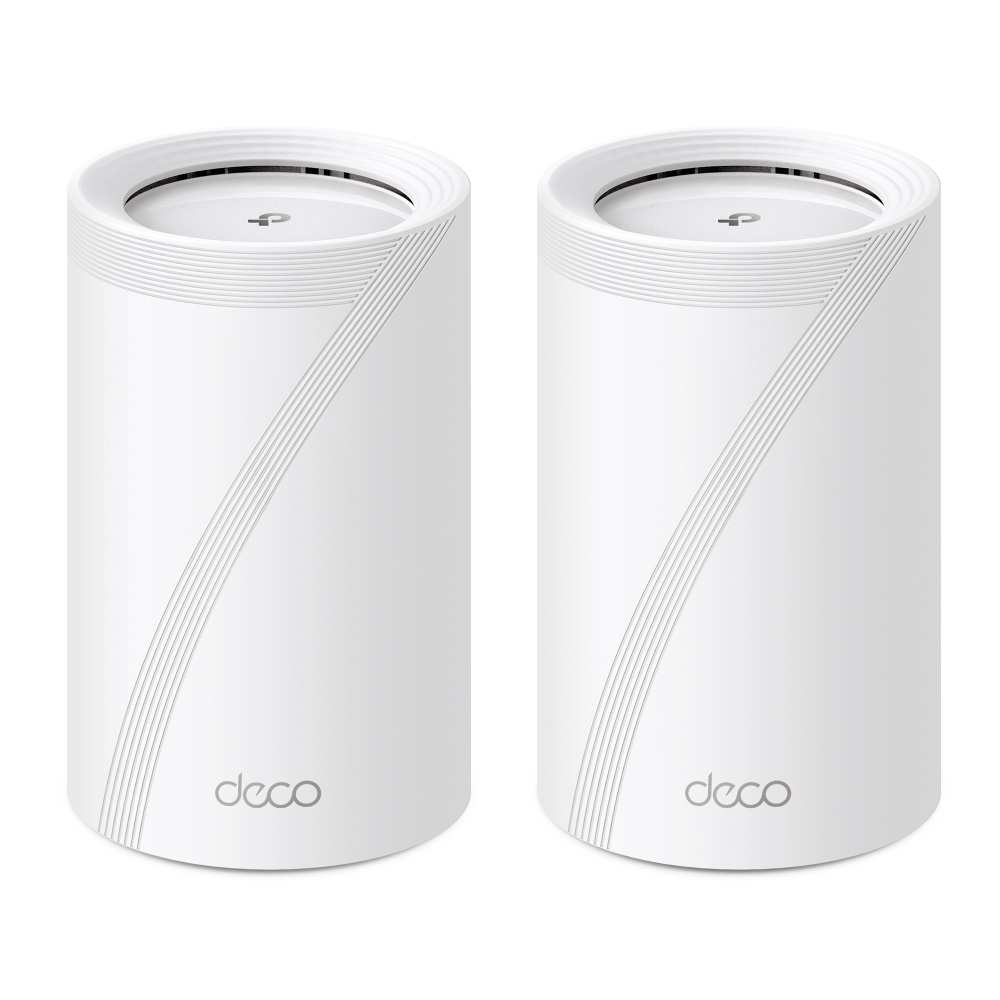

TP-Link DECO BE65 Whole Home Mesh Wi-Fi 7 System (Dual Pack)

• 9214Mbps Tri-Band Wi-Fi: 5760Mbps (6GHz) + 2880Mbps (5GHz) + 574Mbps (2.4GHz). (1)
• 2.5Gbps Wired Connections: 4× 2.5Gbps ports ensure max flexibility and boosted throughput. (4)
• Wireless and Wired Combined Backhaul: Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
• Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability. (3)
• 320MHz Channels: Double the bandwidth and enables ...many more simultaneous transmissions at the fastest possible speeds. (3)
• Works on the 6GHz Band: Minimizes congestion with greenfield spectrum, delivering robust high-speed connections. (3)
• TP-Link HomeShield: Provides comprehensive network protection, robust parental controls, and real-time IoT security. (5)
• Universal Compatibility: Backward compatible with all Wi-Fi generations and works with any internet service provider (ISP) and modem. (9)

True Whole Home
Multi-Gigabit Mesh Wi-Fi
BE9300 Whole Home Mesh Wi-Fi 7 System
TP-Link DECO BE65 Features:
Wi-Fi 7: Wi-Fi Like Never Before.
– Wi-Fi 7 has arrived with jam-dropping performance – offering accelerated throughput, lower latency, stronger anti-jamming and higher efficiency. Join the league of pros and experience the sheer performance of the next generation Wi-Fi.
a) 3.6 x Faster Wi-Fi: than Wi-Fi 6E Mesh. (7)
b) 4x Lower Latency: For Smooth Video and Gaming. (8)
c) Higher Capacity: Connects over 200 Devices. (1)
Unrivaled Wi-Fi 7 Speed: up to 9214Mbps.
– Wi-Fi 7 unleashes the full potential of 4K-QAM and the 6GHz band with up to 320MHz channels, delivering unprecedented Wi-Fi speeds up to 9214Mbps. The new 6GHz band provides exceptional bandwidth congestion-free channels. (1)
Whole Home Multi-Gigabit Connectivity: TP-Link DECO BE65 Speed Heatmap.
– 2.5Gbps Wired Backhaul: Most of the home is covered by 2.5Gbps high-speed connections. The edge of the house also remained at around 2Gbps. This builds the true whole home Multi-Gigabit mesh Wi-Fi. (6)
– Wireless Backhaul: The 1st-floor TP-Link DECO BE65 remains the same as with a wired backhaul. But due to the walls and ceiling between the two floors, the center of the other TP-Link DECO BE65 receives at least 1.5Gbps speeds. (6)
Ultra-Fast 2.5Gbps Wired Performance:
– 4x 2.5Gbps ports maximize home internet speeds with up to 2.5x the wired speed of a typical Gigabit Ethernet port. The additional USB3.0 port makes TP-Link BE65 an ideal solution for future-proofing your home network. Connect your favorite wired devices to TP-Link DECO BE65 and get impressed. (4)
The Ultimate Backhaul: Stronger and More Flexible.
– Through our self-developed technology, TP-Link DECO BE65 can connect a wireless and wired backhaul with each unit simultaneously. What’s more, with the latest Wi-Fi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.
HomeShield: Smart Security for Smart Living.
– HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield, safer internet experiences bring more happiness to your smart living.
– Network Protection: Simply configure your gateway and achieve whole home network security. HomeShield examines your network by scanning and identifying potential risks, stopping them in their tracks before they harm your network. (5)
– Parental Controls: Parental Controls protect your kids, while helping them maintain healthy digital habits. Parents can set app blocking, web filtering, YouTube restrictions, SafeSearch, and online time limits to keep kids safe while they’re having fun online. (5)
– Maintain Protection Away from Home: Devices remain secure everywhere with devices security app. And through KidShield, parents can monitor their kids’ locations and set geofencing. This way, kids stay digitally protected even on the go. (5)
VPN Clients and Server Supported:
– Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. You can create different VPN connection types, including OpenVPN, PPTP, L2TP/IPSec VPN. Besides, DECO can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Private IoT Network for More Security:
– Set up a separate Wi-Fi for IoT devices and overlay HomeShield and advanced WPA3 encryption (5) to better protect the security of your home network and IoT devices.
Seamless AI-Driven Mesh: Uninterrupted Streaming when Moving Between Rooms.
– DECO Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal Wi-Fi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds. (2)
a) Seamless Roaming with One Wi-Fi Name
b) Sophisticated Algorithms
c) Seamless AI-Driven Mesh
d) Customized Wi-Fi
Simple. Easy. Yet Powerful.
– Setup and manage your network anytime and anywhere on the friendly TP-Link DECO app. In just three easy steps your entire home can be blanketed in strong and reliable Wi-Fi.
1/ CONNECT: to a modem and power on both.
2/ DOWNLOAD: and launch the DECO app.
3/ CONFIGURE: by following the in-app instructions.
Easy Management:
– Manage your Wi-Fi at home or away on the DECO app. See every connected device, prioritize your own, and set up a guest network.
Voice Control:
– Use an Amazon Alexa or Google Assistant-enabled device to control TP-Link DECO BE65 with just your voice. (13) (14) (15)
All DECOs Work Together:
– TP-Link DECO BE65 is compatible with every other DECO model to form a Mesh network. Expand Mesh Wi-Fi coverage anytime by adding more DECOs. Notes:
1/ Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 6GHz, 5GHz, and 2.4GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
2/ Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
3/ Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. The 320MHz bandwidth is only available on the 6GHz band. Simultaneously, the 160MHz and 240MHz bandwidths or the 320MHz bandwidth might not be available on the 5GHz band or the 6GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320MHz compared to 160MHz for Wi-Fi 6 mesh.
4/ 2.5Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
5/ HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. Some features are under development and will be supported with subsequent software updates.
6/ The test was conducted in a 4,600 sq. ft. two-story villa with 5 bedrooms with an interior made up of drywall. The TP-Link DECO BE65 was tested with 2×2 MLO-compatible clients. Home networking performance may vary, depending on the network’s speeds, fiber or Ethernet access, Wi-Fi interference, obstacles, walls, areas, and clients.
7/ 3.6x faster Wi-Fi speed refers to the theoretical speeds of Wi-Fi 7 clients when connected to TP-Link DECO BE65 compared with a 2×2 MIMO Wi-Fi 6 or Wi-Fi 6E mesh. Wi-Fi 7 clients need to support Multi-Link Operation (MLO) and the 6GHz band to reach up to 8.6Gbps when connected to the 5GHz and 6GHz bands of TP-LinkDECO BE65 simultaneously. 2×2 MIMO Wi-Fi 6 and Wi-Fi 6E mesh may only provide 2402Mbps on the 5GHz or 6GHz bands separately.
8/ 4x Lower Latency refers to the latency improvement of Wi-Fi 7 mesh compared to Wi-Fi 6/6E mesh, based on laboratory test data. The test conditions had the same 5GHz or 6GHz single-frequency wireless interference and tested the maximum latencies of Wi-Fi 7 clients (with MLO turned on) connecting to the 5GHz and 6GHz bands of TP-Link DECO BE65 (with MLO turned on) simultaneously and to the 5GHz or 6GHz bands of a Wi-Fi 6/6E mesh (without the MLO function).
9/ Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
10/ Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
11/ This DECO may not support all the mandatory features as ratified in IEEE 802.11be specification.
12/ Further software upgrades for feature availability may be required.
13/ Google and Google Home are trademarks of Google LLC.
14/ Compatible with Alexa and Google Assistant. User experience is dependent on the connected device’s specifications.
15/ Amazon Alexa and Google Assistant are not available in all languages and countries. Specifications:
WIRELESS
– Standards: Wi-Fi 7 (IEEE 802.11be/ax 6GHz; IEEE 802.11be/ax/ac/n/a 5GHz; IEEE 802.11ax/n/b/g 2.4GHz)
– Wi-Fi Speeds: BE9300
a) 6GHz: 5760Mbps (802.11be)
b) 5GHz: 2880Mbps (802.11be)
c) 2.4GHz: 574Mbps (802.11ax)
– Wi-Fi Range (Broader Whole Home Coverage):
a) TP-Link Mesh Technology: Optional Ethernet backhaul work together to link Deco units to provide seamless coverage.
b) AI-Driven Mesh: Intelligently learns the network environment to provide ideal Wi-Fi unique to your home.
c) 4x High-Performance Antennas (Internal): Multiple antennas form a signal-boosting array to cover more directions and large areas.
d) Tri-Band: A newly-opened 6GHz band brings more bandwidth and faster speeds
– Wi-Fi Capacity: Very High
1/ Tri-Band: Distribute devices to different bands for optimal performance.
2/ 2×2 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients.
3/ OFDMA: Simultaneously communicates with multiple Wi-Fi 7 clients.
4/ 6 Streams: More than enough bandwidth for connected devices.
– Working Modes: Router Mode, Access Point Mode
– Advanced Functions: Multi-Link Operation (MLO), 320MHz Channel, 4K-QAM, Multi-RUs, Works with Alexa and Google Assistant (13) (14) (15)
SECURITY
– Network Security:
a) SPI Firewall
b) Access Control
c) HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
– Guest Network:
a) 1 x 6GHz Guest Network, 1 x 5GHz Guest Network, 1 x 2.4GHz Guest Network
b) Effective Time, Bandwidth Control
– VPN Server: OpenVPN Server, PPTP VPN Server, L2TP/IPSec VPN Server
– VPN Client: OpenVPN Client, PPTP VPN Client, L2TP/IPSec VPN Client
– Wi-Fi Encryption: WPA-Personal, WPA2-Personal, WPA3-Personal
HARDWARE
– Ethernet Ports: 4 x 2.5Gbps (Per Deco Unit, Supports WAN/LAN auto-sensing)
– USB Support: 1 x USB3.0 Port (FTP Server, Media Server, Apple Time Machine, Samba Server)
– Buttons: 1 x Reset Button, 1 x WPS
SOFTWARE
– Advanced Features: Reboot Schedule, TAPO/Kasa Onboarding, IoT network & Device Isolation, Static Routing Function, Node/Band Connection Preference
– Protocols: IPv4, IPv6
– Service Kits: HomeShield
– Parental Controls:
a) HomeShield Parental Controls: Youtube Restriction, SafeSearch, Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports.
– WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
– Quality of Service: HomeShield QoS (QoS by Device)
– Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS
– NAT Forwarding: Port Forwarding, UPnP
– IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
– DHCP: Address Reservation, DHCP Client List, Server
– DDNS: TP-Link
– Management: DECO App
OTHERS
– Certifications: CE, FCC, RoHS
– Operating Temperature: 0 Degree Celsius – 40 Degree Celsius
– Storage Temperature: -40 Degree Celsius – 60 Degree Celsius
– Operating Humidity: 10% – 90% RH
– Storage Humidity: 5% – 90% RH
PHYSICAL
– Dimensions (W×D×H): 10,75 x 10,75 x 17,6cm What’s in the box
2 x TP-Link DECO BE65 units
1 x RJ45 Ethernet cable
2 x Power adapters
1 x Quick Installation Guide
