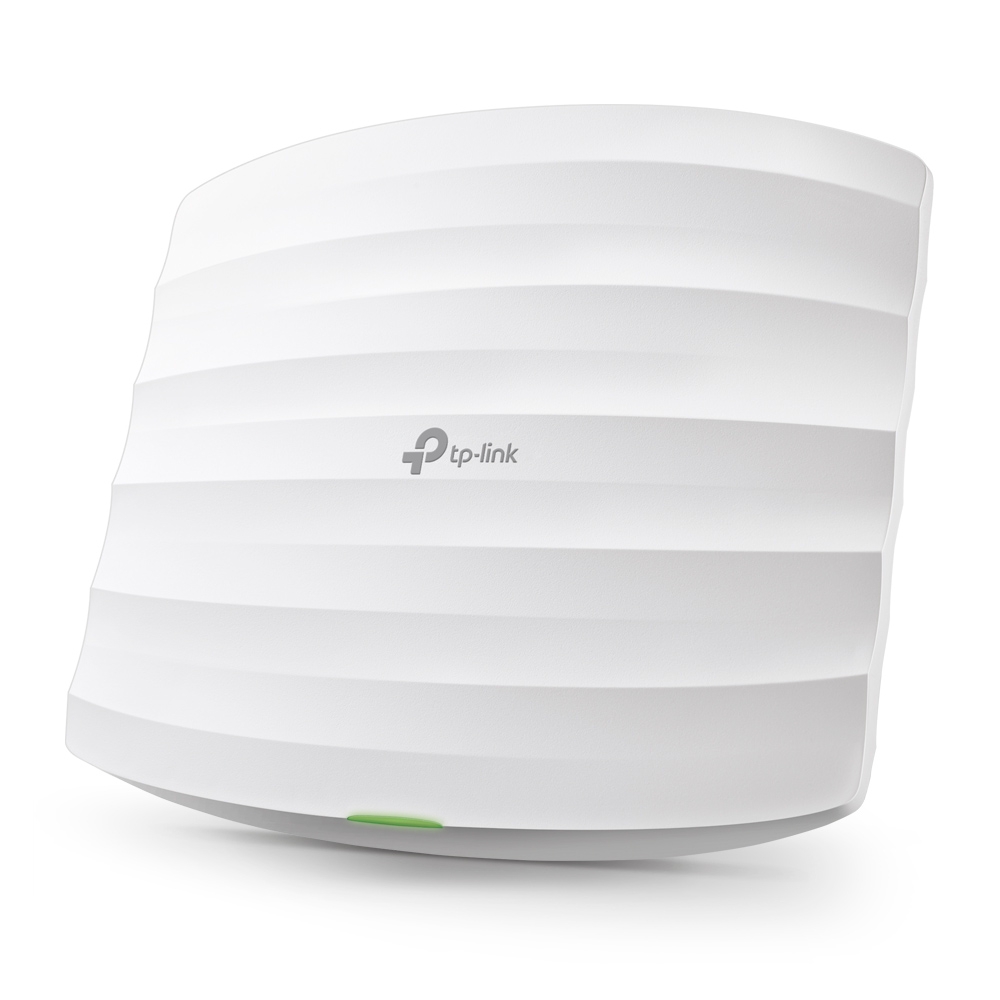

TP-Link EAP223 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

EAP223
– Fast Dual-Band Wi-Fi: Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds. (1)
– Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) (2), Centralized Cloud Management, and Intelligent Monitoring.
– Centralized Management: Cloud access and Omada app for ultra-convenience and easy management.
– Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations. (3)
– PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations.
– ...Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
– Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies. An Affordable Business-Class
802.11ac MU-MIMO Wi-Fi Solution
TL-EAP223 Features:
Superior Wi-Fi Speeds with MU-MIMO Technology:
– Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350Mbps to multiple devices at the same time. (1)
Omada SDN—Smarter Cloud Solution for Business Networking:
– Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle-Free Centralized Cloud Management:
– 100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Secure Guest Network with Facebook Wi-Fi and SMS Authentication:
– The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business. (1)
Multiple PoE Options for Easy Installation:
– EAP223 supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible.
Easy Management with the Omada App:
– Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet. Notes:
(1) Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
(2) Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.
(3) Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods. Specifications:
HARDWARE FEATURES
– Interface: 1 x Gigabit Ethernet (RJ-45) Port (Support IEEE802.3af/at PoE and Passive PoE)
– Physical Security Lock: Yes
– Button: Reset
– Power Supply:
1/ 802.3af/at PoE
2/ 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
– Power Consumption: EU: 9.7W; US: 12.1W
– Antenna Type: 3 Internal Omni
a) 2.4GHz: 4dBi
b) 5GHz: 5dBi
– Mounting: Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11ac/n/g/b/a
– Frequency: 2.4GHz and 5GHz
– Signal Rate:
a) 5GHz: Up to 867Mbps
b) 2.4GHz: Up to 450Mbps
– Wireless Functions:
a) Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)
b) Enable/Disable Wireless Radio
c) Automatic Channel Assignment
d) Transmit Power Control (Adjust Transmit Power on dBm)
e) QoS(WMM)
f) Seamless Roaming (3)
g) Omada Mesh (3)
h) Band Steering
i) Load Balance
j) MU-MIMO
k) Airtime Fairness
l) Beamforming
m) Rate Limit
n) Reboot Schedule
o) Wireless Schedule
p) Wireless Statistics based on SSID/AP/Client
– Wireless Security:
a) Captive Portal Authentication (3)
b) Access Control
c) Wireless Mac Address Filtering
d) Wireless Isolation Between Clients
e) SSID to VLAN Mapping
f) Rogue AP Detection
g) 802.1X Support
– Transmission Power:
1/ CE:
a)
b)
2/ FCC:
a)
b)
MANAGEMENT
– Omada App: Yes
– Centralized Management:
a) Omada Hardware Controller OC300
b) Omada Hardware Controller OC200
c) Omada Software Controller
d) Omada Cloud-Based Controller
– Cloud Access: Yes, through OC300, OC200, Omada Software Controller, Omada Cloud-Based Controller
– Email Alerts: Yes
– LED ON/OFF Control: Yes
– Management MAC Access Control: Yes
– SNMP: v1,v2c
– System Logging Local/Remote Syslog: Local/Remote Syslog
– SSH: Yes
– Web-based Management: HTTP/HTTPS
– L3 Management: Yes
– Multi-site Management: Yes
– Management VLAN: Yes
– Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
– Certification: CE, FCC, RoHS
– System Requirements: Microsoft Windows XP/Vista/7/8/10/11; Linux
– Environment:
a) Operating Temperature: 0 Degree Celsius – 40 Degree Celsius
b) Storage Temperature: -40 – 70 Degree Celsius
c) Operating Humidity: 10 – 90% RH non-condensing
d) Storage Humidity: 5 – 90% RH non-condensing What’s in the box
1 x TL-EAP223 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
1 x Mounting Kits
1 x Installation Guide
