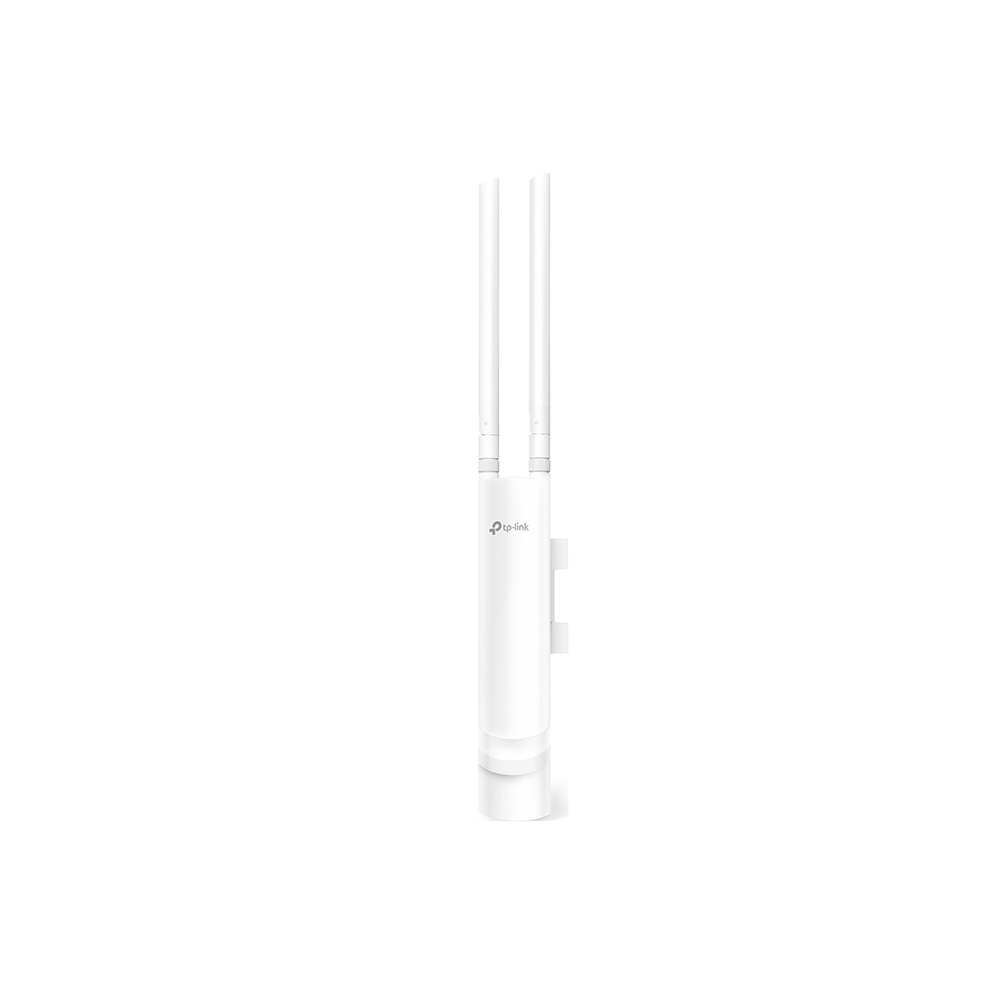

TP-LINK EAP225 AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

EAP225-Outdoor
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point Durable, weatherproof enclosure for outdoor Wi-Fi applications
Up to 1200Mbps with 2×2 MIMO technology
High transmission power and high gain antennas provide a long-range coverage area
Free Omada Controller software enables administrators easily manage hundreds of EAPs
Captive portal provides a convenient method for guest authentication
Facebook Wi-Fi and SMS anthentication help to boost your business
802.3af/Passive PoE (PoE Adapter Included) compatible and ...simple mounting design allow for flexible deployment and convenient installation Gigabit Wi-Fi Speeds with MU-MIMO Technology
EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment. Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors. Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands. Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+ at 2.4GHz and 300m+ at 5GHz in outdoor settings. Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
4KV Lightning Protection and 15KV ESD Protection
No Ingress of Dust
Water Proof Enclosure Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be – efficient and intuitive. Specifications
Hardware Features
Interface : Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button : Reset
Power Supply : 802.3af/A PoE , 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption: 10.5W
Dimensions ( W x D x H ) : 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna : 2.4GHz: 2 x 3dBi, 5GHz: 2 x 4dBi
Weatherproof Enclosure : IP65
Mounting : Pole/Wall Mounting (Kits included)
Hardware Watch Dog : Yes Wireless Features
Wireless Standards : IEEE 802.11a/b/g/n/ac
Frequency : 2.4GHz, 5GHz Signal Rate :
802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Functions :
Multiple SSIDs?Up to 16 SSIDs, 8 for each band?
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control ?Adjust Transmit Power on dBm?
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client Wireless Security :
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support Transmission Power :
CE:<20dBm(2.4GHz,EIRP),<25dBm(5GHz,EIRP)
FCC:<23dBm(2.4GHz),<22dBm(5GHz) Management
Omada App : Yes
Omada Cloud Controller : Yes
Omada Controller Software : Yes
Cloud Access : Yes
Email Alerts : Yes
Management MAC Access Control : Yes
System Logging Local/Remote Syslog : Yes
SSH : Yes
Web-based Management : Yes
L3 Management : Yes
Multi-site Management : Yes
Management VLAN : Yes Others
Certification : CE?FCC?RoHS Environment :
Operating Temperature: -30?~70? (-22?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing What’s in the box
1 x AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
1 x EAP225-Outdoor
1 x Power Adapter
1 x Mounting Kits
1 x Installation Guide
