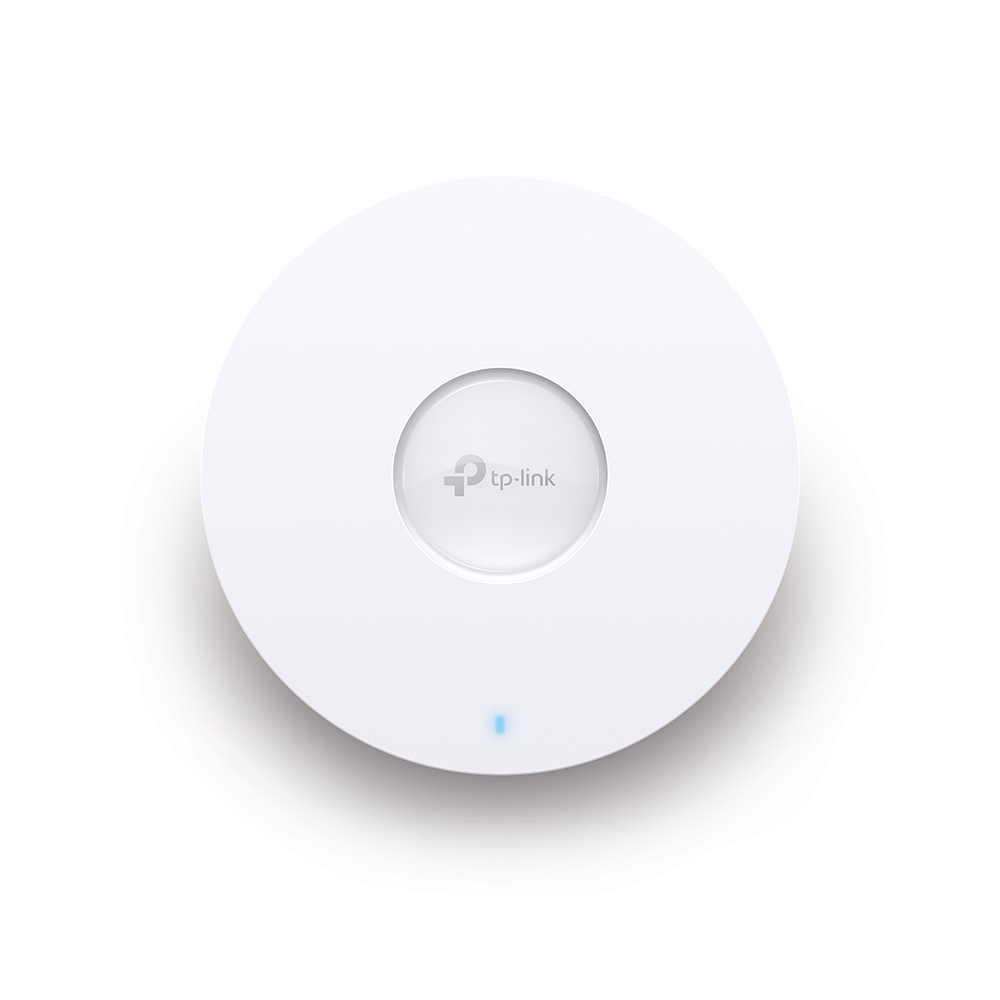

Tp-Link EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point

Easily Upgrade to Business WiFi 6 Network
AX1800 Ceiling Mount WiFi 6 Access Point Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds. High-Efficiency WiFi 6: More connected devices can enjoy faster speeds. Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app. Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations. Omada Mesh: Enables wireless connectivity between access points for extended ...range and flexible deployment. PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations. Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies. AX1800 WiFi 6 Speed 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz High-Efficiency WiFi 6
More connected devices can enjoy faster speeds Centralized Cloud Management
Manage the whole network locally or from the cloud Seamless Roaming
Uninterrupted streaming when moving between APs Omada Mesh Technology
More flexible and convenient wireless deployment PoE+ Powered
Supports both DC and 802.3at PoE+ for flexible installations Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity. Superior WiFi 6 Speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5.† Every application feels more fluid with drastically improved Wi-Fi speeds. Seamless Integration into Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted. Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal. Easy to Mount with Refined Industrial Design
1 Push up
2 Simply rotate to lock
Ceiling /Wall Mounting (Kits included) Boosted Network Security and Efficiency Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management. Guest Network with Facebook Wi-Fi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page. WPA3 for Worry-Free Open Public Networks
With advanced enterprise security and Enhanced Open™, WPA3 provides more data security for previously unsecured and open WiFi hotspots. Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections. Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks Airtime Fairness
Increases average network throughput in heavily congested environments SPECIFICTIONS HARDWARE FEATURES Interface
1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) Button
Reset Power Supply
• 802.3at PoE
• 12 V / 1 A DC Power Consumption
• EU: 12.8 W (For PoE); 10.8 W (for DC)
• US: 13.9W (For PoE); 11.8 W (for DC) Dimensions ( W x D x H )
9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) Antenna Type
Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi Mounting Ceiling /Wall Mounting (Kits included) WIRELESS FEATURES Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP) • FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz) MANAGEMENT Omada App
Yes Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller Cloud Access
Yes (Through OC300, OC200, or Omada Software Controller)
E
mail Alerts
Yes LED ON/OFF Control
Yes Management MAC Access Control
Yes
SNMP v1, v2c, v3 System Logging Local/Remote Syslog
Local/Remote Syslog SSH
Yes Web-based Management
HTTP/HTTPS L3 Management
Yes Multi-site Management
Yes Management VLAN
Yes OTHERS Certification
CE, FCC, RoHS System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux Environment
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing What’s in the box
1x EAP610
1x Power Adapter
1x Ceiling/Wall Mounting Kits
1x Installation Guide
