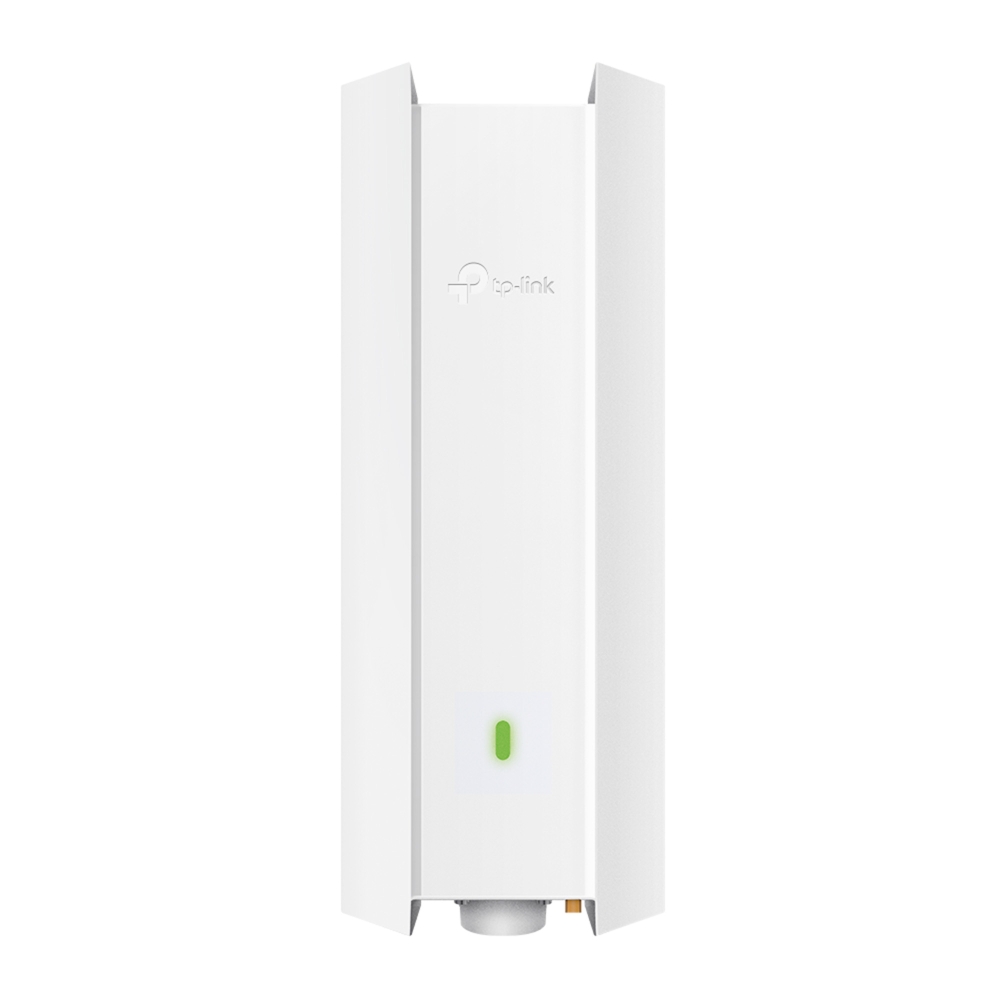

TP-Link EAP650-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point

• Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.1
• Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
• 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.2
• Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
• <...strong>Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.3
• Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.3
• PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
• Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.3

HARDWARE FEATURES Interface 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) Button Reset Power Supply 802.3at PoE 48V Passive PoE (PoE Adapter Included) Power Consumption EU: 12.5W (802.3at PoE or Passive PoE) US: 14.7W (802.3at PoE or Passive PoE) Dimensions ( W x D x H ) 280.4×106.5×56.8 mm (without antenna & mounting kit) Antenna 2.4 GHz: 2× 4 dBi 5 GHz: 2× 5 dBi Weatherproof Enclosure IP67 Mounting Pole/Wall Mounting (Kits included) WIRELESS FEATURES Wireless Client Capacity 250+6 Concurrent Clients 250+6 Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz, 5 GHz Signal Rate 802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160) 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Transmit Power CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz) Wireless Functions 1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) MU-MIMO Omada Mesh3 Seamless Roaming3 Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Wireless Security Captive Portal Authentication3 Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise MANAGEMENT Omada App Yes Centralized Management Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Cloud Access Yes, through Omada Cloud-Based Controller OC300 OC200 Omada Software Controller Email Alerts Yes Management MAC Access Control Yes SNMP v1, v2c System Logging Local/Remote Syslog Yes SSH Yes Web-based Management Yes L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller OTHERS Certification CE, FCC, RoHS Package Contents Access Point EAP650-Outdoor Passive PoE Adapter Power Cord Mounting Kits Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment Operating Temperature: -30-70 (-22-158 ) Storage Temperature: -40-70 (-40-158 ) Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensing What’s in the box
1x Access Point EAP650-Outdoor
1x Passive PoE Adapter
1x Power Cord
1x Mounting Kits
1x Installation Guide
