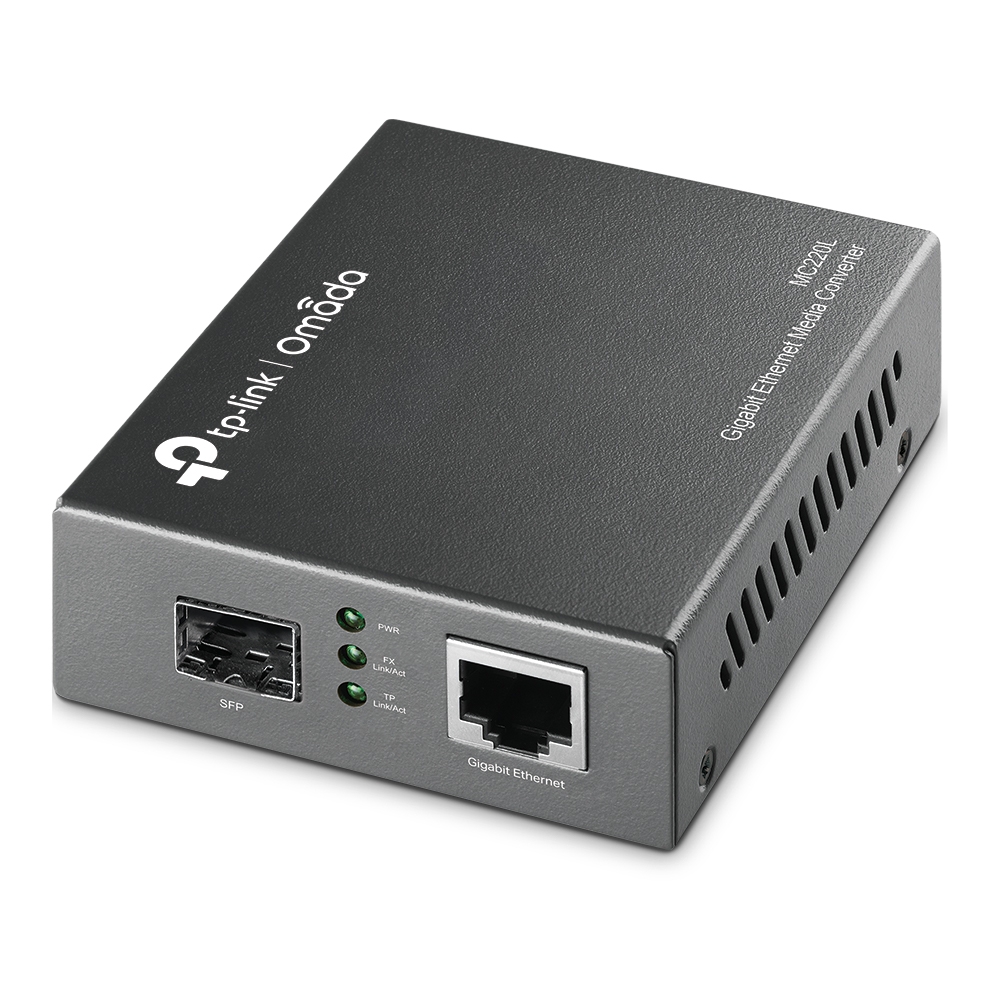

TP-LINK Gigabit SFP Media Converter

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fibre cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fibre and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs 19system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fibre optic distances utilizing multi-mode fibre up to 0.55 kilometers and 10 kilometers when utilizing single-mode fibre.

Features:

• Complies with IEEE 802.3ab and IEEE 802.3z
• FX port supports hot-swappable
• Extends fibre distance up to 0.55km for multi-mode fibre and 10km for single-mode fibre

What’s in the box
1 x Media Converter,
1 x Power Adapter,
1 x User Guide
