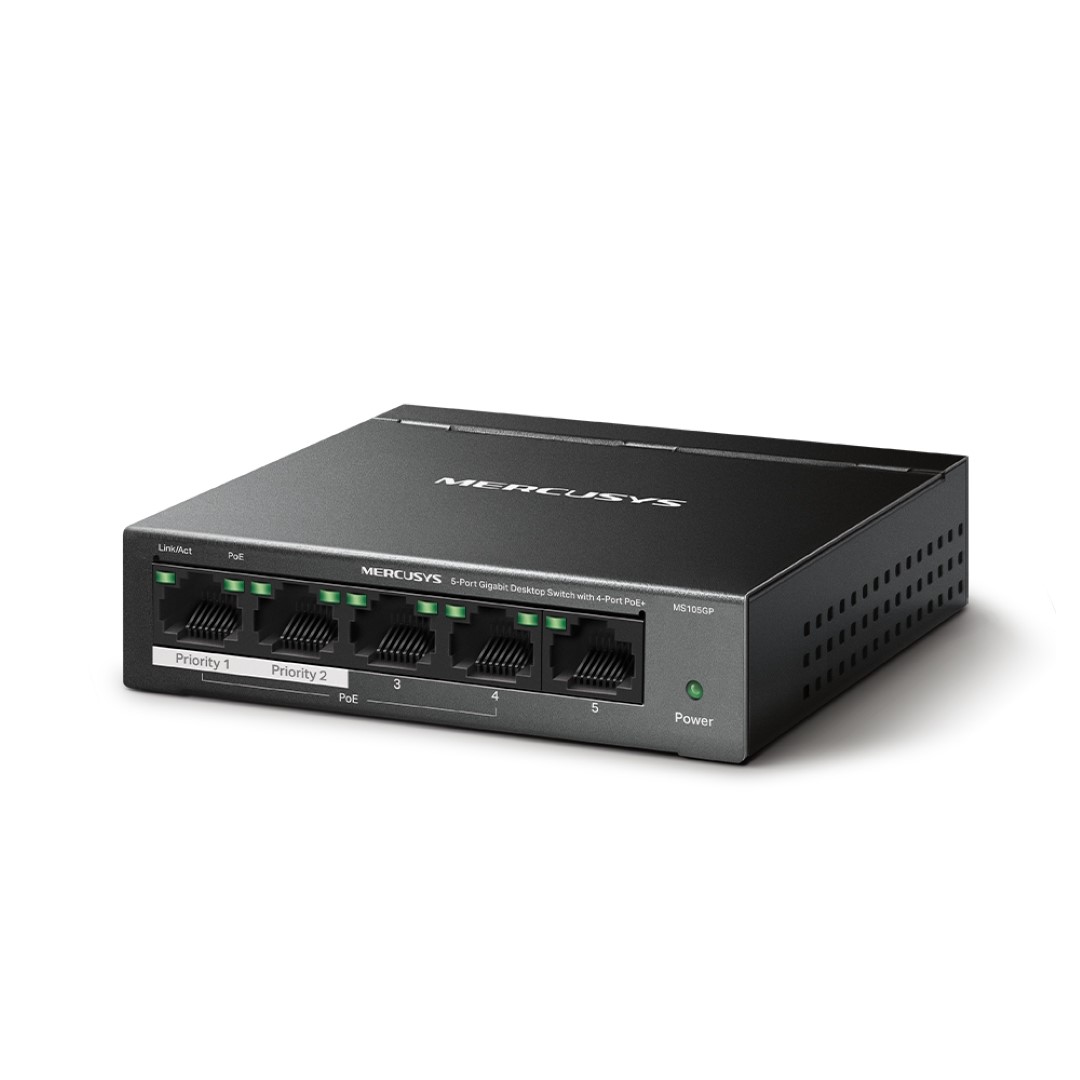

TP-Link Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Full Gigabit Ports:
5× 10/100/1000 Mbps RJ45 ports
Two Cables in One:
With four PoE+ ports, transfers data and power on one single cable
High Power PoE+:
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE portsx
Long-Range up to 250 m:
Increases PoE transmission distance to 250 m by Extend Modex
Isolation Mode:
One click to divide traffic for specific ports for stability and security
Compliant with ...Powered Devices:
Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing:
Allows for efficient heat dissipation and long network life
Plug and Play:
Simple to use and saves time and effort 4 PoE+ Ports (65 W Budget) for Network Deployment:
All five ports of the MS105GP are gigabit ports, with four PoE+ ports (1-4). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budgetx for the 4× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

• Long-Range up to 250 m with Extend Mode:
  Extend Mode increases PoE transmission distance to 250 m. MS105GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
• Traffic Separation:
  With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection.
• Port Prioritization:
  Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
• Plug and Play:
  MS105GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
• Durable and Silent:
  MS105GP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

PoE Ports:
RJ45Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W Interfaces:
5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX External Power Supply:
External Power Adapter (Output: 53.5V/1.31A) Standards and Protocols:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD Data Rates:
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex Mac Address Table:
2K Max Power Consumption:
3.13W 220 V / 50 Hz, no PD connected)
75.15W 220 V / 50 Hz, with 65W PD connected) What’s in the box
5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
Power Adapter
Quick Installation Guide
