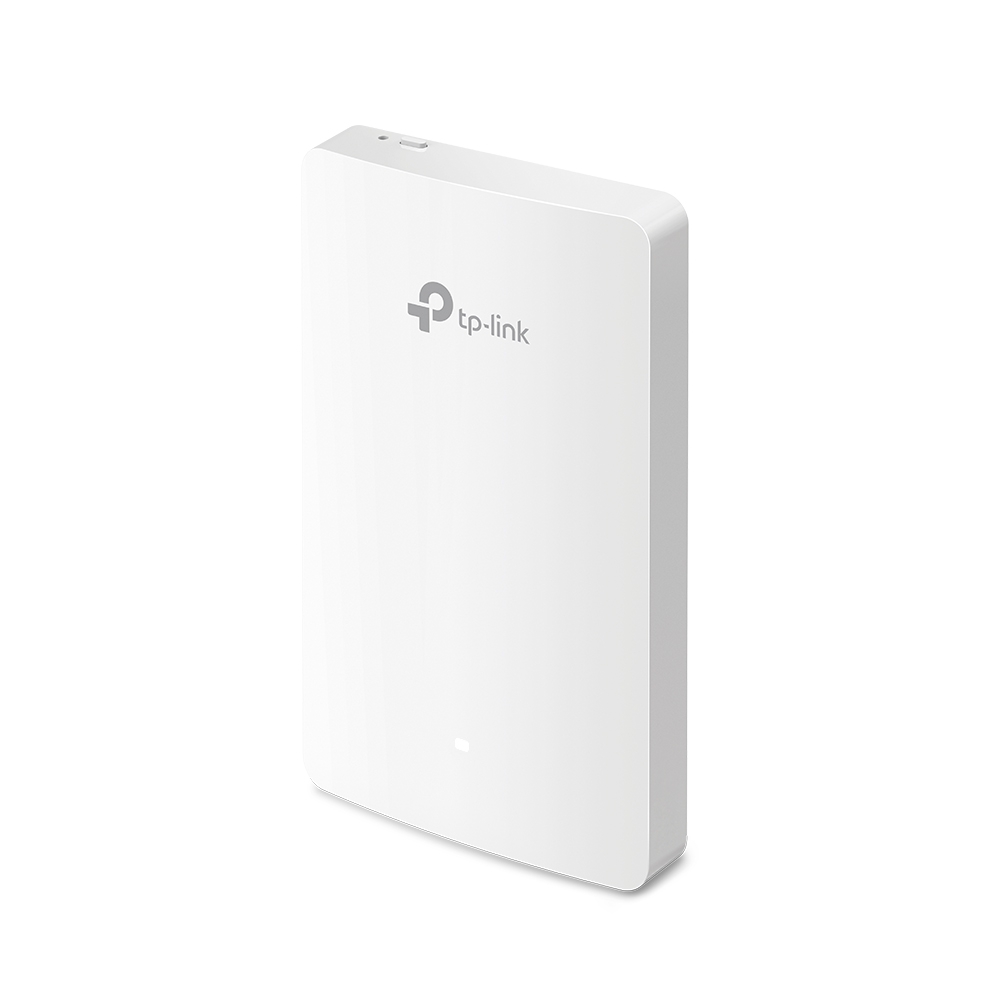

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

EAP235-Wall New
Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories, and any other environments
Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment
Interface: 4 Gigabit Ethernet ports (1uplink + 3downlink), with one downlink port supporting PoE pass-through to provide power for wired device
High Capacity: Dual-Band 802.11...ac Wave 2 with 2×2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
Cloud management and Omada app supported for ultra-convenience and easy management
Enterprise-class Wi-Fi security helps to decrease network security threats
Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology 11ac Wi-Fi for the Best Room-by-Room Connection – Omada EAP235-Wall Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal and providing corner to corner coverage. MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts your network speed by up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless bands, it provides greater compatibility to connect varieties of devices. Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices, and school dormitories, to deliver powerful Wi-Fi without clashing with the room. Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go. Quick, Simplified Installation
EAP235-Wall is easy to install, so the extra cost, time, or professional knowledge are completely unnecessary. Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1uplink + 3downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables. Specifications
Hardware Features Interface Uplink: 10/100/1000 Mbps Ethernet Port1
Downlink: 10/100/1000 Mbps Ethernet Port3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.) Physical Security Lock: Yes
Button: Reset
Power Supply: 802.3af/802.3at PoE
Power Consumption: 9.8 watts /24.4 watts (PoE Out Included)
Dimensions: 143 × 86 × 20mm (5.6 × 3.4 × 0.8 in)
Antenna: 2 Dual-Band Antennas
2.4GHz: 24dBi
5GHz: 24dBi
Mounting: Wall Plate Mounting Wireless Features
Wireless Standards: IEEE 802.11a/b/g/n/ac
Frequency: 2.4GHz and 5GHz
Signal Rate: 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps Wireless Functions
16 SSIDs?Up to 8 SSIDs on each band?
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Band Steering
Beamforming
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port-based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise Transmission Power
CE:
?20 dBm (2.4 GHz, EIRP)
?23 dBm (5 GHz, EIRP)
FCC:
?21 dBm (2.4 GHz)
?21 dBm (5 GHz) Management
Omada Cloud Access: Yes
Omada App: Yes
Omada Cloud Controller: Yes Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller Omada Controller Software: Yes
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes Others
Certification: CE, FCC, RoHS
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Environment:
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing What’s in the box
1 x Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
1 x EAP235-Wall
1 x Installation Guide
1 x Mounting Screw
